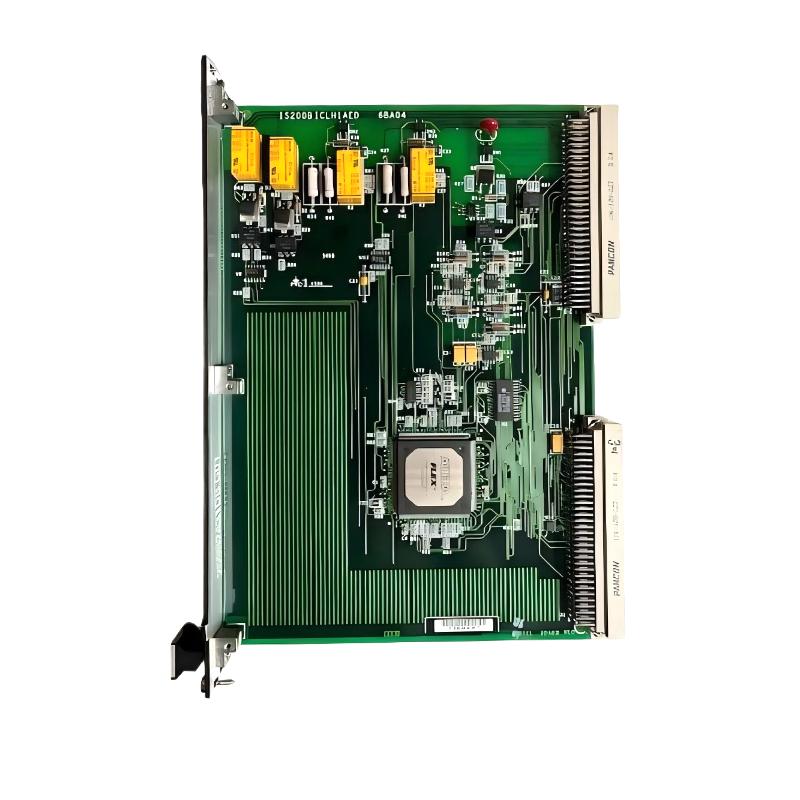

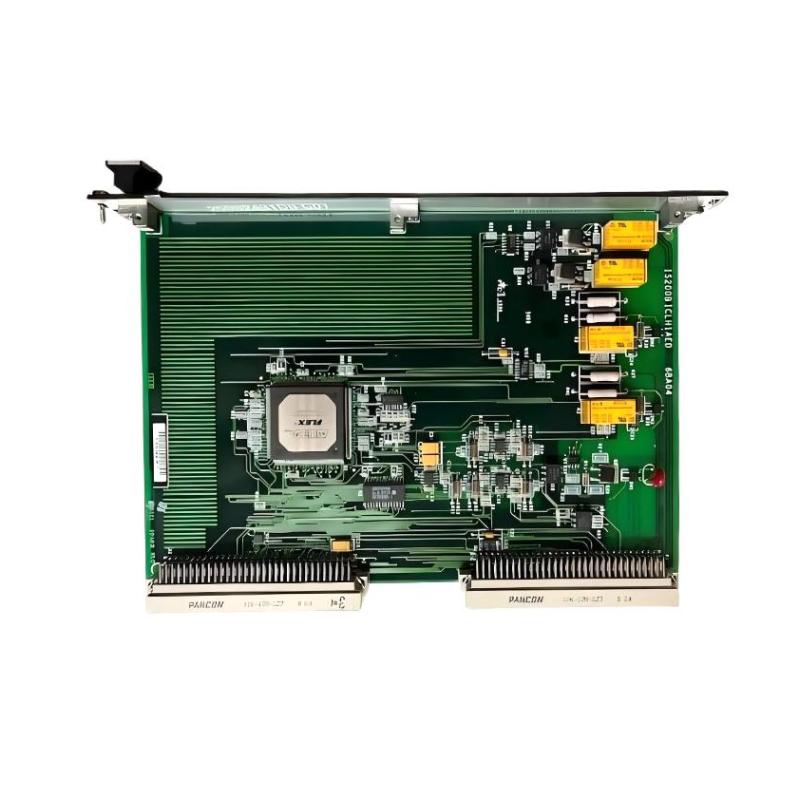

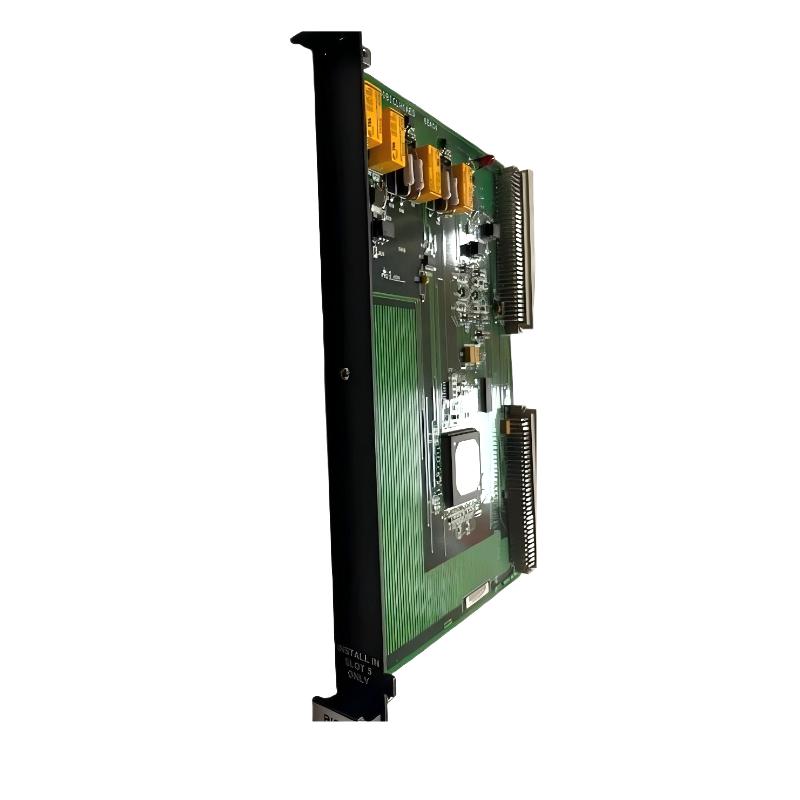

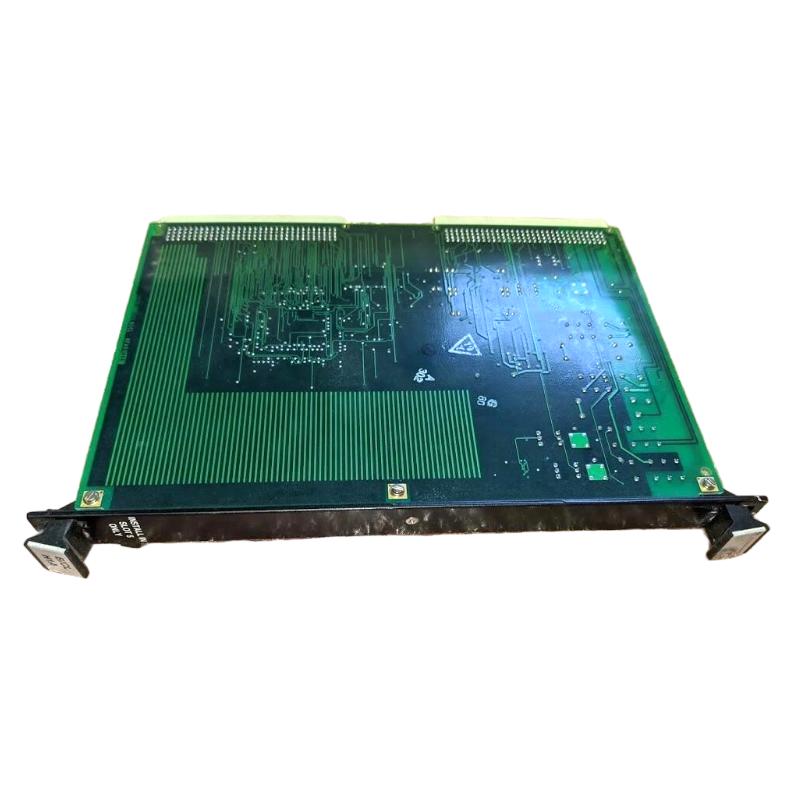

The GE IS200BICLH1BBA is a Bridge Interface Board module designed for the GE Speedtronic Mark VI turbine control system. It acts as a critical interface between the Bridge Personality Interface (BPIA/BPIB) boards and the Innovation Series drive control system, enabling accurate coordination between control logic and power conversion hardware.
This module is widely used in industrial gas turbines, steam turbines, and high-power drive systems, where precise synchronization between control signals and power electronics is essential for stable and efficient operation.
Technical Specifications
The IS200BICLH1BBA is engineered for high-reliability signal interfacing and turbine control coordination.
| Parameter | Specification |
|---|---|
| Module Type | Bridge Interface Board |
| Series | GE Speedtronic Mark VI |
| Function | Interface between bridge personality boards and drive control system |
| System Role | Power drive communication & control coordination |
| Input Signals | Control signals from BPIA/BPIB modules |
| Output Signals | Drive control signals to Innovation Series drive |
| RTD Inputs | 4 × temperature sensor inputs |
| Control Logic | CPU-driven programmable logic device |
| Memory | 1024-bit serial memory (board ID & revision data) |
| Relays | 4 onboard relays |
| Power Components | Bridge rectifiers, ICs, capacitors, resistors, transistors |
| Backplane Interface | P1 & P2 VME rack connectors |
| Slot Requirement | Must be installed in specific VME slot (slot 5 warning) |
| Protection | Industrial conformal coating + electrical shielding |
| Operating Temperature | -20°C to +60°C |
The module is designed for tight integration with turbine monitoring functions such as speed, temperature, and fan control, ensuring stable system operation under demanding conditions.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (L × W × H) | 160 × 160 × 120 mm |
| Weight | ~0.8–0.9 kg |
Recommended Related Models
- IS200BPIAG1AEB – bridge personality interface module
- IS200BICLH1AFE – interface controller board variant
- IS200DRLYH1BBB – relay/gate drive interface module
- IS200DSPXH1 – Mark VI control processor board
- GE Mark VIe system upgrade platforms
