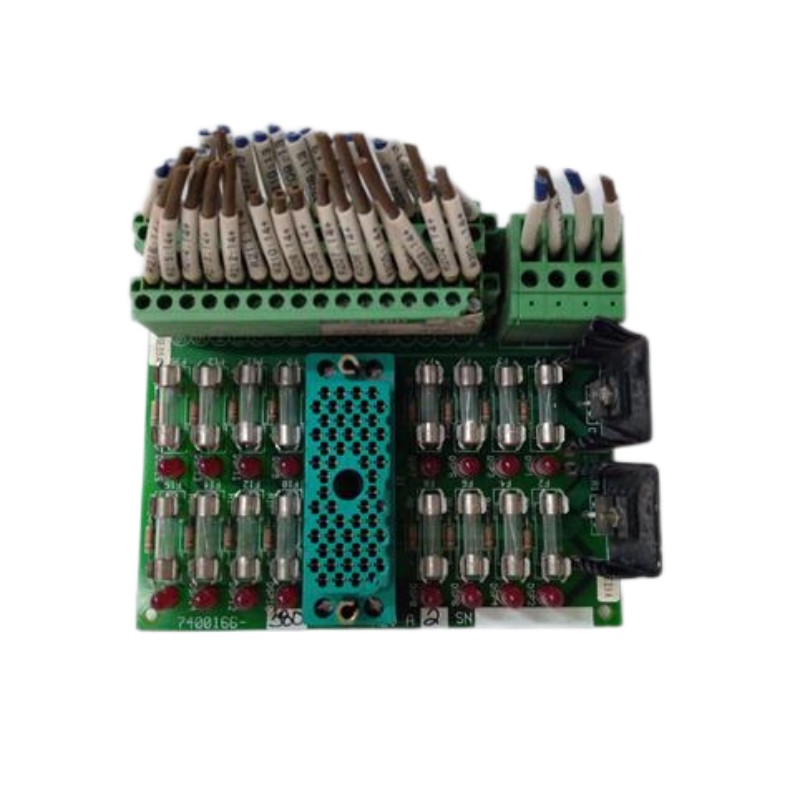

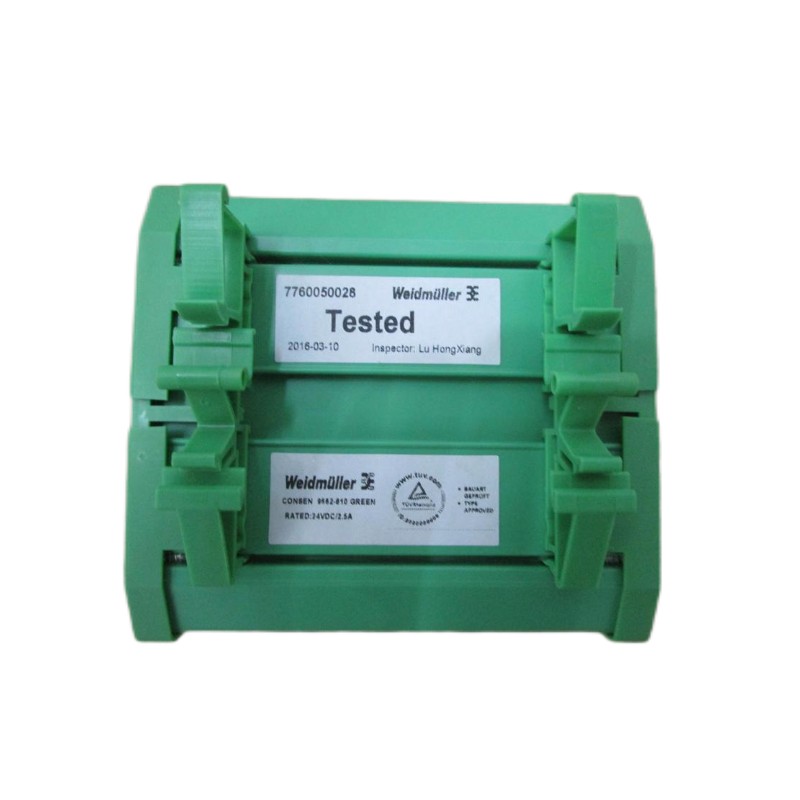

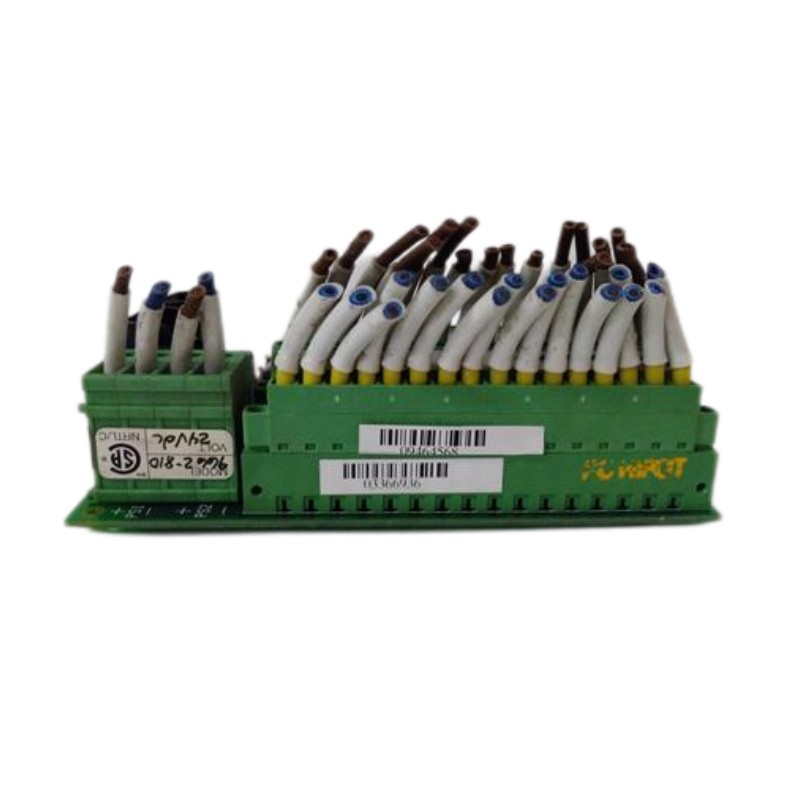

The Triconex 9662-810 Digital Output Termination Panel is a critical interface component used in Triconex Safety Instrumented Systems (SIS) to connect digital output modules with field devices. It serves as a structured wiring platform that ensures stable signal transmission between safety controllers and actuators such as solenoid valves, relays, and shutdown devices.

Designed for high-integrity industrial environments, this module enhances wiring organization, simplifies installation, and improves maintenance efficiency. With support for TMR-based output modules and built-in diagnostics, the 9662-810 plays a key role in ensuring reliable system operation and safety compliance.

Technical Specifications

Parameter	Specification
Product Type	Digital Output Termination Panel
Model	9662-810
System Compatibility	Triconex SIS (TMR Architecture)
Channel Capacity	16 commoned output points
Rated Voltage	24 V DC
Current Rating	Up to 1 A per channel
Fuse Type	0.125 A fast-acting (per channel)
Compatibility	Works with 3624 / 3625 digital output modules
Diagnostics	LED indicators for fuse status and faults
Wiring Interface	Terminal block (panel / DIN rail mounting)
Operating Temperature	–40 °C to +70 °C
Mounting	DIN rail / panel installation
Dimensions (H × W × D)	Approx. 127 × 114 × 108 mm
Weight	Approx. 0.5 – 2.7 kg

The module provides 16 output termination points with integrated fuse monitoring and reliable wiring support.

Recommended Related Models

Triconex 3624 Supervised Digital Output Module – Drives field actuators
Triconex 3625C1 Digital Output Module – Advanced supervised output control
Triconex 3008 Main Processor Module – Core safety logic controller
Triconex 3505E Digital Input Module – High-integrity signal acquisition
Triconex 9563 Series Panels – Additional termination solutions

Popular Triconex Modules

Triconex 3700A Safety Controller
Triconex 4352B Communication Module
Triconex 4354 Network Interface Module
Triconex 4211 Remote Extender Module
Triconex 3721 Analog Input Module

Product Applications

The 9662-810 termination panel is widely used in industries where safe and organized field wiring is essential:

Emergency Shutdown (ESD) Systems – Connects output modules to shutdown valves and actuators
Fire & Gas (F&G) Systems – Interfaces alarms and protective devices
Process Automation Plants – Simplifies wiring between SIS and field equipment
Oil & Gas & Petrochemical – Ensures reliable signal routing in hazardous environments
Power Generation Facilities – Supports turbine and plant protection systems

It acts as a critical bridge between control logic and physical actuation, ensuring signal integrity and system reliability.

Product Advantages

Structured Wiring Interface
Simplifies complex field wiring and improves cabinet organization
High Reliability Design
Ensures stable signal transmission between SIS and field devices
Integrated Fuse Protection
Per-channel protection with LED indication for fast fault detection
Seamless Module Compatibility
Works directly with Triconex digital output modules (e.g., 3624, 3625)
Reduced Maintenance Time
Clear layout and diagnostics simplify troubleshooting
Industrial-Grade Durability
Designed for harsh environments with vibration, temperature, and EMI resistance

Technical FAQs

What is the main function of the Triconex 9662-810?
It provides a termination interface between digital output modules and field wiring.
How many channels does it support?
It supports 16 commoned digital output points.
What voltage rating does it handle?
Typically 24 V DC operation.
Does it include protection features?
Yes, each channel includes fuse protection with status indication.
Which modules is it compatible with?
Commonly used with Triconex 3624 and 3625 digital output modules.
How is it installed?
It can be mounted on DIN rail or control panels.
Is it part of the safety system?
Yes, it is a supporting component within Triconex SIS architectures.
Can it operate in harsh environments?
Yes, it is designed for industrial environments with wide temperature ranges.
What is its key benefit for engineers?
It simplifies wiring while improving reliability and diagnostics.
Does it require configuration?
No, it is a passive interface module requiring minimal setup.
