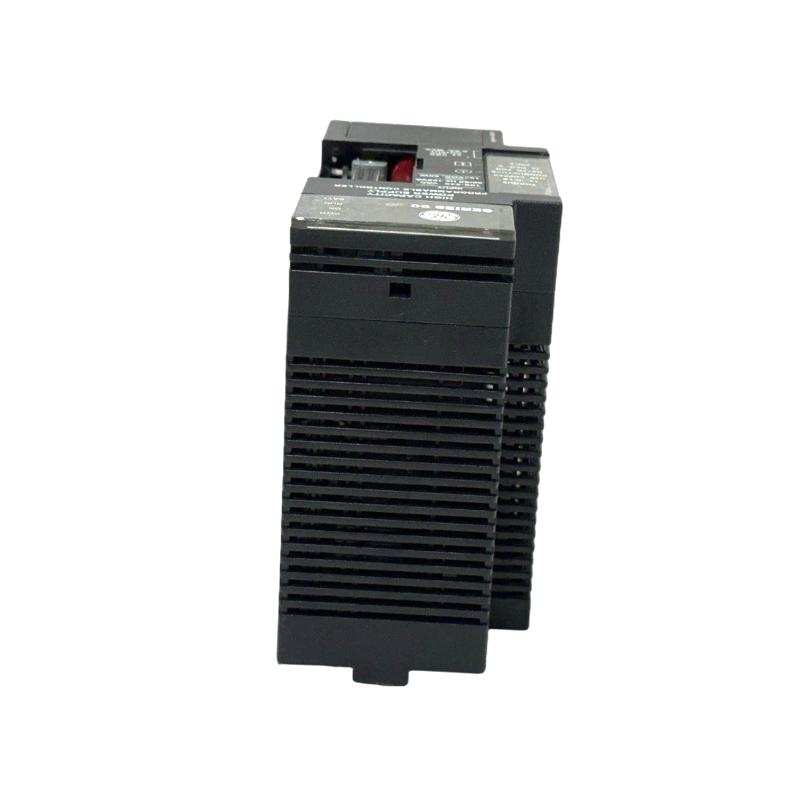

The GE IC690PRS010 is a VersaMax / Series 90-30 compatible relay output module designed for industrial automation systems requiring robust switching of electrical loads. It provides multiple relay channels that allow PLC systems to control external devices such as motors, solenoids, alarms, valves, and industrial lighting.
This module is widely used in GE Fanuc legacy PLC architectures where high-current relay switching and electrical isolation are required. It is valued for its durability, flexibility, and ability to handle mixed AC/DC industrial loads in demanding environments.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (General Electric / Emerson legacy) |
| Model | IC690PRS010 |
| Product Type | Relay Output Module |
| Series | IC690 / VersaMax compatible systems |
| Number of Outputs | 8 relay channels |
| Output Type | Dry contact relay |
| Load Voltage | Up to 250 VAC / DC (typical industrial rating) |
| Load Current | Up to 10 A per channel |
| Isolation | Optical and relay isolation per channel |
| Control Interface | PLC backplane digital control |
| Switching Type | Electromechanical relay |
| Response Time | ~10–20 ms typical |
| Electrical Life | High durability industrial-grade relay cycles |
| Diagnostics | Channel status indication (system dependent) |
| Mounting Type | PLC rack / backplane mounted |
| Operating Temperature | -25°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Weight | ~0.5 – 1.5 kg |
Physical Dimensions (L × W × H)
| Dimension | Value |
|---|---|
| Size | 130 × 110 × 80 mm |
The compact 130 × 110 × 80 mm design allows easy integration into GE PLC racks while maintaining strong switching capability for industrial loads.
Recommended Related Models
- GE IC690PWR024 – Power supply module
- GE IC690PWR124 – High-capacity power module
- GE IC200MDL740 – Digital output module (VersaMax)
- GE IC200ALG331 – Analog output module
- GE IC200CPU series – PLC CPU modules
Popular GE / Emerson Automation Products
- GE Series 90-30 PLC systems
- GE VersaMax distributed I/O systems
- Emerson PACSystems RX3i controllers
- Industrial relay output modules
- Distributed control and automation systems
These systems are widely used in manufacturing, energy, oil & gas, and process automation industries.
