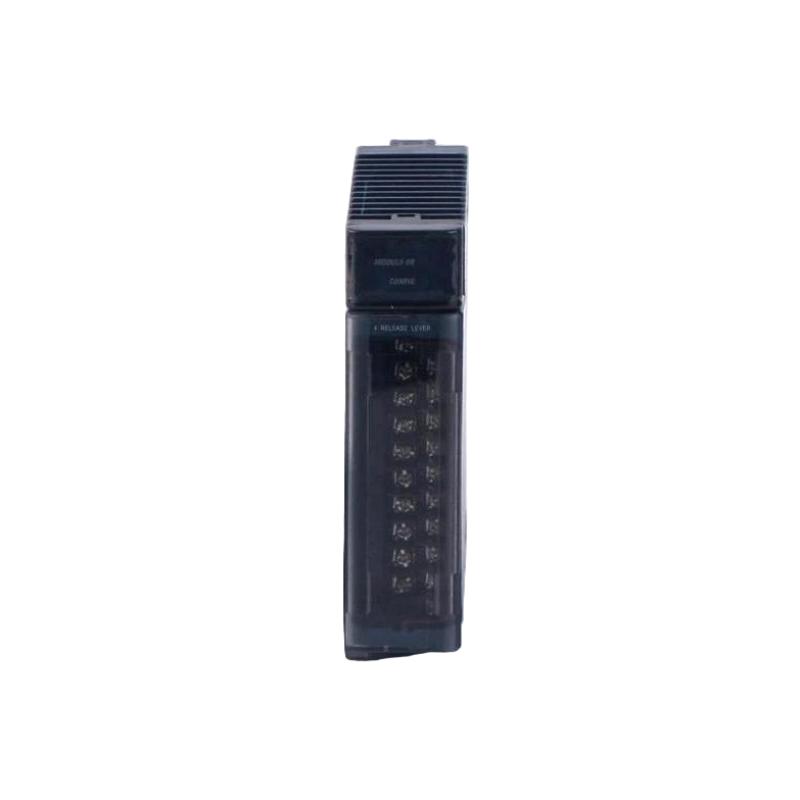

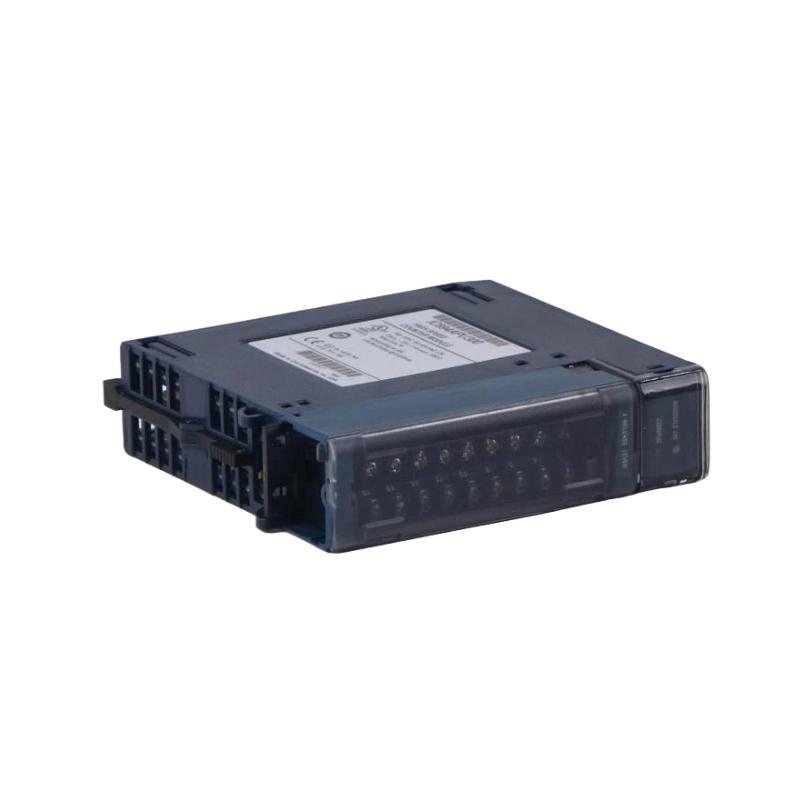

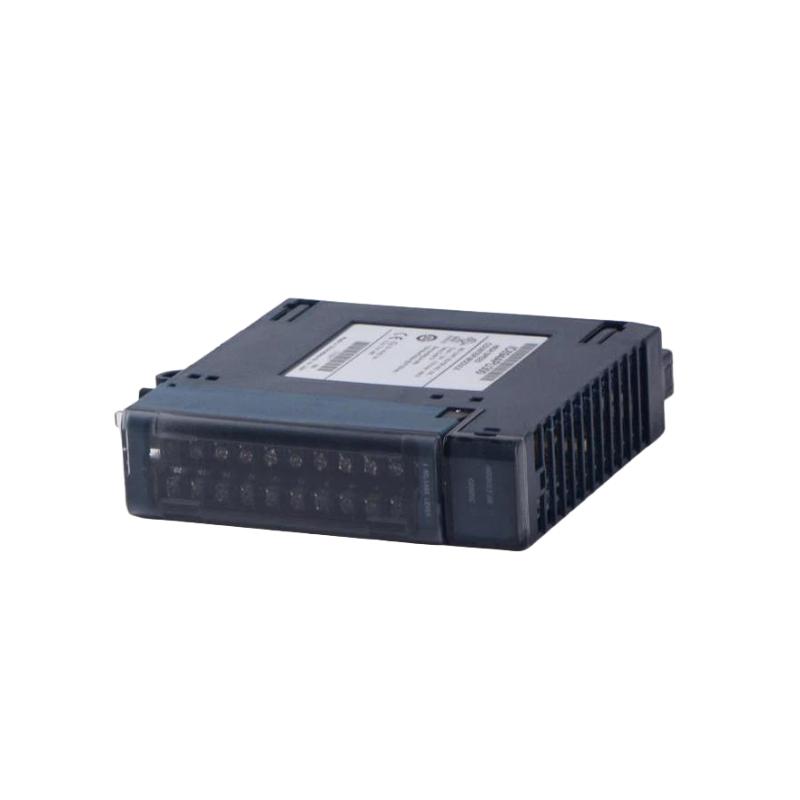

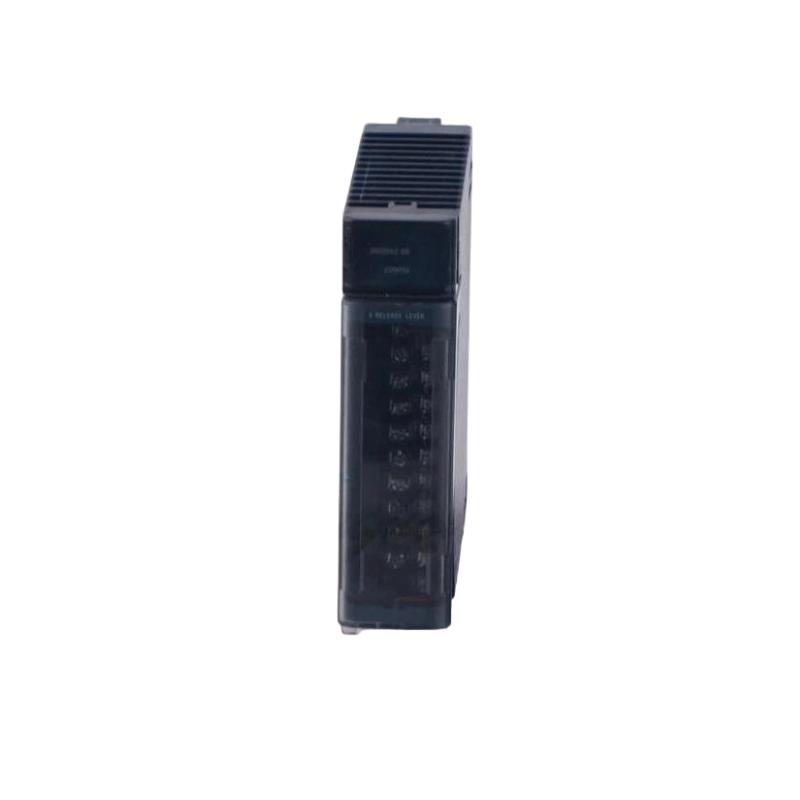

The GE IC694APU300 is a PACSystems RX3i high-speed counter and motion interface module designed for precise pulse counting, encoder signal processing, and high-speed timing applications in industrial automation systems.
It is widely used in applications that require accurate measurement of speed, position, frequency, or production counts, such as packaging machines, conveyor systems, turbine monitoring, and high-speed production lines.
This module is engineered to handle very fast digital signals and encoder feedback, making it a key component in motion control and real-time measurement systems within GE’s RX3i platform.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (General Electric / Emerson) |
| Model | IC694APU300 |
| Series | PACSystems RX3i |
| Product Type | High-Speed Counter / Encoder Module |
| Input Channels | Up to 12 high-speed inputs |
| Output Channels | 4 digital outputs |
| Input Voltage | 5 VDC or 10–30 VDC (selectable) |
| Count Frequency | Up to 200 kHz – 1 MHz (depending on mode) |
| Resolution | 32-bit / high-resolution counter structure |
| Encoder Support | Incremental encoders (A/B/Z channels) |
| Operating Mode | Classic mode / Enhanced mode |
| Response Time | Microsecond-level processing |
| Power Consumption | ~3–55 mA @ 24 VDC (low load design) |
| Communication | Backplane bus (RX3i rack) |
| Diagnostics | Built-in module fault and status monitoring |
| Isolation | Industrial-grade field-to-backplane isolation |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
Physical Dimensions (L × W × H)
| Item | Value |
|---|---|
| Size | 125 × 96 × 45 mm |
| Weight | ~0.18 – 3.0 kg (variant & packaging dependent) |
The compact 125 × 96 × 45 mm design allows high-density installation in RX3i racks, while maintaining excellent signal integrity for high-speed industrial counting applications. (turn0search8)
