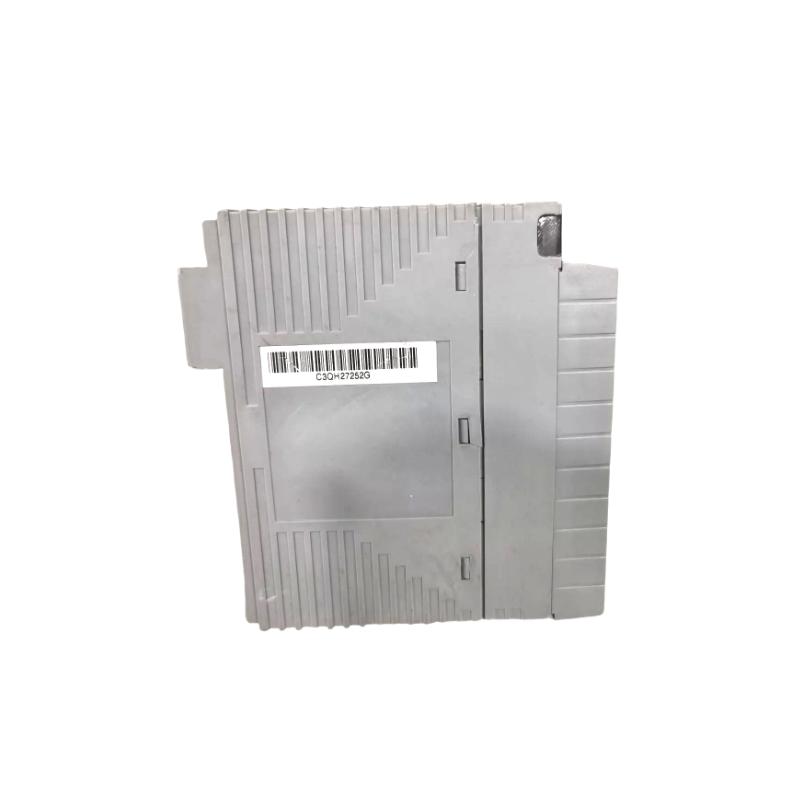

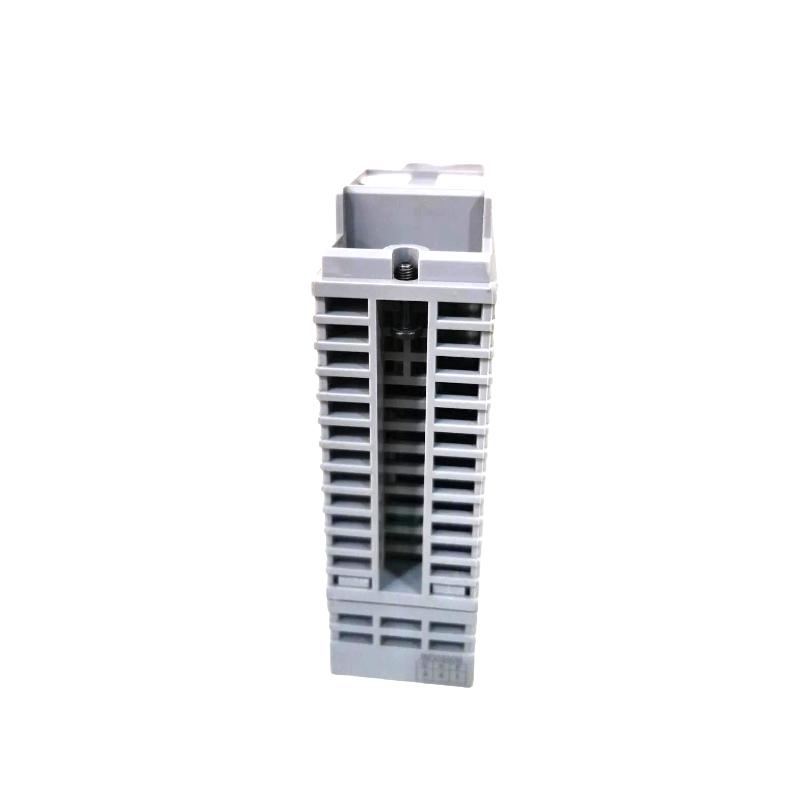

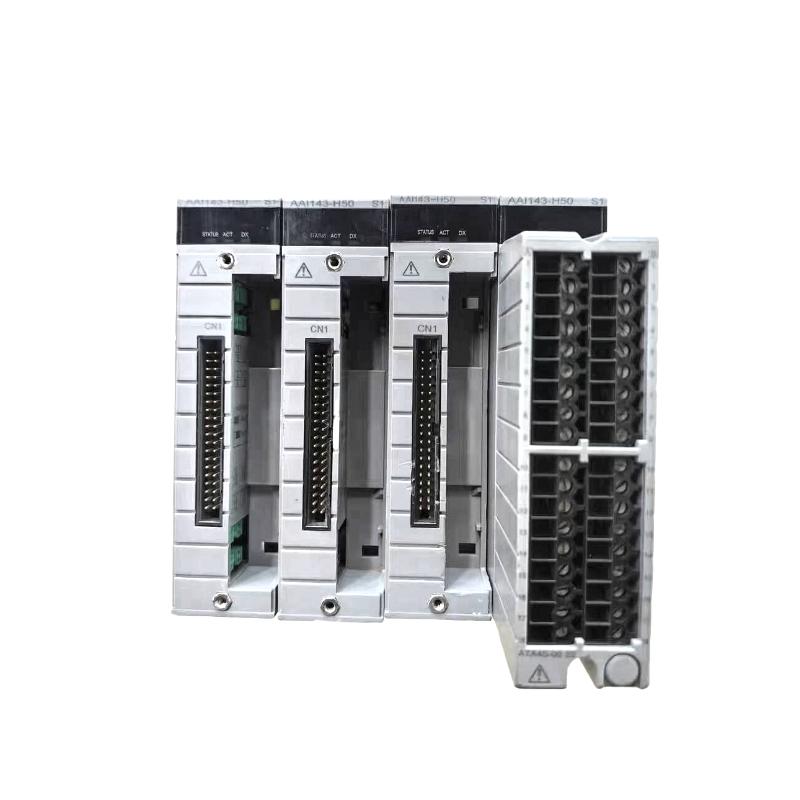

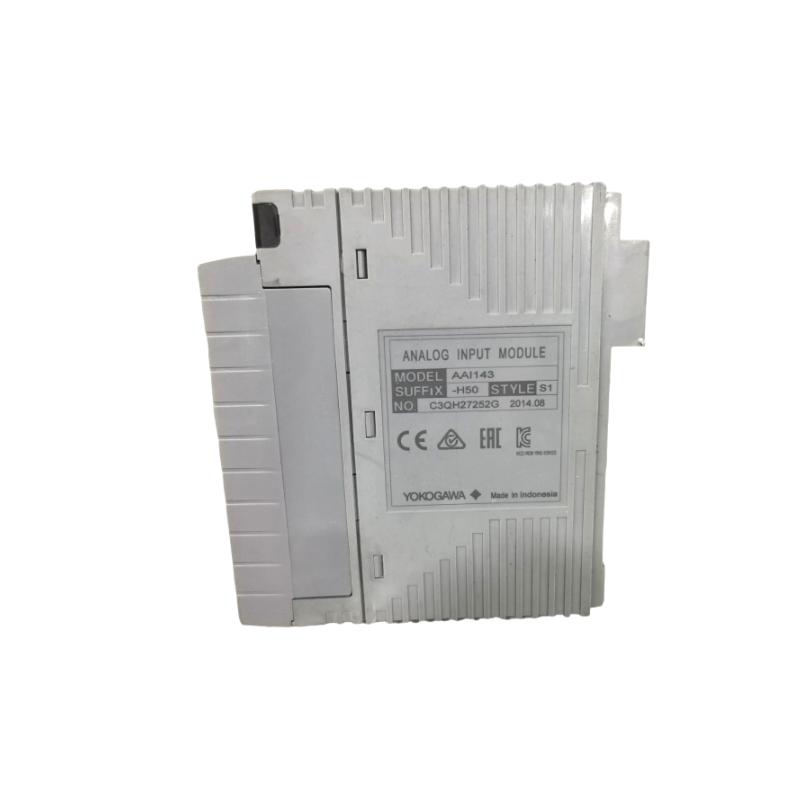

Yokogawa AAI143-H50/A4S10 Analog Input Module

Applications

The Yokogawa AAI143-H50/A4S10 Analog Input Module is designed to integrate seamlessly into a variety of industrial automation systems, including:

• Chemical Plants: Provides accurate monitoring and control for chemical reactions and processes, ensuring stable and safe operations.

• Power Generation: Used for monitoring key variables like voltage and current in power plants, contributing to efficient power generation and grid stability.

• Oil and Gas: Facilitates the monitoring of critical analog signals in oil refineries and gas processing plants, ensuring safety and performance.

• Manufacturing: Used in manufacturing plants for precise monitoring of equipment, processes, and environmental factors.

• Water Treatment Plants: Provides the necessary data acquisition for process control, ensuring efficient water purification and distribution.

Advantages

• High Accuracy: The module offers superior accuracy of ±0.1% of full scale, ensuring precise data collection for critical control applications.

• Wide Input Range: Capable of handling both voltage and current inputs (4-20 mA, -10 to 10 V), making it versatile for a variety of industrial applications.

• Compact Design: Its compact size (125 x 160 x 40 mm) allows easy installation even in limited spaces, making it ideal for dense control panels.

• Flexible Integration: Designed to integrate seamlessly with Yokogawa's DCS, providing a highly flexible solution for automation and process control.

• Rugged and Reliable: With its wide operating temperature range (-20°C to +60°C), the module can be deployed in harsh industrial environments, ensuring reliable performance.

Technical FAQs

1. What is the input range for the Yokogawa AAI143-H50/A4S10?

   • The input range is -10 to 10 V and 4 to 20 mA, suitable for various types of analog signals.

2. How many channels does the Yokogawa AAI143-H50/A4S10 module have?

   • The module has 16 channels for analog inputs.

3. What communication protocol does the Yokogawa AAI143-H50/A4S10 use?

   • It uses Yokogawa’s proprietary communication protocol for integration into DCS systems.

4. What is the accuracy of the Yokogawa AAI143-H50/A4S10 module?

   • The module offers an accuracy of ±0.1% of full scale.

5. What is the operating temperature range of the Yokogawa AAI143-H50/A4S10?

   • The module operates within a temperature range of -20°C to +60°C.

6. What certifications does the Yokogawa AAI143-H50/A4S10 have?

   • It is CE, UL, and RoHS compliant, ensuring international safety standards.

7. What power supply does the Yokogawa AAI143-H50/A4S10 require?

   • The module operates with a 24 V DC power supply.

8. How does the Yokogawa AAI143-H50/A4S10 fit into industrial applications?

   • It is ideal for chemical plants, power generation, oil and gas industries, manufacturing plants, and water treatment facilities.

9. Is the Yokogawa AAI143-H50/A4S10 module easy to install?

   • Yes, the compact dimensions (125 x 160 x 40 mm) allow easy installation even in tight spaces.

10. What is the weight of the Yokogawa AAI143-H50/A4S10 module?

• The module weighs 1.2 kg, making it light yet durable for industrial environments.
