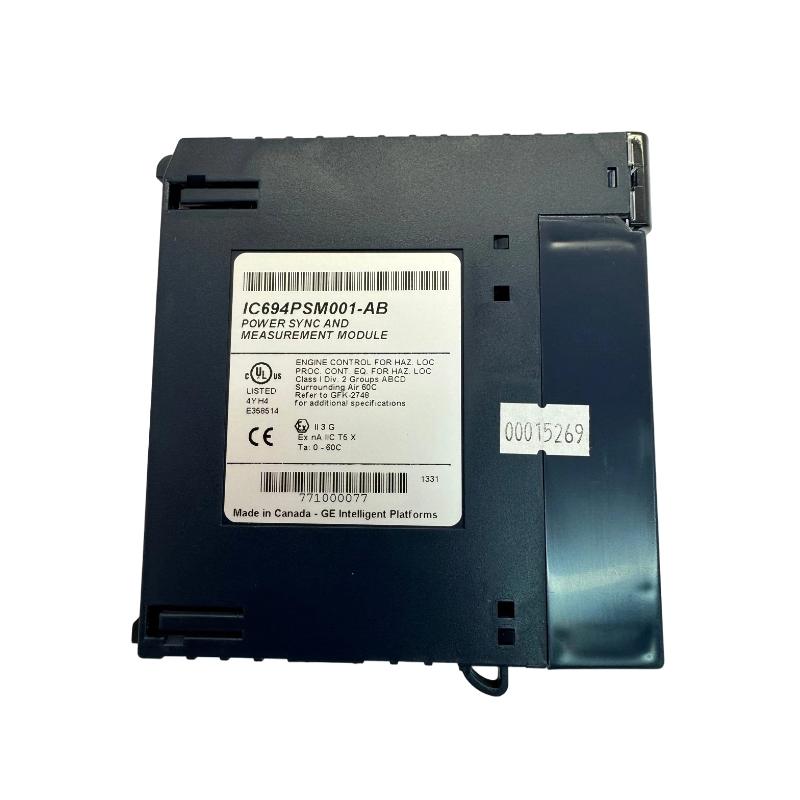

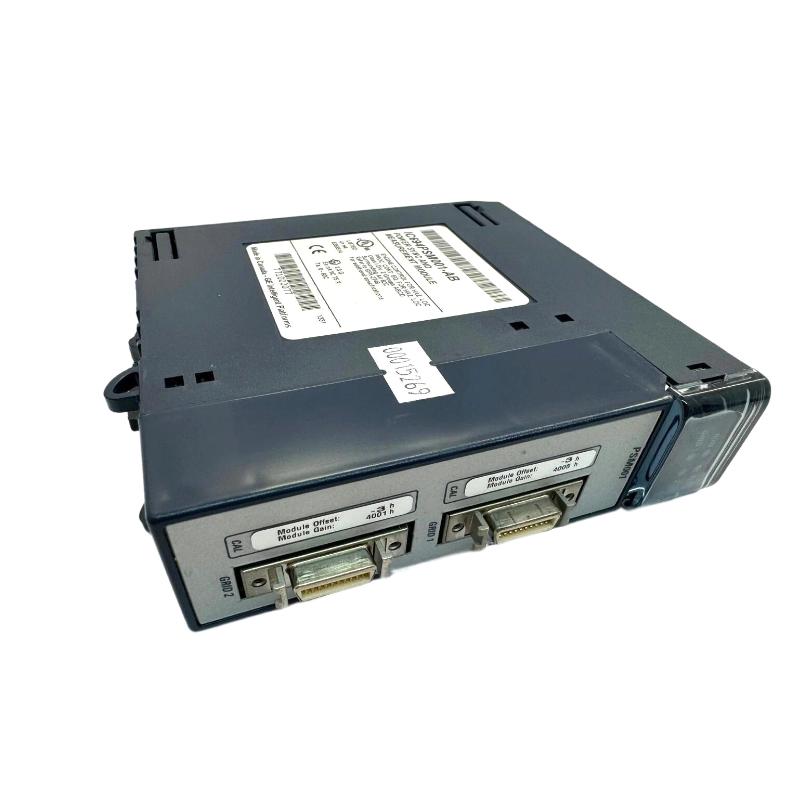

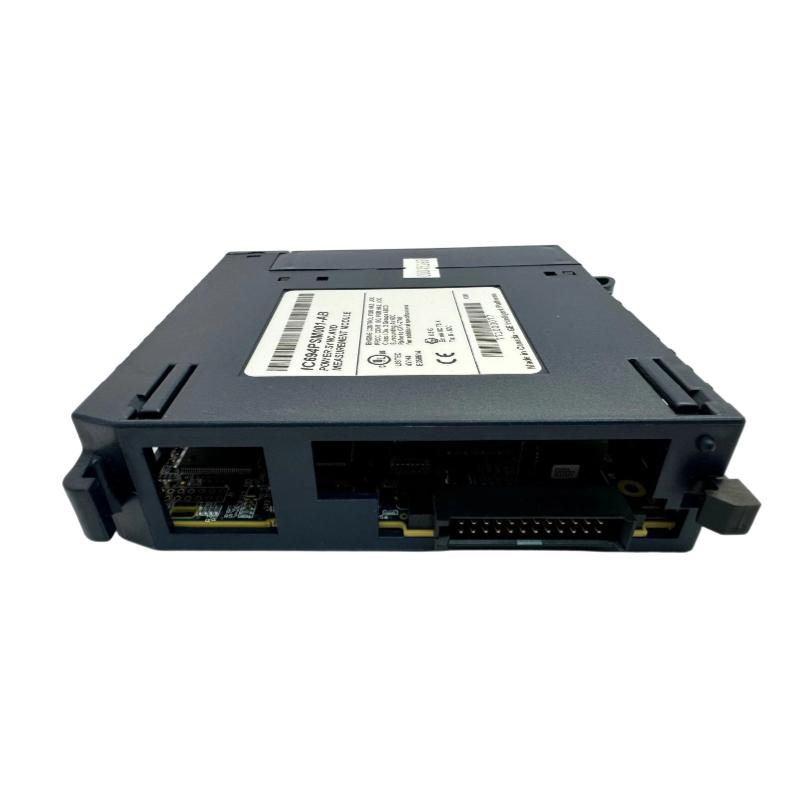

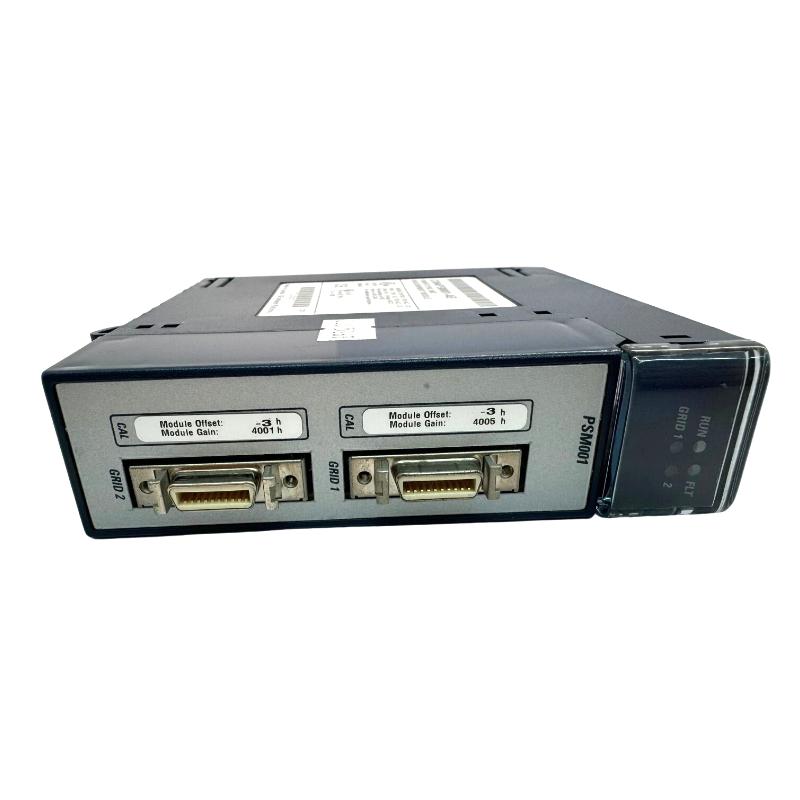

The GE IC694PSM001 is a RX3i PACSystems Power Sync and Measurement (PSM) module designed for advanced industrial energy monitoring and power system synchronization. It is used to measure, analyze, and compare electrical parameters across two independent three-phase power grids, enabling precise control in critical power applications.
This module is widely applied in generator synchronization, power distribution monitoring, load management, and energy optimization systems. It integrates DSP (Digital Signal Processing) technology to deliver real-time electrical analysis with high accuracy and fast response.
In modern industrial automation, the IC694PSM001 is considered a specialized power intelligence module, bridging electrical measurement with PLC control logic.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (Emerson / GE Fanuc legacy) |
| Model | IC694PSM001 |
| Series | PACSystems RX3i |
| Product Type | Power Sync & Measurement Module |
| Function | Dual-grid power monitoring & synchronization |
| Monitored Systems | 2 independent 3-phase power grids |
| Input Voltage Range | 20–600 VAC |
| Frequency Range | 40–70 Hz |
| Current Input Range | 0–7.5 A |
| Measurements | RMS Voltage, RMS Current, Power, Frequency, Phase Angle |
| Processing | DSP (Digital Signal Processing) |
| Communication | Backplane + terminal interface system |
| Response Speed | < 1 power cycle (fast real-time analysis) |
| Backplane Power | ~190 mA @ 5 VDC |
| Isolation | Industrial-grade electrical isolation (up to 1500 V) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
Physical Dimensions (L × W × H)
| Item | Value |
|---|---|
| Size | 38 × 115 × 45 mm |
| Weight | ~0.20 – 0.91 kg |
The compact 38 × 115 × 45 mm structure and lightweight design (around ~0.20–0.91 kg depending on revision) make it suitable for RX3i rack installation while maintaining high-precision power measurement performance.
Recommended Related Models
- GE IC694PSK001 – PSM monitoring kit (module + terminal + cables)
- GE IC694PWR330 – RX3i power supply module
- GE IC695CPU310 – RX3i CPU module
- GE IC694MDL646 – Digital input module
- GE IC694ALG508 – Analog input module
Popular GE RX3i Power & Control Modules
- RX3i CPU processing systems
- Power distribution and monitoring modules
- Analog signal acquisition modules
- Industrial communication interface modules
- High-precision energy measurement systems
These modules are widely used in energy plants, industrial grids, automation factories, and generator synchronization systems.
