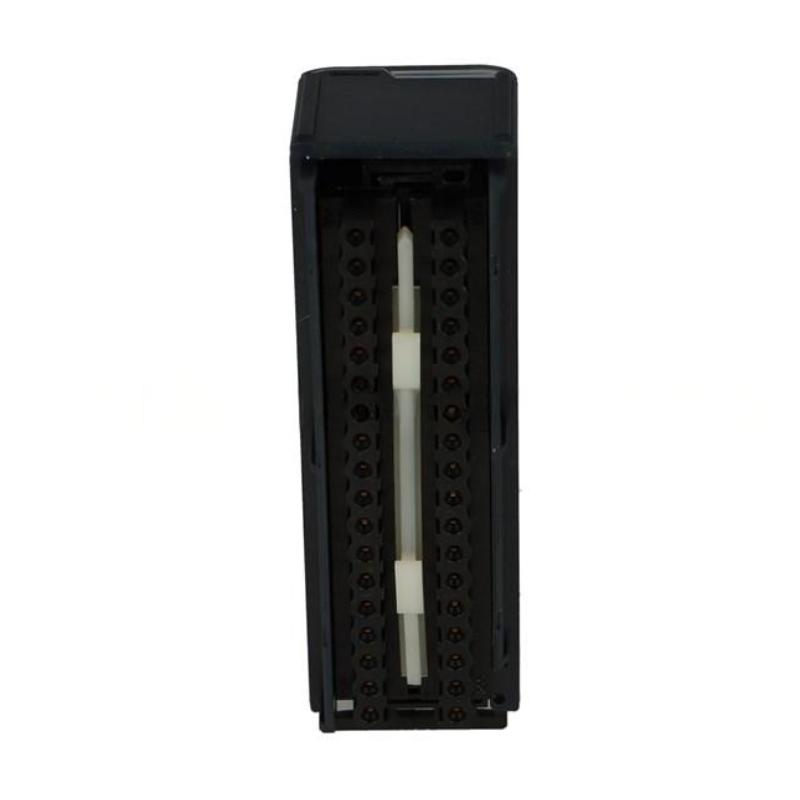

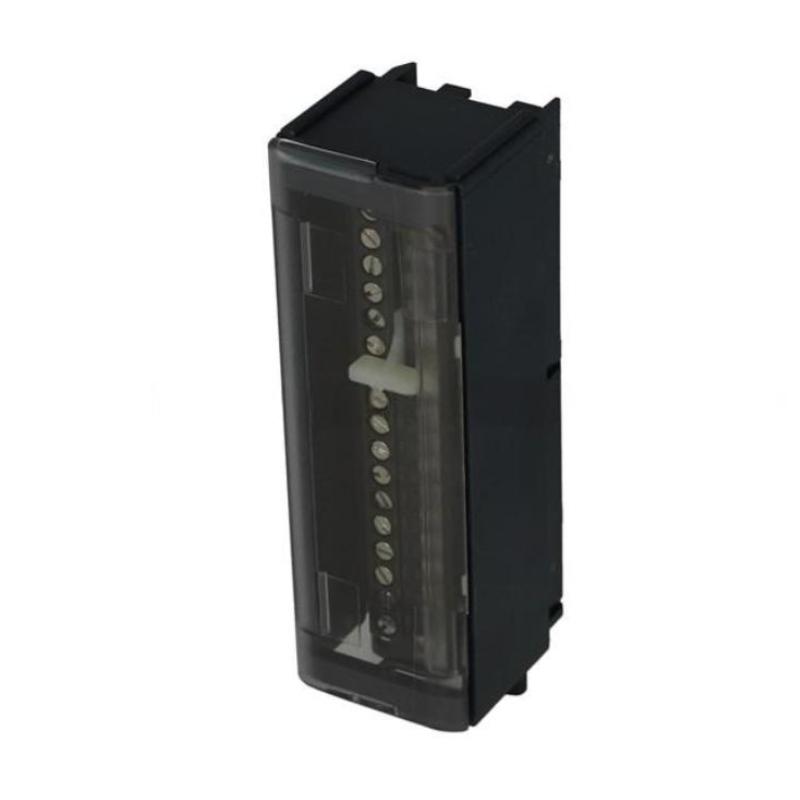

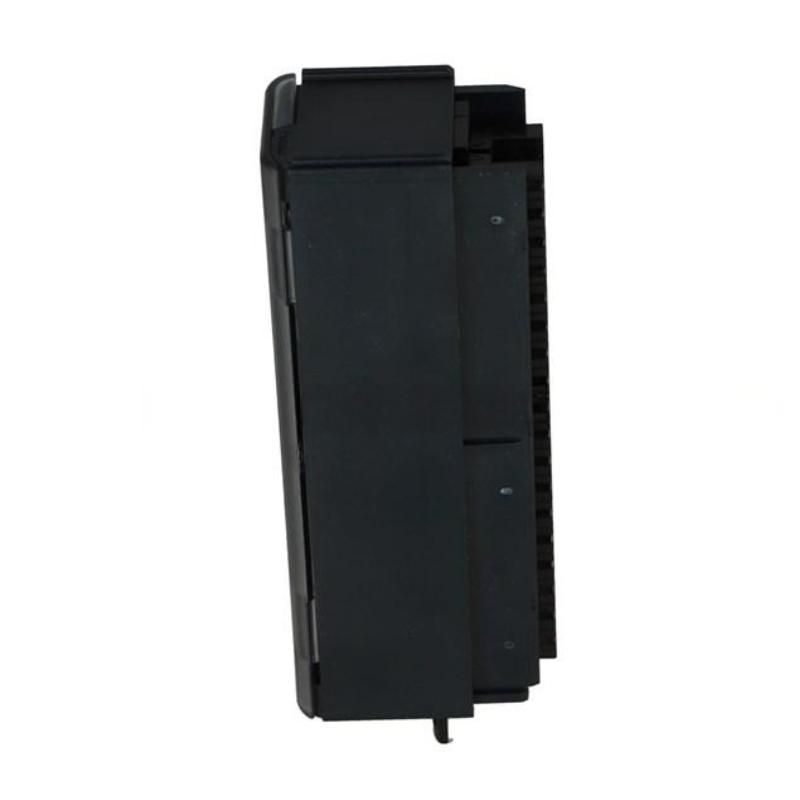

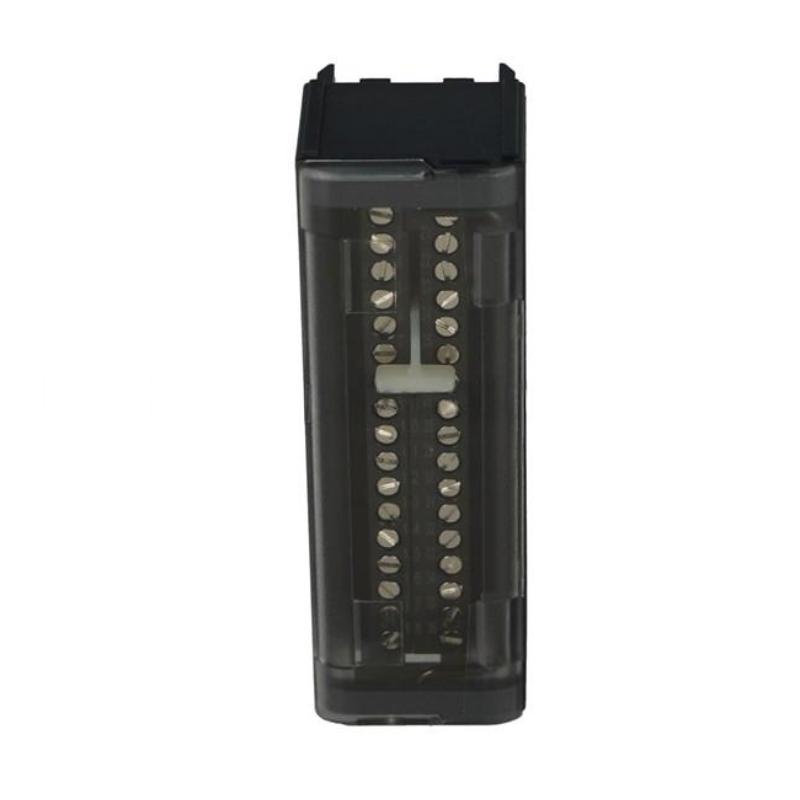

The GE IC694TBB032 is a 36-point box-style high-density terminal block designed for the PACSystems RX3i and compatible Series 90-30 I/O modules. It provides a secure and structured interface between PLC I/O modules and field wiring, ensuring stable signal transmission in industrial automation systems.
This terminal block is widely used in control cabinets where dense wiring, fast maintenance, and high reliability are required. By consolidating multiple field connections into a single organized interface, it significantly reduces wiring complexity and improves system serviceability.
It is especially common in large-scale manufacturing, process control, and energy automation systems where RX3i modular systems are deployed.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (Emerson / GE Fanuc legacy) |
| Model | IC694TBB032 |
| Product Type | Box-Style High-Density Terminal Block |
| Series | PACSystems RX3i / Series 90-30 compatible |
| Number of Terminals | 36 points |
| Wiring Type | Screw-clamp terminals |
| Wire Range | 14–26 AWG (solid/stranded) |
| Torque Rating | ~7 lb-in |
| Strip Length | ~7.87 mm (0.31 in) |
| Function | Field wiring termination for I/O modules |
| Protection | Protective cover for wiring safety |
| Material | Industrial-grade insulating plastic + metal contacts |
| Operating Temperature | -40°C to +85°C |
| Installation Type | Plug-in I/O module terminal interface |
Physical Dimensions (L × W × H)
| Item | Value |
|---|---|
| Size | 80 × 40 × 30 mm |
| Weight | ~1.0 – 1.55 kg |
The compact 80 × 40 × 30 mm structure supports high-density wiring in RX3i systems while maintaining strong mechanical stability and vibration resistance in industrial environments.
Recommended Related Models
- GE IC694TBB132 – Deep-cover terminal block variant
- GE IC694ACC311 – RX3i terminal wiring accessory
- GE IC694MDL646 – Digital input module
- GE IC694MDL740 – Relay output module
- GE IC695CPU310 – RX3i CPU module
Popular GE RX3i I/O Ecosystem
- RX3i CPU and rack systems
- High-density digital and analog I/O modules
- Terminal blocks and wiring accessories
- Power supply modules (IC694PWR series)
- Communication and expansion modules
These components are widely used in industrial automation, energy systems, water treatment, and manufacturing production lines.
