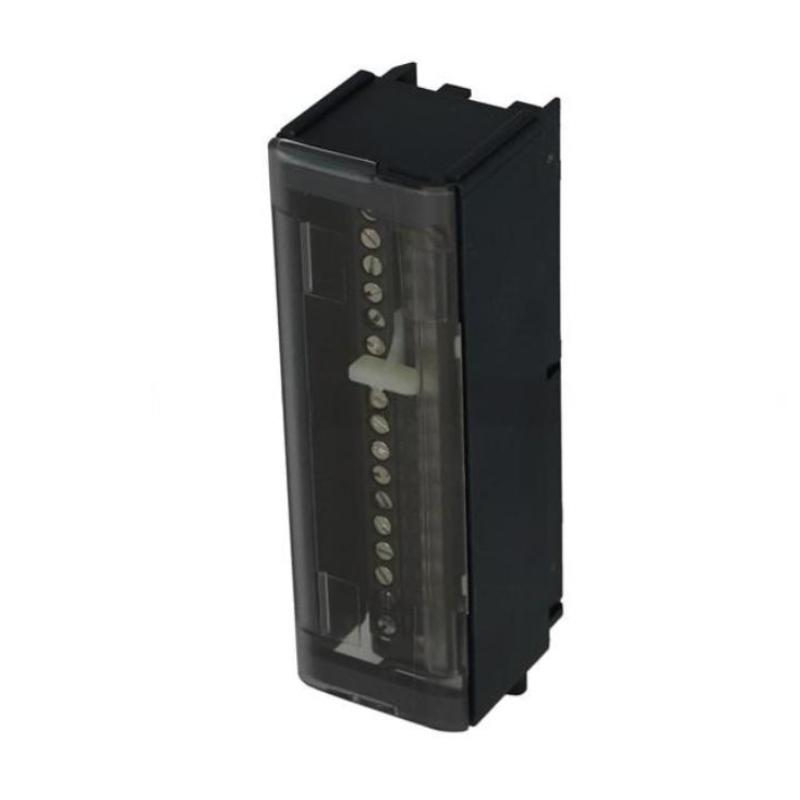

The GE IC694TBB132 is an extended box-style high-density terminal block designed for the PACSystems RX3i and Series 90-30 PLC platforms. It provides a robust interface between high-density I/O modules and field wiring, ensuring secure and organized electrical connections in demanding industrial environments.
What distinguishes this model from standard terminal blocks is its extended depth design, allowing it to accommodate thicker insulated wires, especially in AC I/O applications. This makes it an ideal solution for systems where reliability, wiring stability, and safety are critical.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (Emerson / GE Fanuc legacy) |
| Model | IC694TBB132 |
| Product Type | Extended High-Density Terminal Block |
| Series | PACSystems RX3i / Series 90-30 |
| Terminal Points | 36 screw terminals |
| Terminal Type | Box-style, extended depth |
| Wire Range | #14–26 AWG (solid or stranded) |
| Strip Length | 7.87 mm (0.310 in) |
| Tightening Torque | 7 lb-in |
| Compatibility | High-density I/O modules (32-point modules) |
| Mounting | Front plug-in terminal assembly |
| Removability | Yes (maintenance-friendly design) |
| Housing Depth | ~13 mm deeper than standard version |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
This terminal block is specifically engineered for high-density module wiring, supporting reliable connections even in high-vibration or electrically noisy environments.
Physical Dimensions (L × W × H)
| Item | Value |
|---|---|
| Size | 152 × 152 × 33 mm |
| Weight | ~0.17 – 0.32 kg |
The 152 × 152 × 33 mm structure (approx. 6 × 6 inches) provides ample internal space for wiring management, while the ~0.17–0.32 kg weight ensures easy handling during installation and maintenance.
