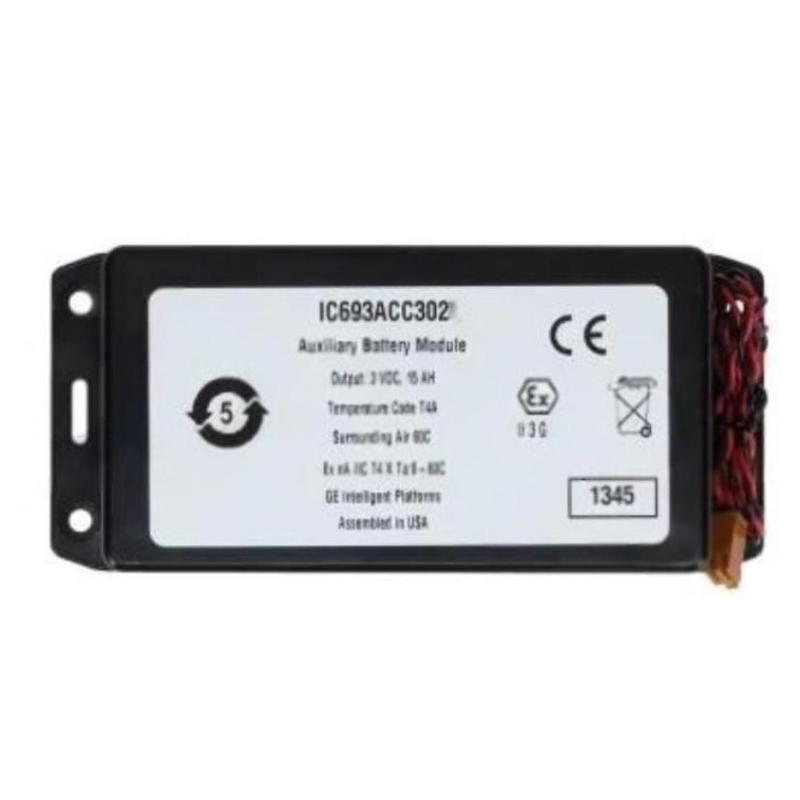

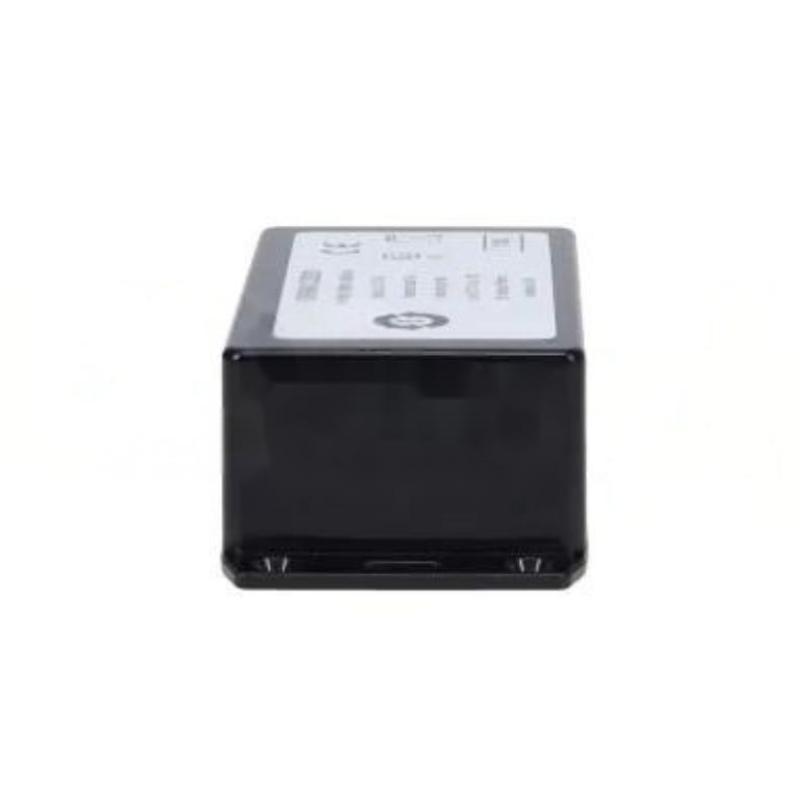

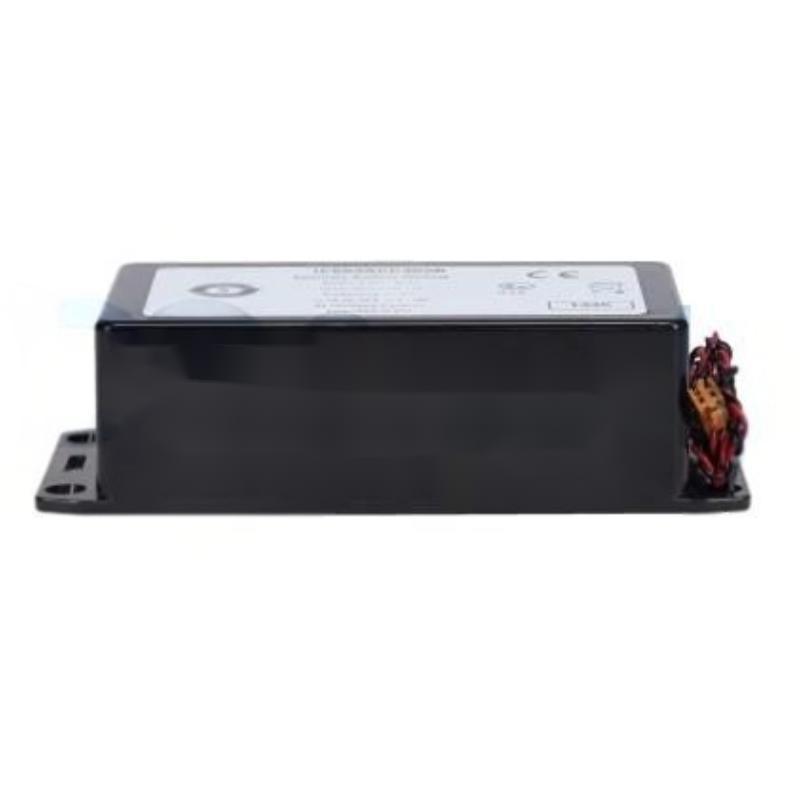

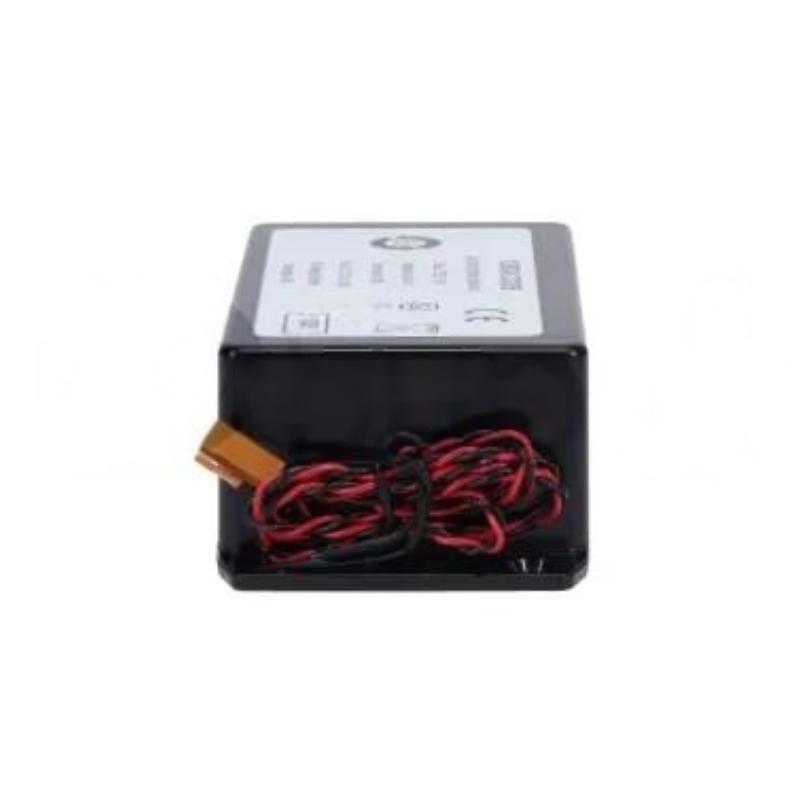

The GE IC695ACC302 is an Auxiliary Smart Battery Module designed for the PACSystems RX3i control platform. It provides extended backup power for CPU memory, data logging, and system retention during power interruptions.
Unlike standard backup batteries, this module integrates intelligent battery management, allowing the system to monitor battery status, health, and remaining capacity. It is particularly valuable in applications where data integrity, long-duration retention, and system reliability are mission-critical.
Engineered for modern industrial environments, the IC695ACC302 enhances system resilience by ensuring continuous memory protection and controlled shutdown behavior.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (Emerson Automation) |
| Model | IC695ACC302 |
| Product Type | Smart Battery Backup Module |
| Series | PACSystems RX3i |
| Function | Extended memory backup & power retention |
| Battery Type | Intelligent rechargeable battery system |
| Nominal Voltage | ~12 V DC |
| Capacity | High-capacity industrial battery (extended runtime) |
| Monitoring | Built-in battery diagnostics and status reporting |
| Backup Duration | Extended (system-dependent, hours to days) |
| Interface | Direct connection to RX3i CPU system |
| Protection | Overcharge, deep discharge, thermal protection |
| Maintenance | Periodic health monitoring via system diagnostics |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
Physical Dimensions (L × W × H)
| Item | Value |
|---|---|
| Size | 210 × 95 × 45 mm |
| Weight | ~0.90 – 1.36 kg |
The 210 × 95 × 45 mm form factor and weight of approximately ~0.90–1.36 kg provide a balance between compact installation and extended backup capacity, making it suitable for control cabinets requiring long-duration power retention.
Recommended Related Models
- GE IC695CPU310 – RX3i CPU module
- GE IC695ACC400 – Energy pack module
- GE IC690RBK001 – Rechargeable battery kit (legacy systems)
- GE IC694PWR330 – Power supply module
- GE IC695CHS012 – RX3i rack system
Popular GE RX3i Power & Backup Ecosystem
- RX3i CPU and control systems
- Smart battery and energy modules
- Industrial power supply units
- Memory retention and backup systems
- High-availability automation architectures
These solutions are widely deployed in energy, oil & gas, manufacturing, and infrastructure systems where uptime and data protection are critical.
