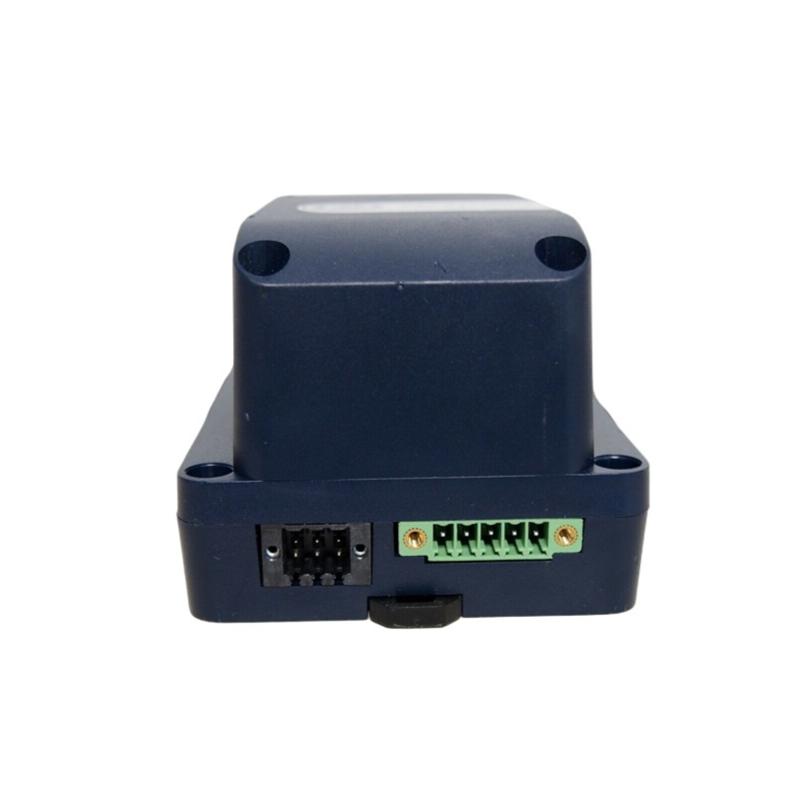

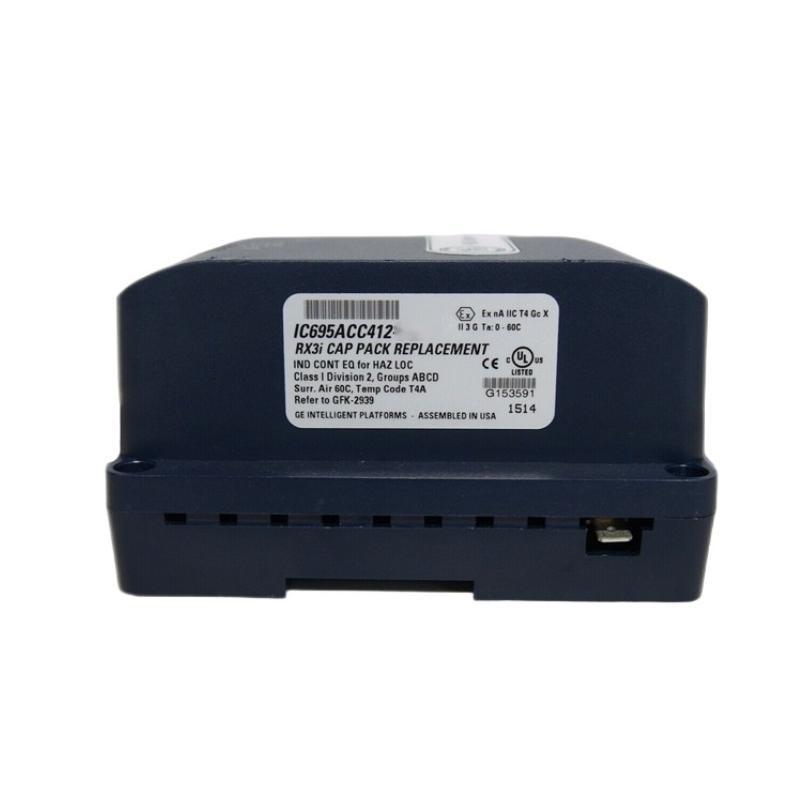

The GE IC695ACC412 is a capacitor pack (Cap Pack) module designed for the PACSystems RX3i Energy Pack system, specifically supporting the CPE330 CPU platform. It functions as a critical energy storage component, enabling the controller to safely retain data during sudden power loss.
Unlike standalone energy modules, the IC695ACC412 is installed at the bottom of the Energy Pack assembly, acting as a replaceable capacitor unit that stores and releases energy when needed. This ensures the CPU has enough time to transfer volatile memory into non-volatile storage, preventing data loss.
It is a key maintenance component in modern RX3i systems where continuous operation, data integrity, and safe shutdown behavior are essential.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (Emerson Automation) |
| Model | IC695ACC412 |
| Product Type | Energy Pack Capacitor Module (Cap Pack) |
| Series | PACSystems RX3i |
| Function | Energy storage for memory backup |
| Compatibility | RX3i Energy Pack + CPE330 CPU |
| Installation Position | Bottom of Energy Pack |
| Energy Type | Capacitor-based storage |
| Lifespan | ~5 years typical |
| LED Indicator | 1 × Green “STAT” LED |
| Role | Supports RAM → Flash data transfer |
| Maintenance | Replaceable component |
| Protection | Industrial-grade housing and EMC resistance |
The module ensures the system maintains power long enough for the CPU to securely store data during power interruptions.
Physical Dimensions (L × W × H)
| Item | Value |
|---|---|
| Size | 270 × 125 × 270 mm |
| Weight | ~4.06 – 6.80 kg |
The robust structure (approx. 270 × 125 × 270 mm) and industrial weight range (~4.06–6.80 kg) reflect its role as a high-capacity energy storage component within the RX3i power backup system.
Recommended Related Models
- GE IC695ACC402 – Energy Pack module
- GE IC695ACC400 – Standard energy pack
- GE IC695ACC302 – Smart battery module
- GE IC695CPE330 – RX3i high-performance CPU
- GE IC695CBL002 – Energy pack connection cable
Popular GE RX3i Power & Backup Components
- RX3i CPU (CPE / CPU series)
- Energy packs (ACC400 / ACC402 series)
- Capacitor packs (ACC412 replacement modules)
- Industrial power supply modules
- Data retention and backup solutions
These systems are widely used in power generation, oil & gas, manufacturing, and critical infrastructure automation.
