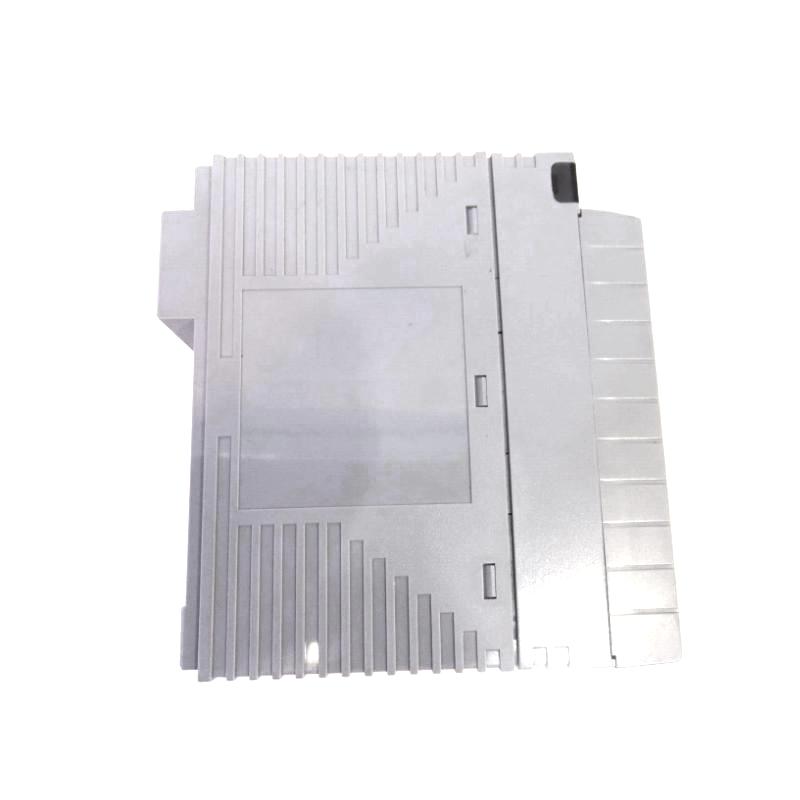

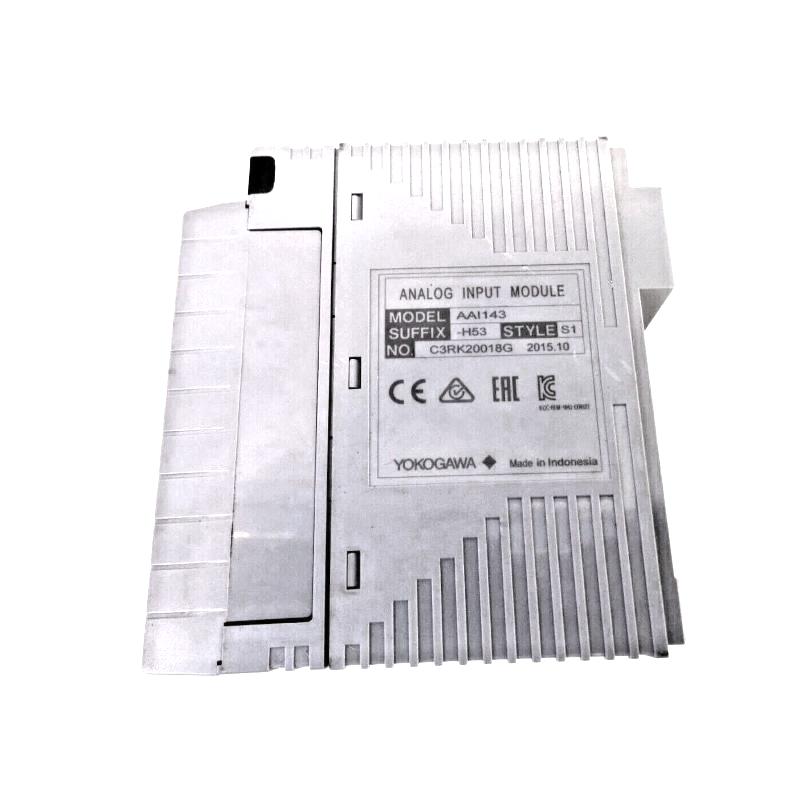

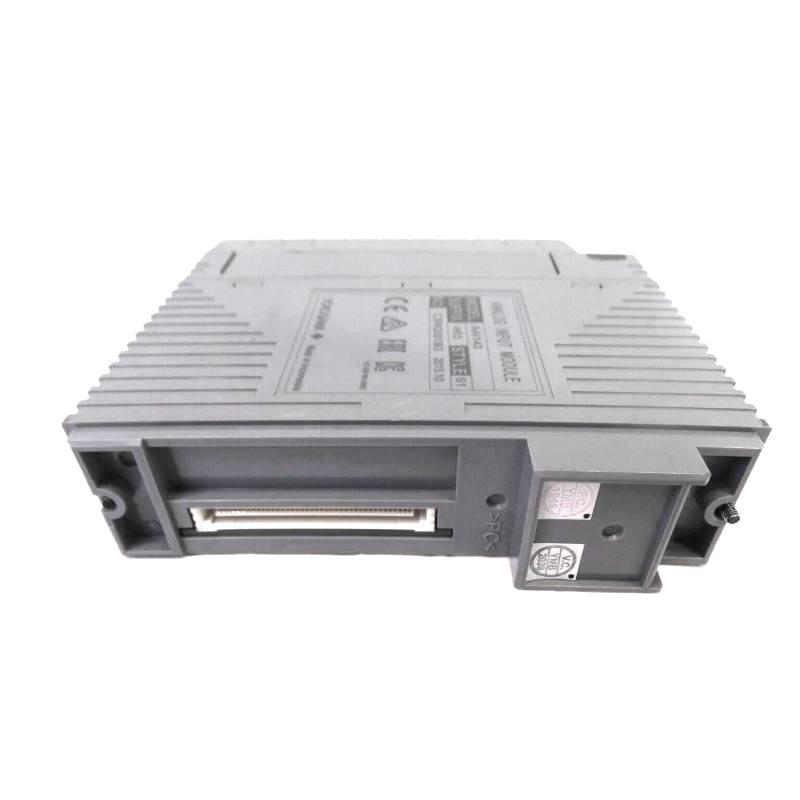

Yokogawa AAI143-H53/A4S00 Analog Input Module

Applications

The Yokogawa AAI143-H53/A4S00 Analog Input Module is ideal for a broad range of industrial applications, providing critical analog data acquisition for optimal control and process monitoring:

• Power Generation: Monitors key parameters such as voltage and current for equipment like generators, transformers, and turbines, ensuring stable and reliable power generation.

• Chemical Processing: Suitable for precise monitoring of chemical concentrations, pressure, temperature, and flow in chemical reactors and pipelines.

• Oil & Gas: Used for monitoring analog signals from critical equipment in oil refineries and gas processing plants, contributing to safe and efficient operations.

• Manufacturing: Ideal for monitoring production processes in manufacturing plants, ensuring quality control and improving operational efficiency.

• Water Treatment: Provides essential data for monitoring water quality parameters, optimizing the performance of treatment facilities and ensuring clean water distribution.

Advantages

• High Accuracy: With an accuracy of ±0.1% of full scale, the AAI143-H53/A4S00 ensures precise and reliable analog signal processing, critical for maintaining process control in various industrial settings.

• Flexible Input Range: The module supports both voltage (-10 to 10 V) and current (4 to 20 mA) inputs, offering versatility in a wide range of sensor types and industrial applications.

• Compact Design: Its compact size (125 x 160 x 40 mm) allows for easy integration into control panels, ideal for applications with limited space.

• Seamless Integration: Designed to integrate easily with Yokogawa's DCS systems, providing seamless communication and data flow for real-time monitoring and control.

• Wide Operating Temperature Range: The AAI143-H53/A4S00 can operate in temperatures ranging from -20°C to +60°C, making it suitable for use in diverse environmental conditions.

• Global Certification: With CE, UL, and RoHS certification, the module meets international safety and environmental standards, ensuring reliability and compliance in global applications.

Technical FAQs

1. What is the input range for the Yokogawa AAI143-H53/A4S00 module?

   • The module supports voltage inputs ranging from -10 to 10 V and current inputs from 4 to 20 mA.

2. How many channels does the Yokogawa AAI143-H53/A4S00 support?

   • The module offers 8 channels for analog input, making it ideal for small to medium-scale applications.

3. What is the accuracy of the Yokogawa AAI143-H53/A4S00?

   • The module offers an accuracy of ±0.1% of full scale, ensuring precise signal acquisition.

4. What communication protocol does the Yokogawa AAI143-H53/A4S00 use?

   • The module uses Yokogawa’s proprietary protocol for integration into DCS systems.

5. What is the power supply requirement for the Yokogawa AAI143-H53/A4S00?

   • The module requires a 24 V DC power supply.

6. What are the dimensions of the Yokogawa AAI143-H53/A4S00 module?

   • The dimensions are 125 x 160 x 40 mm, making it compact and easy to install.

7. What is the operating temperature range of the Yokogawa AAI143-H53/A4S00?

   • The module operates in a wide temperature range of -20°C to +60°C, suitable for various environmental conditions.

8. Can the Yokogawa AAI143-H53/A4S00 be used in manufacturing applications?

   • Yes, it is perfect for manufacturing environments, offering precise monitoring of process variables to improve quality control and operational efficiency.

9. What certifications does the Yokogawa AAI143-H53/A4S00 have?

   • It is CE, UL, and RoHS compliant, ensuring global safety, environmental, and quality standards.

10. Is the Yokogawa AAI143-H53/A4S00 suitable for use in power generation?

• Yes, it is ideal for power generation applications, providing essential data for monitoring key electrical parameters like voltage and current.
