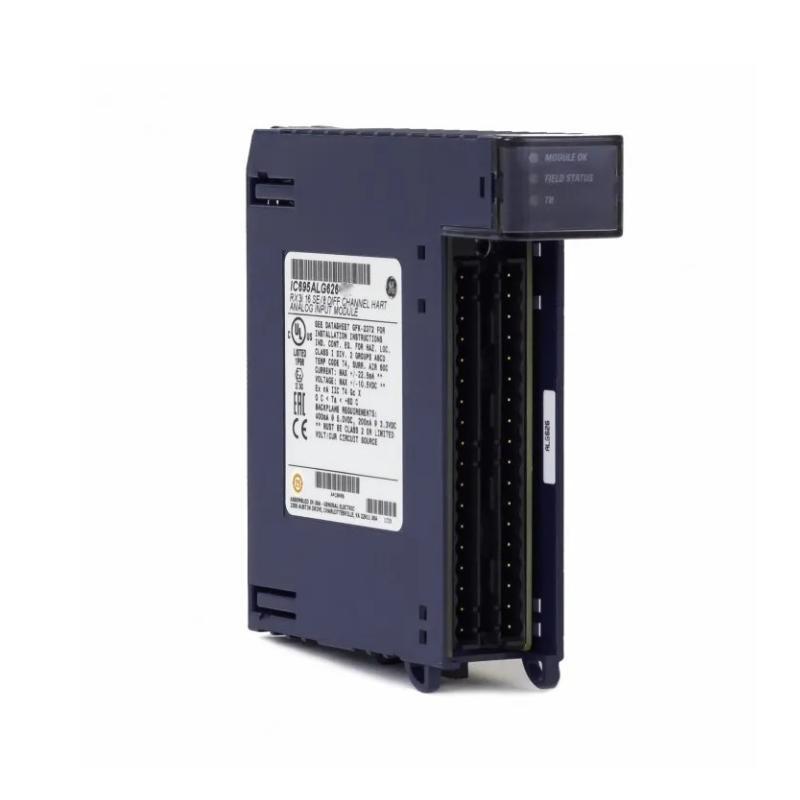

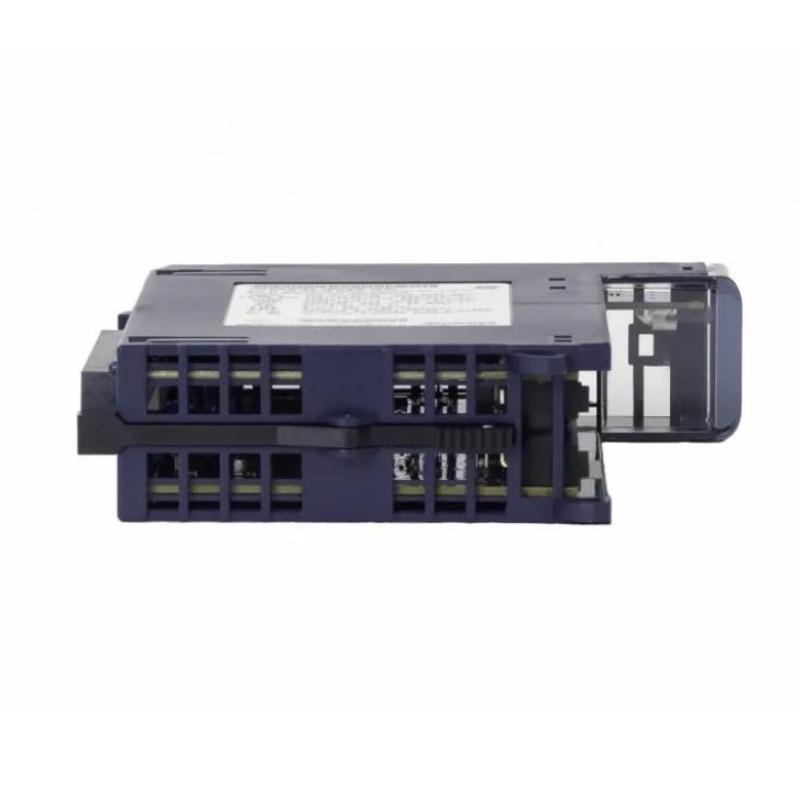

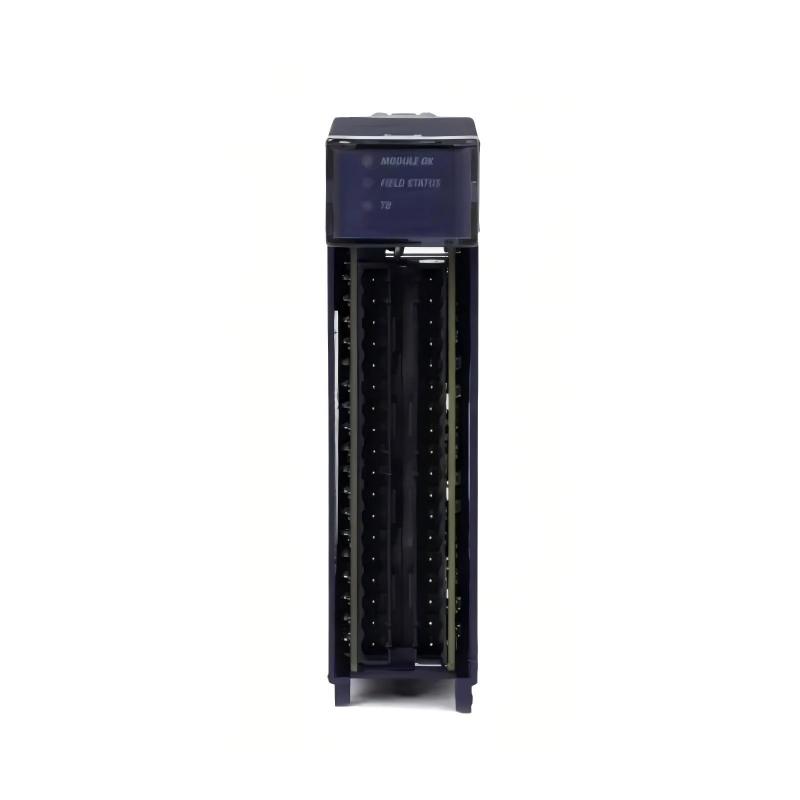

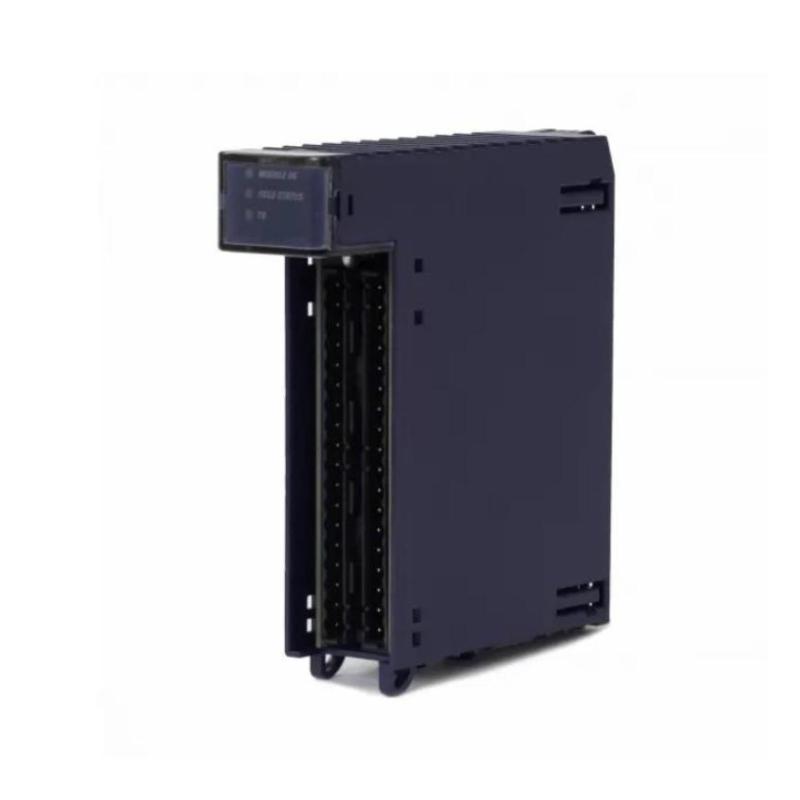

The GE IC695ALG626 is a high-density, non-isolated analog input module for the PACSystems RX3i platform, designed for advanced process signal acquisition with built-in HART communication capability.
It supports both voltage and current inputs, making it suitable for interfacing with a wide range of industrial field instruments such as pressure transmitters, flow meters, level sensors, and smart HART-enabled devices.
With 16 single-ended or 8 differential input channels, the module is optimized for large-scale data acquisition systems where high channel density, diagnostic capability, and smart device communication are required.
This module is widely used in process automation, oil & gas, chemical plants, and energy systems, where precision monitoring and intelligent field diagnostics are essential.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (Emerson Automation) |
| Model | IC695ALG626 |
| Product Type | Analog Input Module (HART enabled) |
| Series | PACSystems RX3i |
| Input Channels | 16 single-ended / 8 differential |
| Signal Types | Voltage & Current |
| Voltage Ranges | ±10V, 0–10V, ±5V, 0–5V, 1–5V |
| Current Ranges | 0–20 mA, 4–20 mA, ±20 mA |
| HART Protocol | HART 5.0 supported |
| Internal HART Modems | 4 |
| Resolution | 24-bit ADC |
| Data Format | IEEE 32-bit floating point / 16-bit integer |
| Input Impedance | >100 kΩ (voltage) |
| Current Input Resistance | 249 Ω ±1% |
| Overvoltage Protection | ±60 VDC continuous |
| Open Circuit Detection | ≤1 second |
| Filtering Options | 8 / 12 / 16 / 40 / 200 / 500 Hz |
| Power Consumption | ~4.5 W (typical) |
| Backplane Power | 3.3V & 5V supply |
Physical Dimensions (L × W × H)
| Item | Value |
|---|---|
| Size | 34 × 145 × 140 mm |
| Weight | ~0.28–0.63 kg |
The compact 34 × 145 × 140 mm industrial form factor and lightweight design (around 0.3 kg class) allow high-density installation in RX3i backplanes while maintaining excellent signal stability and thermal performance.
Recommended Related Models
- GE IC695ALG112 – Standard analog input module (voltage/current)
- GE IC695ALG508 – RTD temperature input module
- GE IC695ALG628 – 8-channel HART analog input module
- GE IC695CMM002 – Communication module
- GE IC695CPU310 – RX3i CPU module
Popular GE RX3i Analog & Smart Signal Modules
- HART-enabled analog input modules (ALG626 / ALG628)
- High-resolution temperature and RTD modules
- Voltage/current acquisition modules
- Distributed process control systems
- Industrial SCADA data acquisition networks
These modules are widely used in smart process automation environments requiring field device diagnostics and high-accuracy measurement.
