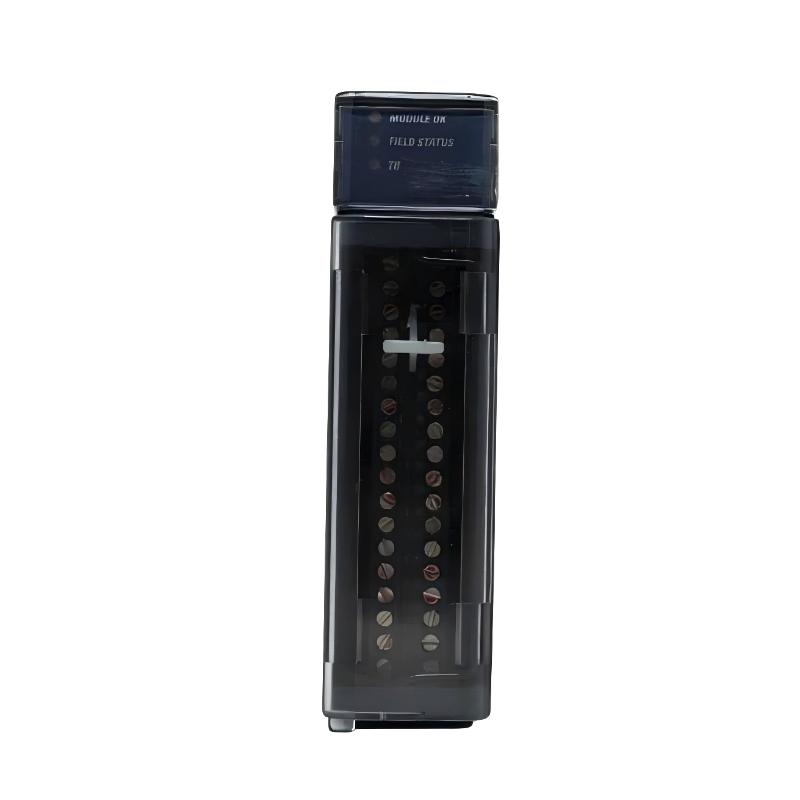

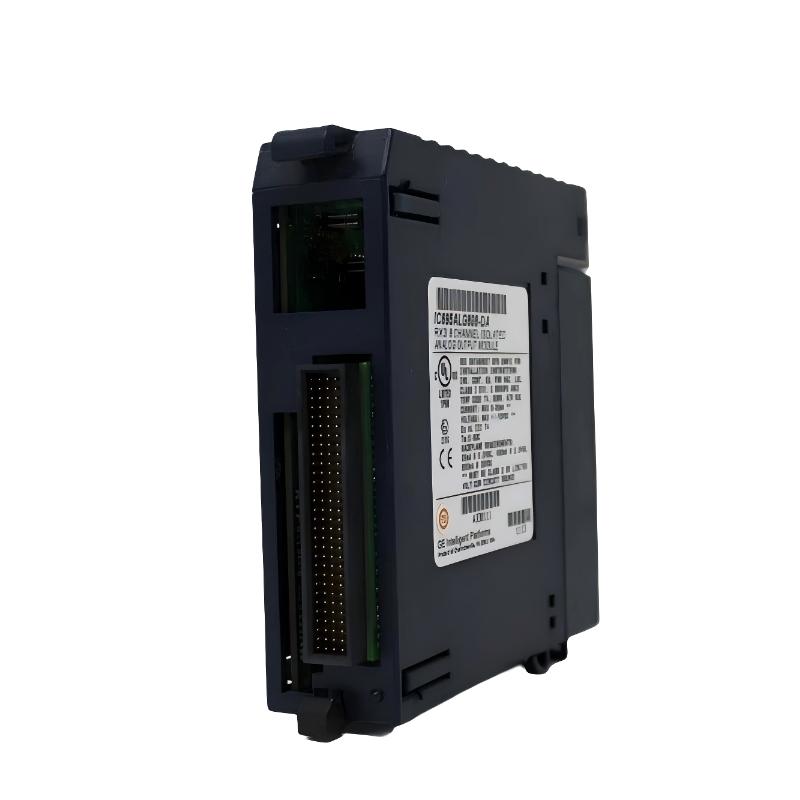

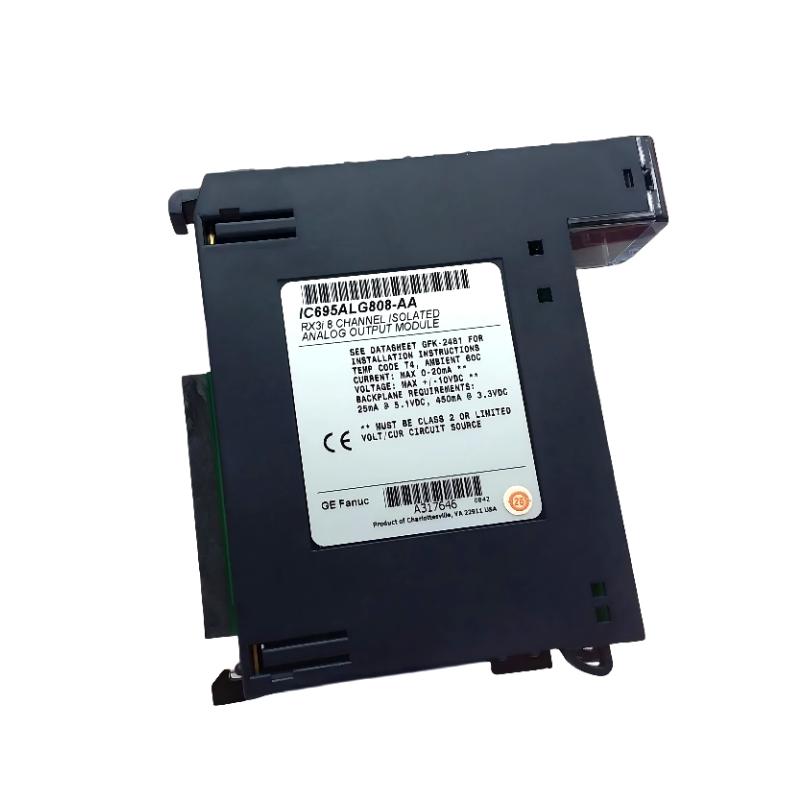

The GE IC695ALG808 is an isolated analog output module for the PACSystems RX3i platform, designed to deliver precise and stable analog control signals in demanding industrial automation systems.
It provides 8 fully configurable output channels, each capable of generating either voltage or current signals, making it suitable for controlling actuators, valves, drives, and other process control equipment.
With strong electrical isolation, high-resolution output, and flexible configuration, this module is widely used in process industries, power generation, oil & gas, and large-scale automation systems where accuracy and reliability are critical.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (Emerson Automation) |
| Model | IC695ALG808 |
| Product Type | Isolated Analog Output Module |
| Series | PACSystems RX3i |
| Output Channels | 8 configurable channels |
| Output Types | Voltage & Current |
| Voltage Range | ±10 V, 0–10 V |
| Current Range | 0–20 mA, 4–20 mA |
| Resolution | Up to 15-bit (depending on mode) |
| Update Time | ~8 ms (all channels) |
| Output Load (Current) | ≤ 1350 Ω max |
| Output Load (Voltage) | ≥ 2 kΩ min |
| Accuracy | ±0.15% FS @ 25°C |
| Power Consumption | ~7.25 W max |
| External Power Supply | 19.2–30 VDC (24 V nominal) |
| Backplane Power | 3.3 V & 5 V supply |
| Isolation | Field-to-backplane up to 2550 VDC |
| Channel Isolation | Up to 250 VAC continuous |
The module is designed with software-configurable channels, eliminating the need for hardware jumpers and simplifying commissioning.
Physical Dimensions (L × W × H)
| Item | Value |
|---|---|
| Size | 34 × 145 × 140 mm |
| Weight | ~2.0 kg (typical shipping weight) |
The compact 34 × 145 × 140 mm structure allows high-density installation in RX3i racks while maintaining strong thermal stability and electrical isolation performance.
