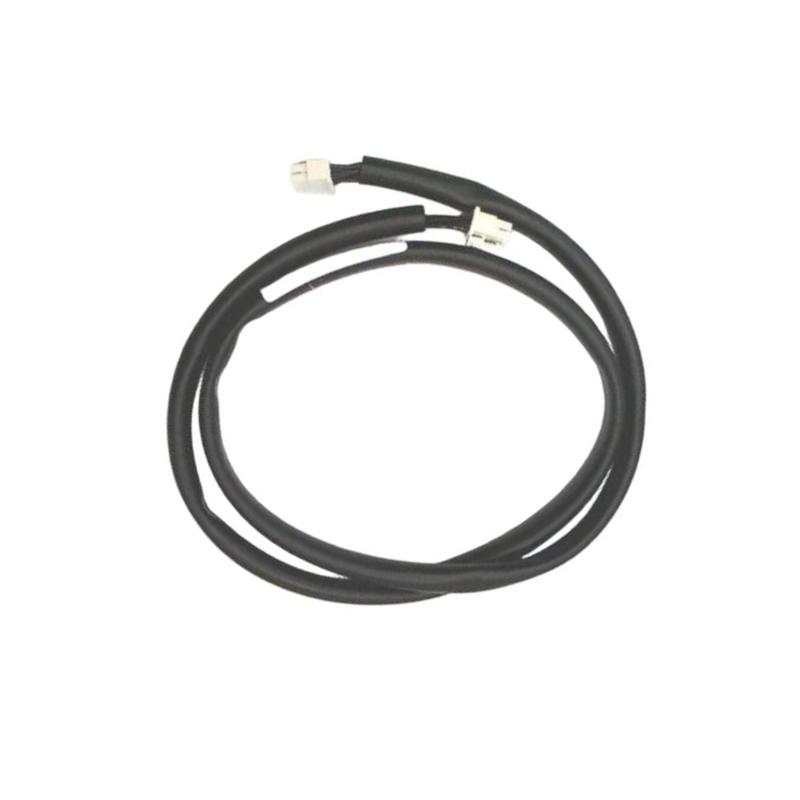

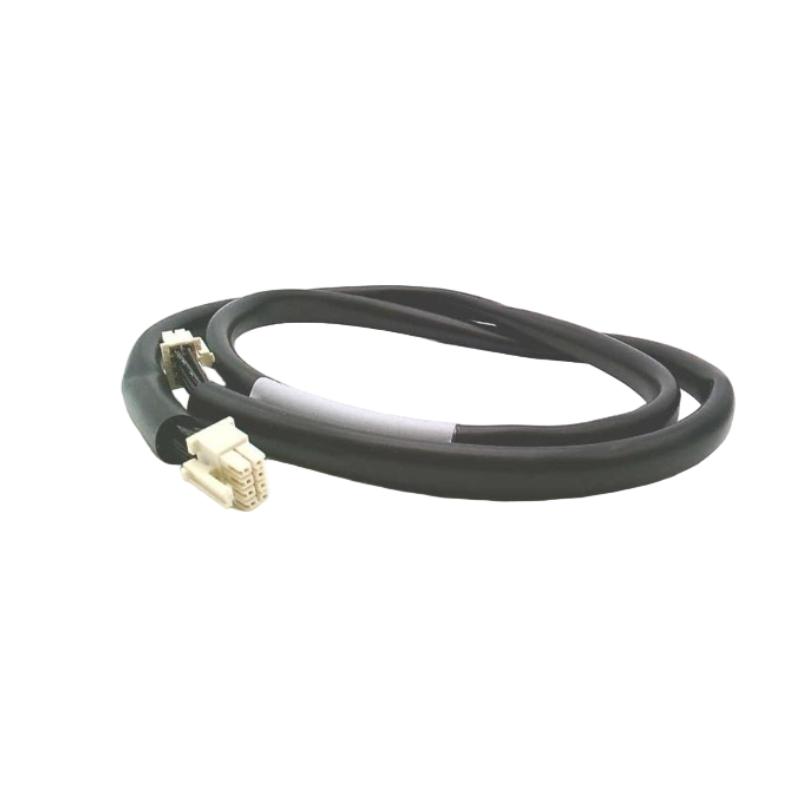

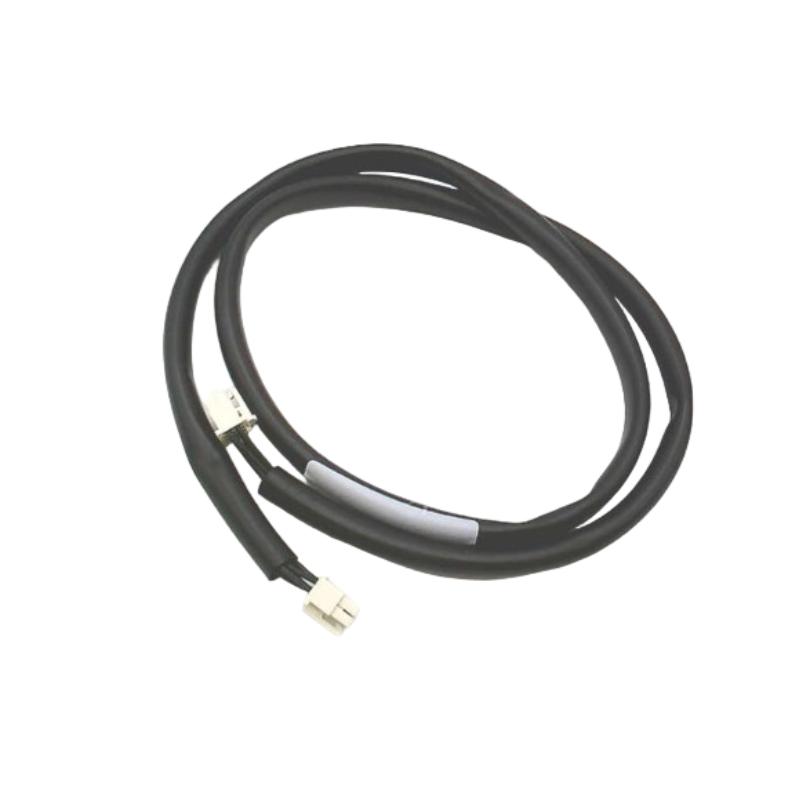

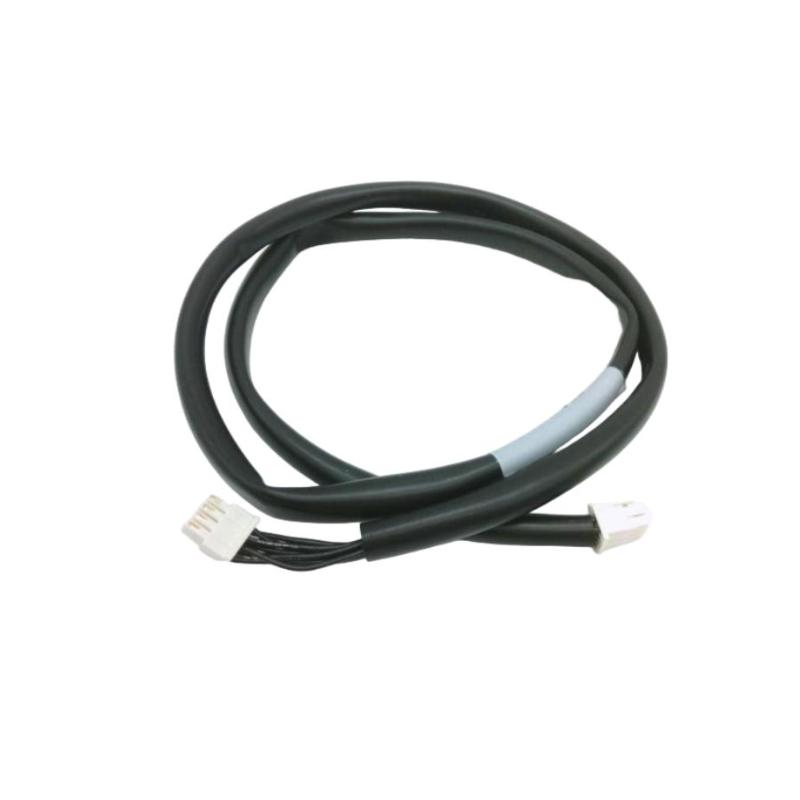

The GE IC695CBL001 is a 0.91-meter (3 ft) industrial energy pack cable designed for the PACSystems RX3i platform. It is used to connect the RX3i Energy Pack module to compatible CPU units, enabling safe energy transfer during power loss events.
Its main function is to ensure that, when the main power supply fails, the CPU can still receive enough stored energy from the energy pack to complete data backup and transfer critical memory to non-volatile storage. This helps prevent program corruption and data loss in automation systems.
It is a small but essential component in RX3i architectures, especially in high-reliability industrial control systems.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (Emerson / GE Fanuc legacy) |
| Model | IC695CBL001 |
| Product Type | Energy Pack Connection Cable |
| Series | PACSystems RX3i |
| Cable Length | 0.91 m (3 ft) |
| Wire Gauge | 24 AWG stranded |
| Voltage Rating | 300 VAC |
| Current Rating | ~3.8 A @ 95°C |
| Connector Type | Shielded industrial multi-pin connectors |
| Function | Energy Pack ↔ CPU connection |
| Shielding | EMI/RFI protection |
| Compliance | RoHS compliant |
| Operating Temperature | 0°C to 60°C |
| Wiring Type | Straight-through end-to-end connection |
The cable is specifically designed for stable power and signal transfer between the energy pack and CPU, ensuring reliable system backup behavior in industrial environments.
Physical Dimensions (L × W × H)
| Item | Value |
|---|---|
| Size | Approx. 200 × 115 × 57 mm (packaged) |
| Cable Length | 0.91 m |
| Weight | ~0.9 – 3.0 kg (depending on packaging) |
The cable itself is lightweight, but industrial packaging and shielding structure increase the shipping weight range to around ~1 kg class in typical supply listings.
Recommended Related Models
- GE IC695ACC400 – RX3i Energy Pack module
- GE IC695ACC402 – Capacitor Energy Pack module
- GE IC695CPE330 – RX3i CPU module
- GE IC695CHS012 – RX3i rack system
- GE IC695PWR330 – Power supply module
Popular GE RX3i Power & Backup Ecosystem
- Energy Pack modules (ACC series)
- CPU controllers (CPE series)
- Power supply modules (PWR series)
- System racks and backplanes (CHS series)
- Connection and control cables (CBL series)
These components are widely used in industrial automation systems requiring controlled shutdown and data protection.
