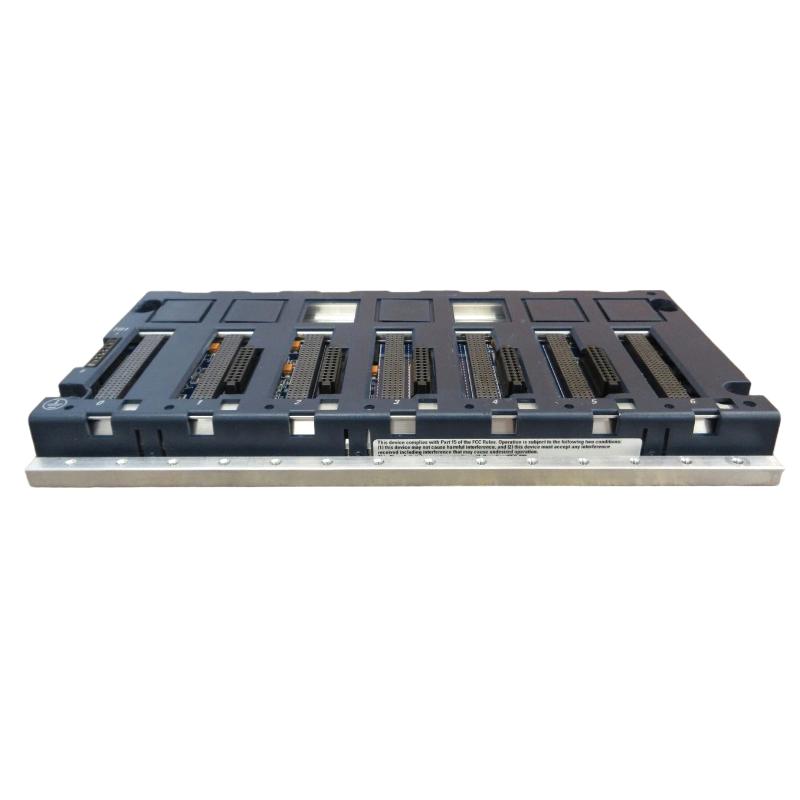

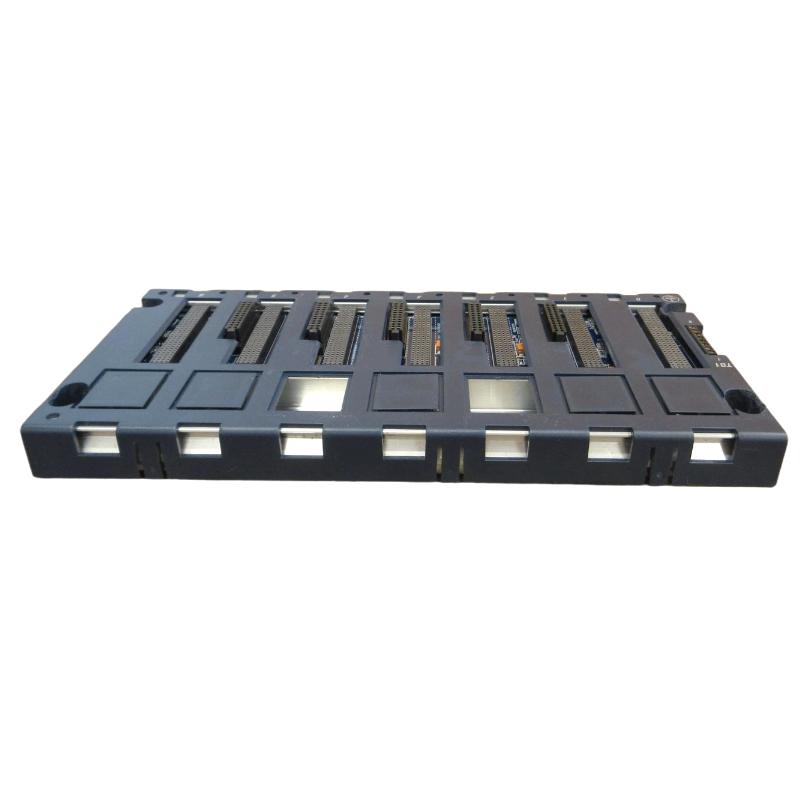

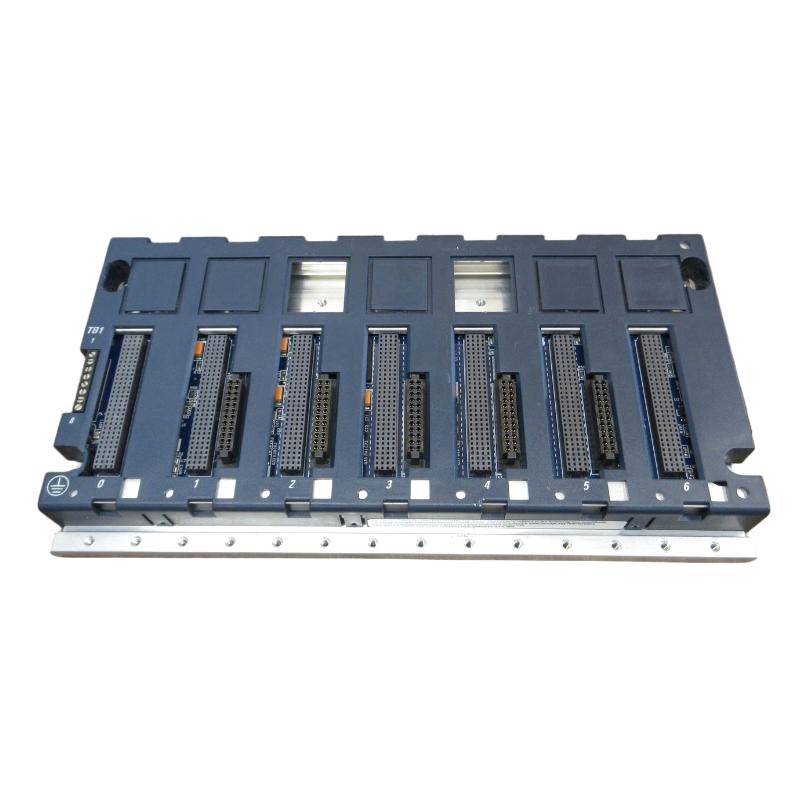

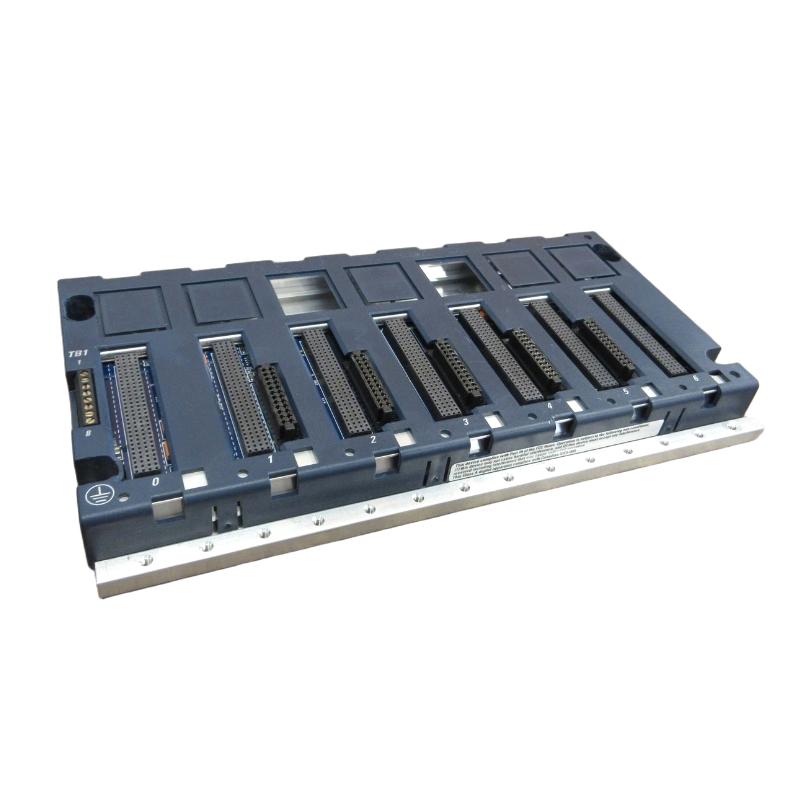

The GE IC695CHS007 is a 7-slot universal backplane (rack chassis) designed for the PACSystems RX3i automation platform. It serves as the core structural and electrical foundation that hosts CPU modules, power supplies, I/O modules, and communication modules in a single integrated control system.
Built with a dual-bus architecture (PCI + serial backplane), it allows seamless integration of both RX3i modules (IC695 series) and legacy Series 90-30/90-70 modules, making it a highly flexible solution for system expansion, modernization, and hybrid PLC architectures.
This rack is widely used in industrial automation, process control, and distributed control systems, especially where compact yet powerful PLC configurations are required.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (Emerson Automation / GE Fanuc legacy) |
| Model | IC695CHS007 |
| Product Type | Universal Backplane / PLC Rack |
| Series | PACSystems RX3i |
| Slots | 7 total slots |
| Bus Architecture | Dual bus (PCI + Serial backplane) |
| Slot 0 | Reserved for power supply only |
| Slots 1–5 | I/O, CPU, option modules (dual connector) |
| Slot 6 | PCI-only RX3i single-width modules |
| Supported Modules | IC695, IC694, IC693 series |
| Power Input | +24 VDC (external terminal strip) |
| Backplane Current | 240 mA @ 5 VDC, 600 mA @ 3.3 VDC |
| Grounding | Integrated grounding bar |
| Protection Rating | IP20 (requires enclosure) |
| Mounting Orientation | Horizontal only |
| Installation Type | Panel or enclosure mounted |
The IC695CHS007 is engineered for high reliability, flexible module configuration, and industrial-grade electrical stability.
Physical Dimensions (L × W × H)
| Item | Value |
|---|---|
| Size | 141 × 265 × 148 mm |
| Weight | ~2.5 – 3.0 kg |
The compact 141 × 265 × 148 mm design makes it suitable for space-constrained control cabinets, while still supporting a full 7-slot modular PLC configuration.
Recommended Related Models
- GE IC695CHS012 – 12-slot RX3i backplane (larger systems)
- GE IC695CPU310 – RX3i CPU module
- GE IC695PWR330 – Power supply module
- GE IC695ALG112 – Analog input module
- GE IC695MDL series – Digital I/O modules
Popular GE RX3i Rack & System Components
- Universal backplanes (7-slot / 12-slot systems)
- RX3i CPU controllers (CPE series)
- Power supply modules (PWR series)
- Analog & digital I/O modules (ALG / MDL series)
- Communication modules (ENET / CMM series)
These components are widely used in factory automation, energy systems, water treatment plants, and process industries.
