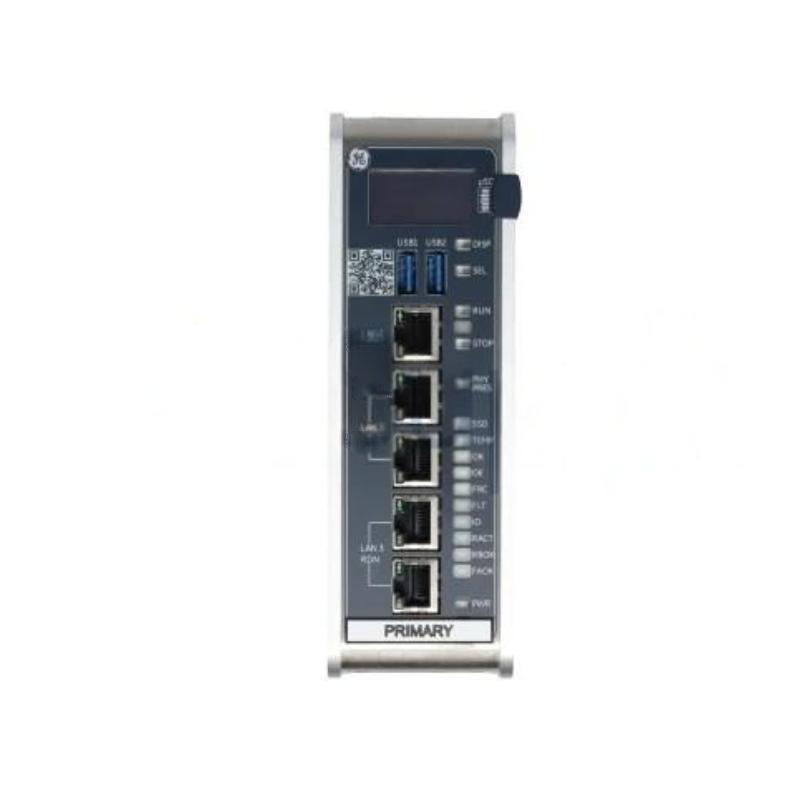

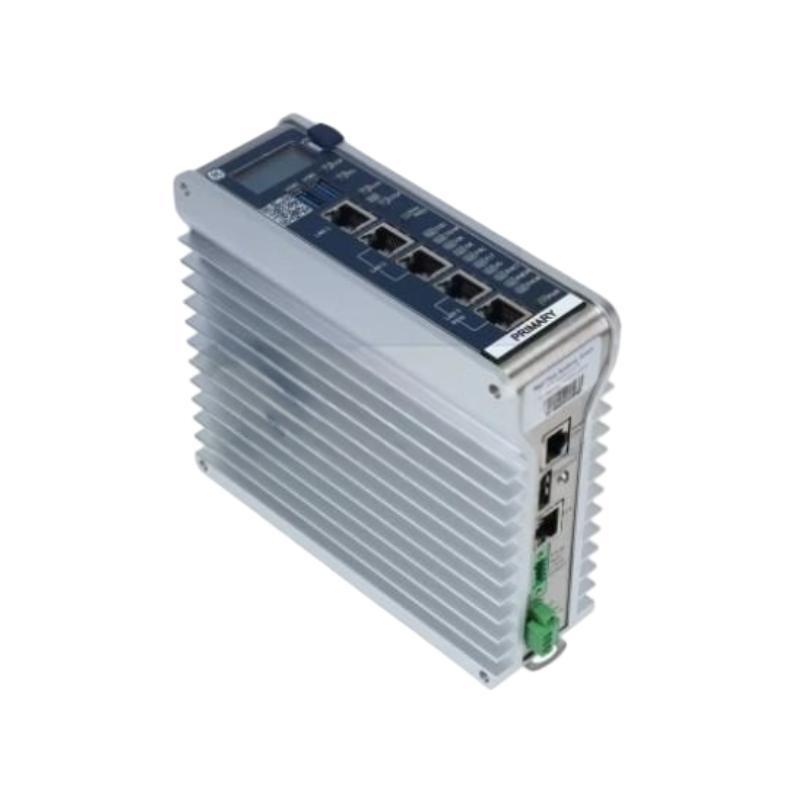

The GE IC695CPE400 is one of the most advanced CPU modules in the PACSystems RX3i series, designed for high-speed industrial automation, edge computing, and large-scale process control.
Unlike traditional rack-mounted RX3i CPUs, the CPE400 is a rackless, standalone controller that combines high-performance processing, expanded communication capabilities, and industrial-grade reliability in a compact DIN-rail form factor.
It is widely used in mission-critical applications where deterministic performance, cloud connectivity, and multi-protocol communication are required, such as energy systems, advanced manufacturing, and infrastructure automation.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (Emerson Automation / GE Intelligent Platforms) |
| Model | IC695CPE400 |
| Product Type | CPU Module (Standalone Controller) |
| Series | PACSystems RX3i |
| Processor | 1.2 GHz AMD G-Series Quad-Core |
| Architecture | 32-bit industrial control architecture |
| User Memory | 64 MB RAM + flash memory |
| Operating System | VxWorks real-time OS |
| I/O Capacity | Large-scale distributed I/O support |
| Program Blocks | Up to 768 blocks (128 KB each) |
| Programming Languages | Ladder, Function Block, Structured Text, C |
| Ethernet Ports | Multiple (up to 4 LAN interfaces) |
| Communication Protocols | SRTP, Modbus TCP, EGD |
| USB Ports | Available for diagnostics and maintenance |
| Special Feature | Embedded Field Agent (EFA) / cloud connectivity |
| Power Supply | 18–30 VDC |
| Power Consumption | ~20 W typical |
| Redundancy Support | Supported in advanced architectures |
The CPE400 is designed for edge + cloud industrial computing, allowing direct data processing at control level and integration with higher-level analytics systems.
Physical Dimensions (L × W × H)
| Item | Value |
|---|---|
| Size | Approx. 200 × 135 × 60 mm |
| Weight | ~1.2 – 1.8 kg |
The compact DIN-rail design allows flexible installation in control cabinets without requiring a traditional RX3i backplane rack, making it unique in the CPE series.
