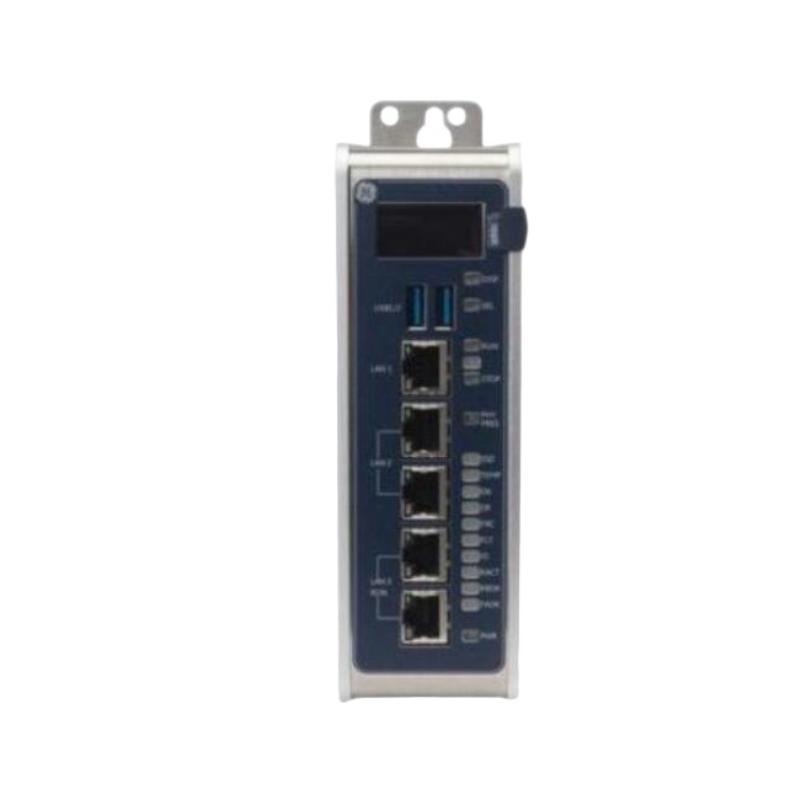

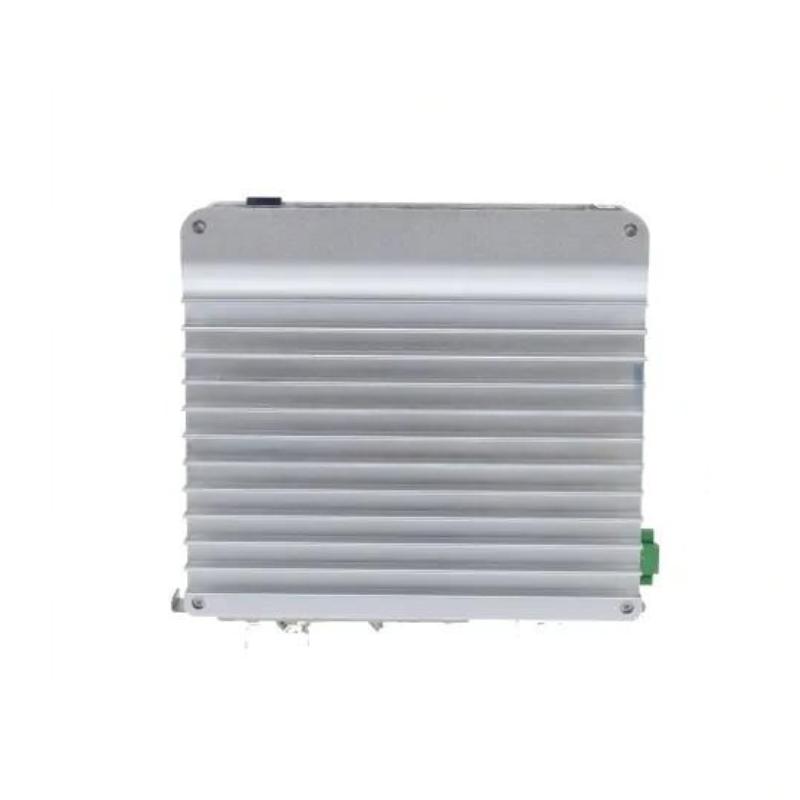

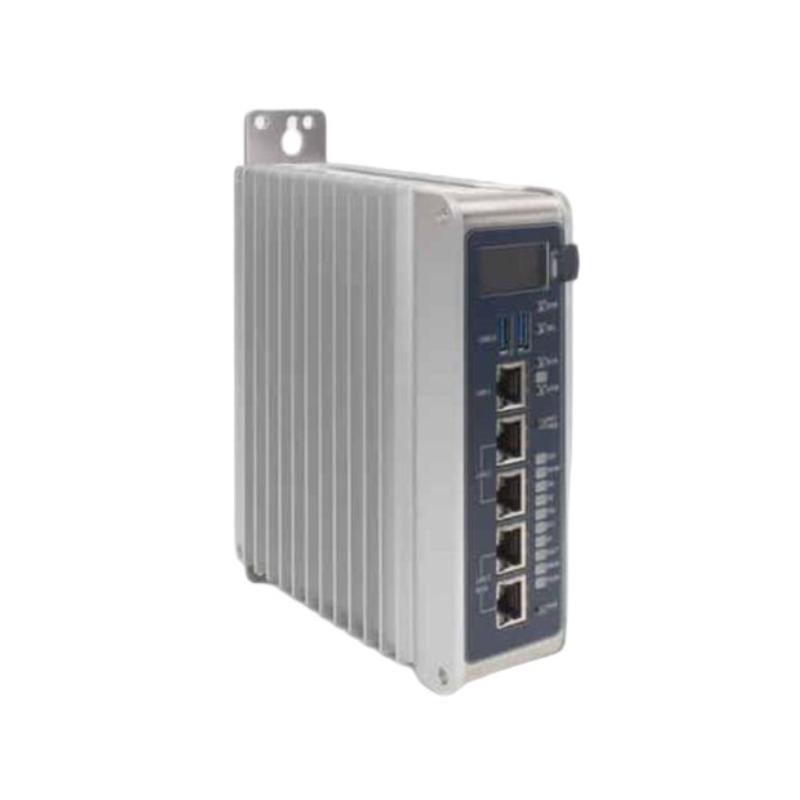

The GE IC695CPK400 is a high-performance rackless CPU module in the PACSystems RX3i platform, designed for advanced industrial automation, edge computing, and high-availability control systems.
It integrates a 1.2 GHz AMD G-Series quad-core processor, 64 MB memory, built-in communication switches, and an integrated energy pack, making it a powerful all-in-one controller for complex automation environments.
Unlike traditional rack-based CPUs, the CPK400 is a standalone controller, meaning it does not require a backplane rack. This simplifies system design while improving flexibility, installation speed, and scalability.
It is widely used in critical infrastructure, manufacturing automation, energy systems, and process industries where high-speed processing and system reliability are essential.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (Emerson Automation) |
| Model | IC695CPK400 |
| Product Type | Rackless CPU / Programmable Automation Controller |
| Series | PACSystems RX3i |
| Processor | 1.2 GHz AMD G-Series Quad-Core |
| Operating System | VxWorks real-time OS |
| User Memory | 64 MB RAM |
| Storage | 64 MB onboard + MicroSD slot |
| I/O Capacity | 32K discrete + 32K analog points |
| Communication Ports | 1 × Gigabit Ethernet + 2 × embedded switch ports |
| Additional Ports | 2 × USB 3.0 + 1 × RS-232 |
| Protocols Supported | Modbus TCP, SRTP, EGD, OPC UA, PROFINET |
| Energy Pack | Integrated backup power module |
| Redundancy | Media redundancy (MRP), system redundancy (PNSR) |
| Programming | Ladder, Function Block, Structured Text, C |
| Power Input | 18–30 VDC |
| Power Consumption | ~20 W max |
The controller is designed for high-speed deterministic control and industrial IoT connectivity, supporting both traditional PLC and modern edge-computing architectures.
Physical Dimensions (L × W × H)
| Item | Value |
|---|---|
| Size | Approx. 200 × 135 × 60 mm |
| Weight | ~1.2 – 2.0 kg |
The compact rackless design allows direct DIN-rail installation, reducing cabinet space and eliminating the need for a traditional RX3i backplane system.
Recommended Related Models
- GE IC695CPE400 – Edge computing CPU module
- GE IC695CPE330 – High-performance rack CPU
- GE IC695CPK330 – CPU with integrated energy pack
- GE IC695CHS007 – 7-slot RX3i rack system
- GE IC695PWR330 – Power supply module
Popular GE RX3i CPU & Control Systems
- Rackless CPU controllers (CPK series)
- High-performance rack CPUs (CPE series)
- Redundant industrial control architectures
- Energy-backed automation controllers
- Edge + cloud industrial computing systems
These systems are widely used in large-scale industrial automation requiring high reliability, fast processing, and system integration flexibility.
