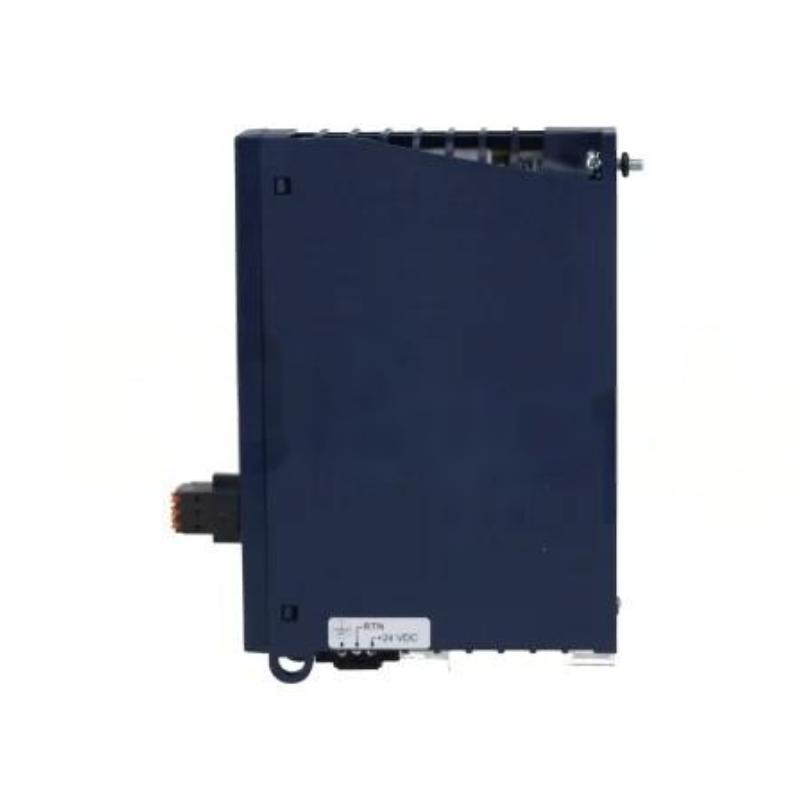

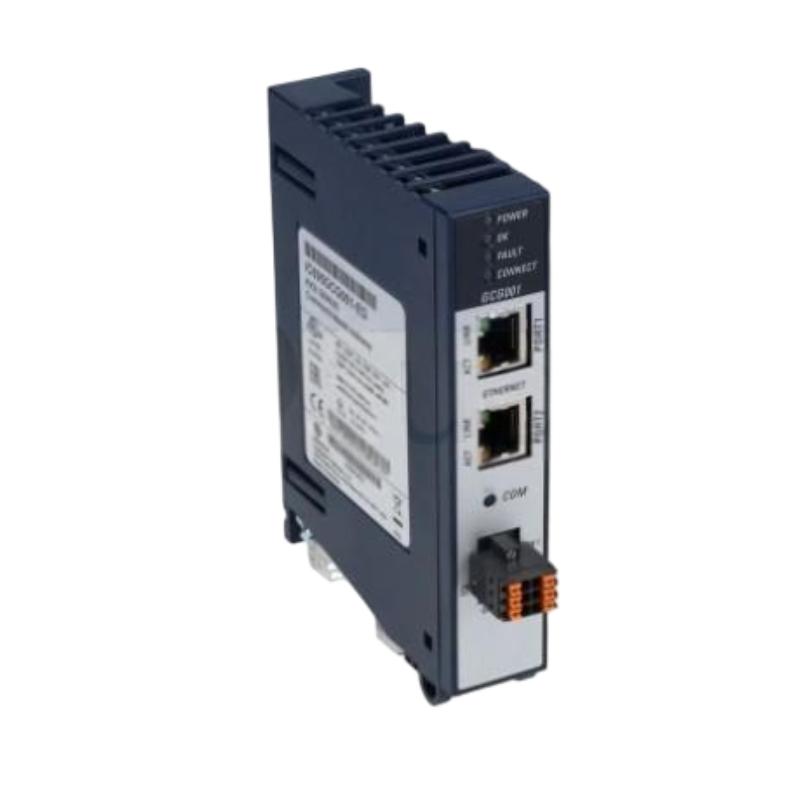

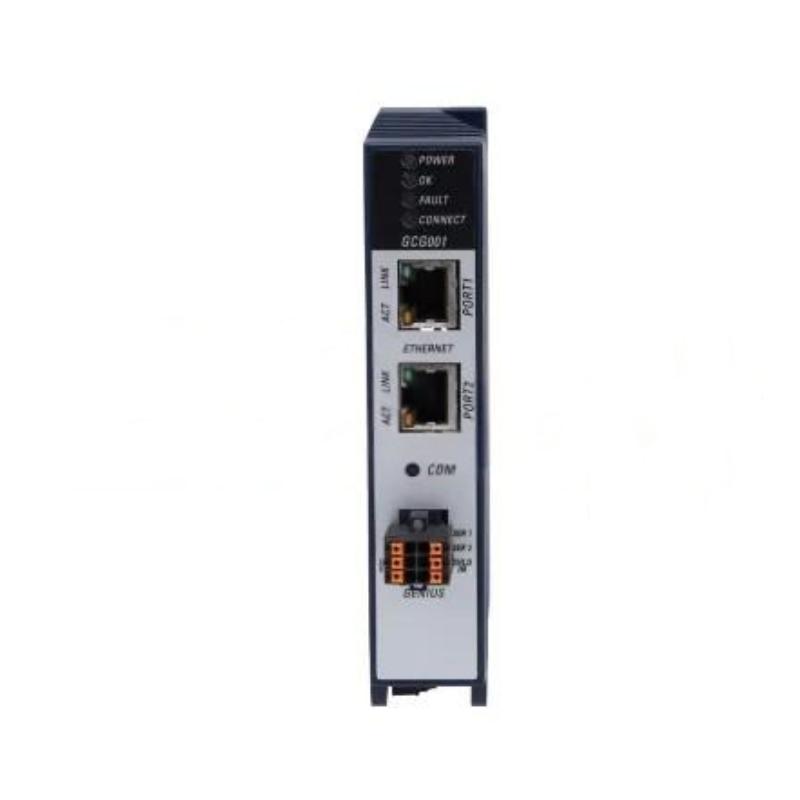

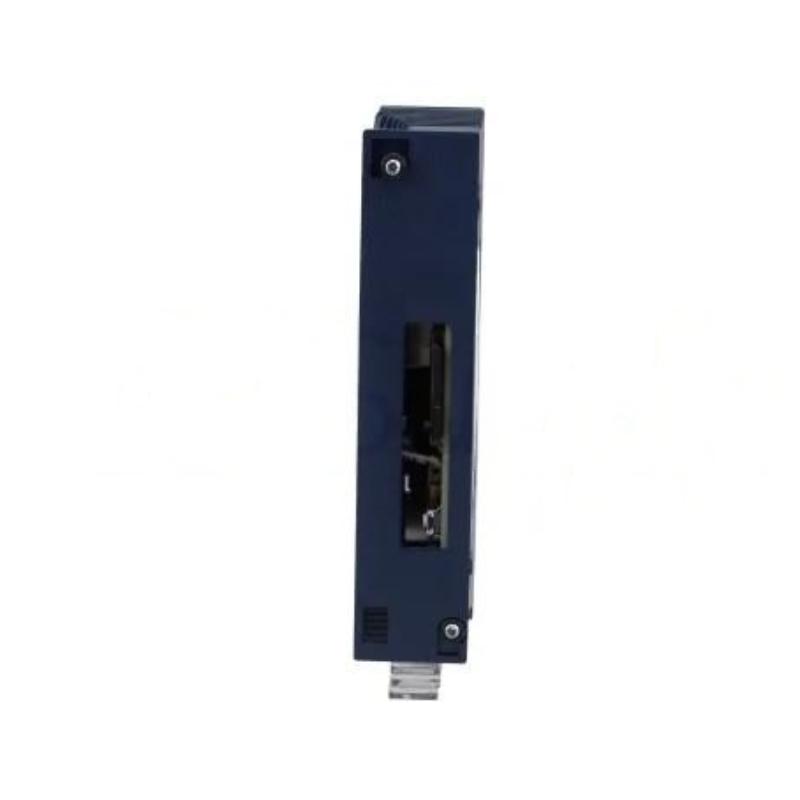

The GE IC695GCG001 is a Genius Communication Gateway module for the PACSystems RX3i platform, designed to bridge legacy Genius I/O systems with modern PROFINET-based industrial networks.
It acts as a protocol converter and I/O gateway, enabling seamless integration of older GE Genius bus devices into modern RX3i automation architectures without requiring full system replacement. This makes it a highly valuable solution for brownfield upgrades and hybrid automation environments.
The module supports both Genius serial communication and Ethernet-based PROFINET connectivity, ensuring smooth data exchange between distributed I/O and PLC controllers in real time.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | GE (Emerson Automation / GE Intelligent Platforms) |
| Model | IC695GCG001 |
| Product Type | Genius Communication Gateway |
| Series | PACSystems RX3i |
| Primary Function | Genius Bus ↔ PROFINET Gateway |
| Communication Interfaces | 2 × RJ45 Ethernet + 2 × Genius serial ports |
| Supported Devices | Up to 31 Genius I/O blocks |
| Input Data Capacity | 1024 bytes per station |
| Output Data Capacity | 1024 bytes per station |
| Genius Bus Speed | 153.6 kbps |
| Ethernet Speed | 10/100 Mbps full duplex |
| Protocols Supported | PROFINET, Genius, SNMP, MRP, LLDP |
| Redundancy | Hot standby / duplex supported |
| Power Supply | 24 VDC external |
| Current Consumption | ~0.2 A max |
| Mounting | Panel or rack-mounted (RX3i system) |
| Operating Temperature | 0°C to 60°C |
The module functions as a real-time I/O data bridge, continuously scanning Genius devices and exchanging data with PROFINET controllers.
Physical Dimensions (L × W × H)
| Item | Value |
|---|---|
| Size | Approx. 133 × 50 × 125 mm |
| Weight | ~1.5 – 2.0 kg |
The compact industrial design allows installation directly into RX3i control systems while maintaining robust shielding and stable communication performance in harsh environments.
Recommended Related Models
- GE IC695CPU310 – RX3i CPU module
- GE IC695CPE330 – High-performance CPU
- GE IC695PNC001 – PROFINET controller module
- GE IC695RMX128 – Redundancy memory module
- GE IC695CHS007 – 7-slot backplane rack
Popular GE RX3i Communication Modules
- PROFINET I/O controllers
- Genius bus gateway modules
- Ethernet communication modules
- Redundant network interface modules
- Industrial protocol converters
These modules are widely used in system migration projects where legacy GE Genius systems are upgraded into modern Ethernet-based automation architectures.
