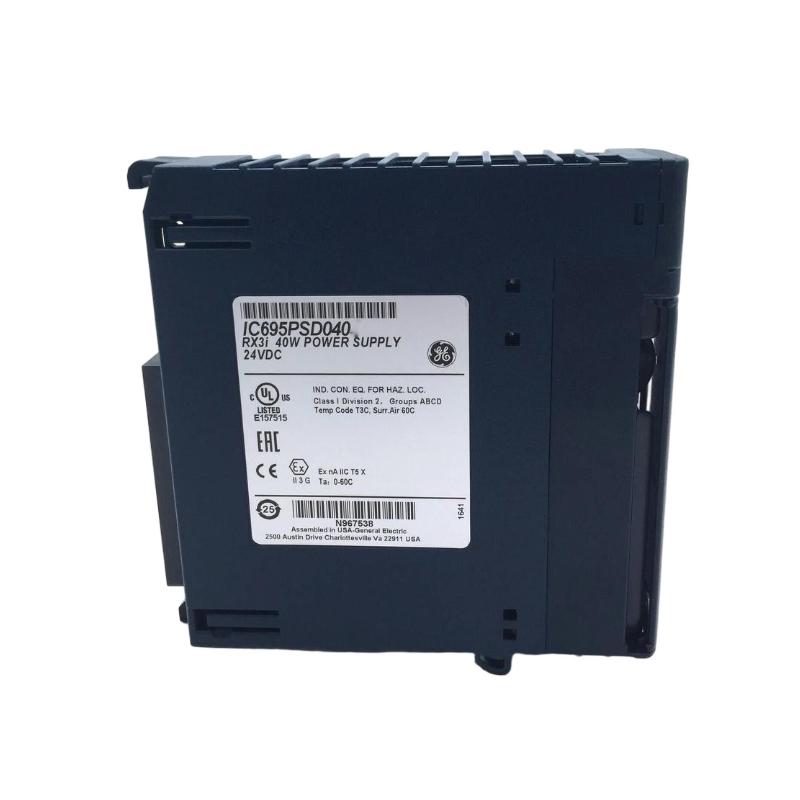

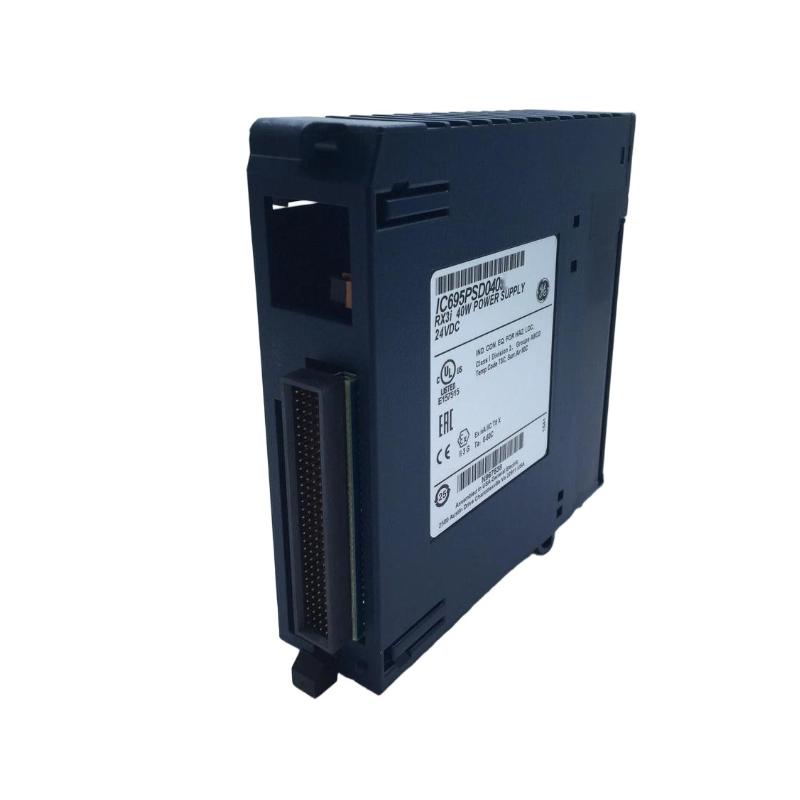

The GE IC695PDSD040 is a DC power supply module designed for the PACSystems RX3i platform. It provides stable backplane power for the entire PLC system, including CPU, I/O modules, and communication modules.
This unit is a 40W low-power supply, typically used in small to medium RX3i systems, offering reliable and efficient operation in industrial environments.
2. Technical Specifications
| Specification | Details |
|---|---|
| Model | IC695PDSD040 |
| Product Type | DC Power Supply Module |
| Series | PACSystems RX3i |
| Input Voltage | 12–30 VDC (operation) / 18–30 VDC (startup) |
| Output Power | 40 W |
| Output Voltages | +5.1 VDC, +3.3 VDC |
| Output Current | 5.1V: up to 6 A / 3.3V: up to 9 A |
| Inrush Current | 4 A (100 ms) |
| Slot Requirement | Slot 0 (backplane) |
| Protection | Overload, overtemperature, fault protection |
| Indicators | LED status indicators |
| Wiring | 14–18 AWG |
| Redundancy | Not supported |
3. Dimensions (L × W × H) & Weight
| Item | Value |
|---|---|
| Dimensions | 127 × 80 × 100 mm |
| Weight | ~0.5 kg (typical), up to ~0.9 kg shipping |
4. Key Features
- Provides stable backplane power for RX3i systems
- Dual output: 5.1V and 3.3V
- Built-in overload and thermal protection

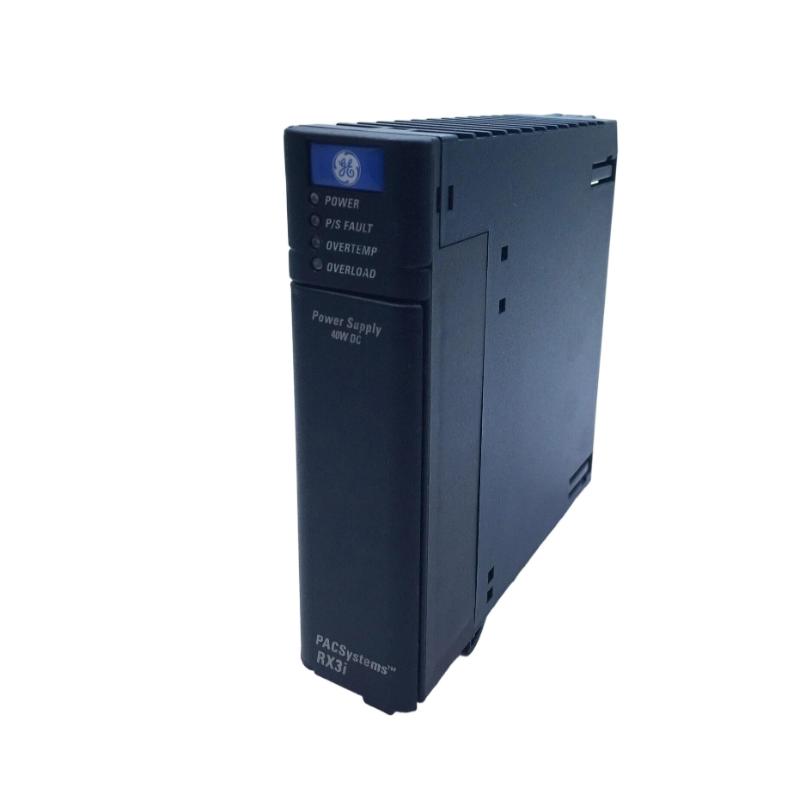

- Front-panel LED diagnostics
- Simple installation in Slot 0
- Designed for industrial reliability and long-term operation
5. System Role (Important)
In an RX3i system:
- Slot 0 → Power Supply (IC695PDSD040)
- CPU and I/O modules are installed in the remaining slots
- This module powers the entire backplane
