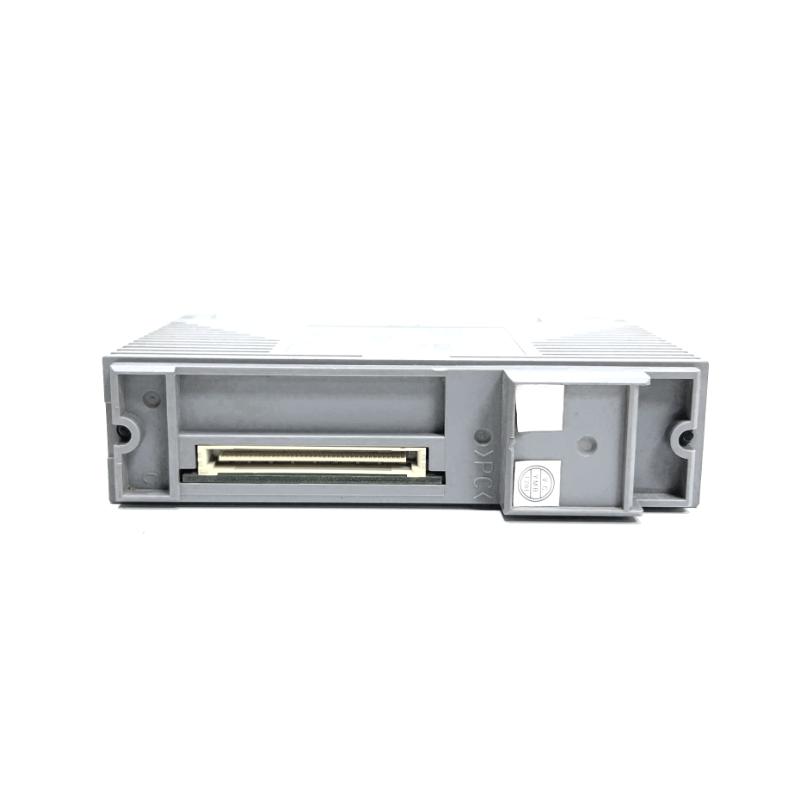

Yokogawa AAI143-S00 Analog Input Module 100% NEW

Applications

The Yokogawa AAI143-S00 Analog Input Module is suited for various industrial applications, providing real-time data acquisition and ensuring accurate control and monitoring of processes:

• Power Generation: Monitors key parameters such as voltage, current, and temperature in power plants, turbines, and electrical systems to ensure smooth operation.

• Chemical Processing: Ideal for monitoring chemical reactions, temperature, pressure, and concentration levels in reactors and processing plants.

• Oil & Gas: Provides vital analog data for oil refineries, pipeline systems, and offshore platforms, enhancing safety and operational efficiency.

• Manufacturing: Perfect for industrial manufacturing plants, offering real-time data for production processes, quality control, and system optimization.

• Water Treatment: Essential for monitoring water quality parameters, ensuring the efficient operation of treatment facilities and safe water distribution.

Advantages

• High Accuracy: The module offers an accuracy of ±0.1% of full scale, ensuring precise measurement and control in critical industrial processes.

• Versatile Input Range: It supports both voltage inputs (-10 to 10 V) and current inputs (4 to 20 mA), providing flexibility for various sensor types and applications.

• Compact and Efficient: With dimensions of 125 x 160 x 40 mm, it is designed to fit into tight spaces, making it ideal for space-constrained environments.

• Seamless System Integration: The module integrates smoothly with Yokogawa’s DCS systems, providing efficient and reliable data communication between field devices and the control system.

• Wide Operating Temperature: The AAI143-S00 can operate in extreme temperatures, ranging from -20°C to +60°C, ensuring reliable performance in diverse industrial environments.

• Certified Quality: With certifications including CE, UL, and RoHS compliance, the module meets international standards for safety, quality, and environmental responsibility.

Technical FAQs

1. What input ranges does the Yokogawa AAI143-S00 support?

   • The module supports both voltage (-10 to 10 V) and current (4 to 20 mA) inputs, offering flexibility for a variety of sensors.

2. How many channels does the Yokogawa AAI143-S00 have?

   • The module features 8 channels for analog input, making it ideal for smaller-scale applications.

3. What is the accuracy of the Yokogawa AAI143-S00?

   • It offers an accuracy of ±0.1% of full scale for precise signal processing.

4. What communication protocol does the Yokogawa AAI143-S00 use?

   • The module uses Yokogawa’s proprietary communication protocol for seamless integration into DCS systems.

5. What is the power supply requirement for the Yokogawa AAI143-S00?

   • The module operates with a 24 V DC power supply.

6. What are the dimensions of the Yokogawa AAI143-S00?

   • The module’s dimensions are 125 x 160 x 40 mm, making it compact and easy to integrate into control panels.

7. What is the operating temperature range of the Yokogawa AAI143-S00?

   • It operates within a temperature range of -20°C to +60°C, making it suitable for various environmental conditions.

8. Can the Yokogawa AAI143-S00 be used in power generation applications?

   • Yes, it is ideal for use in power generation, providing real-time monitoring of key parameters like voltage and current.

9. What certifications does the Yokogawa AAI143-S00 have?

   • It is CE, UL, and RoHS compliant, ensuring it meets international standards for safety and environmental performance.

10. Is the Yokogawa AAI143-S00 suitable for chemical processing applications?

• Yes, it is perfect for chemical processing, offering precise monitoring of critical variables such as pressure, temperature, and chemical concentrations.
