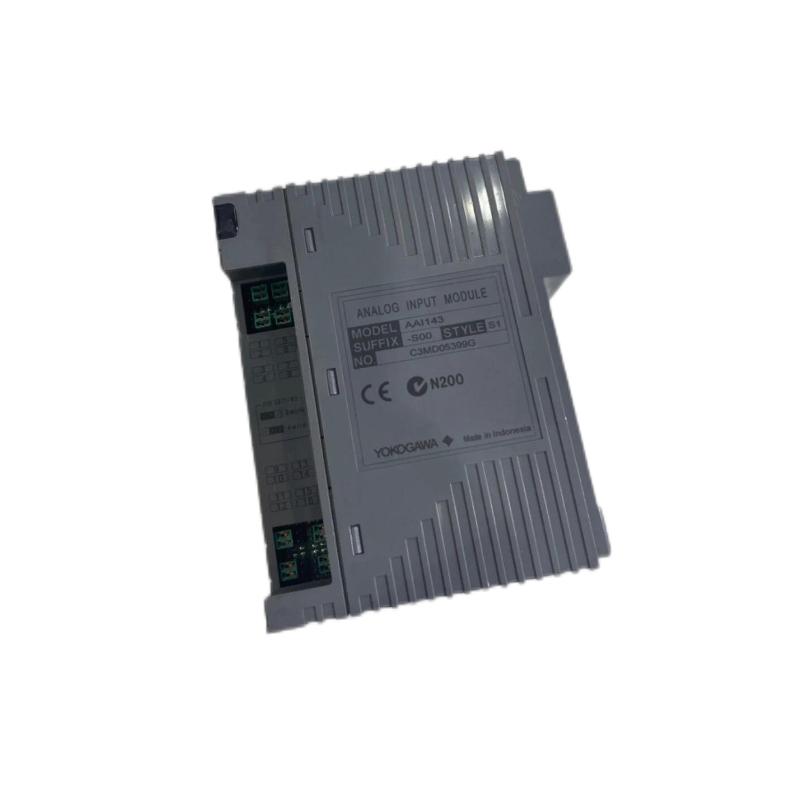

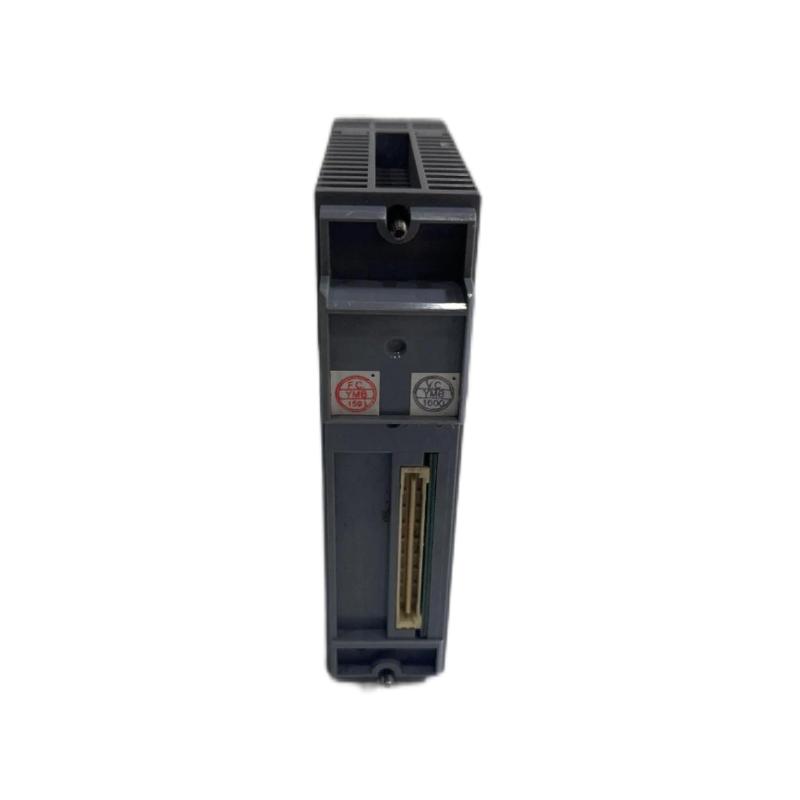

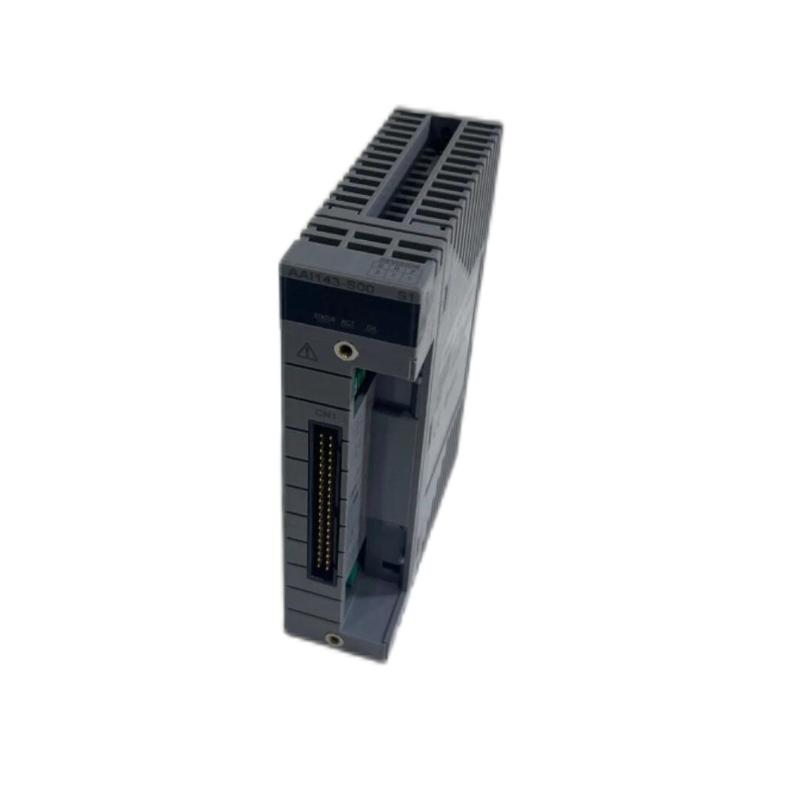

Yokogawa AAI143-S00/A4S00 Analog Input Module durable

Applications

The Yokogawa AAI143-S00/A4S00 Analog Input Module is used in diverse industrial environments where high accuracy and reliability in signal processing are essential:

• Power Generation: Monitors critical analog signals such as voltage, current, and temperature in power plants, ensuring efficient operation of equipment like turbines, transformers, and generators.

• Chemical Processing: Suitable for applications in chemical reactors, pipelines, and other processing plants, where monitoring variables like pressure, temperature, and chemical concentrations are crucial for safe operations.

• Oil & Gas: Perfect for use in oil refineries, gas processing plants, and offshore platforms, where it provides real-time data acquisition to monitor system health and performance.

• Manufacturing: Ideal for industrial automation, helping to monitor and control production processes, ensuring quality and efficiency in manufacturing environments.

• Water Treatment: Assists in monitoring water quality and optimizing the operation of water treatment plants, ensuring the safety and cleanliness of water for public consumption.

Advantages

• High Accuracy: The AAI143-S00/A4S00 ensures precise measurement with an accuracy of ±0.1% of full scale, which is critical for maintaining high performance in process control systems.

• Flexible Input Range: Supports both voltage (-10 to 10 V) and current (4 to 20 mA) inputs, offering flexibility in compatibility with a variety of industrial sensors and devices.

• Compact and Robust Design: With compact dimensions of 125 x 160 x 40 mm, the module fits easily into control panels while offering a sturdy design to withstand industrial environments.

• Seamless Integration: The module is designed to integrate smoothly with Yokogawa’s DCS, providing high-efficiency communication between field devices and control systems.

• Wide Temperature Range: Operates in a broad temperature range from -20°C to +60°C, making it suitable for use in harsh environments.

• Certified for Global Use: The AAI143-S00/A4S00 is CE, UL, and RoHS compliant, meeting stringent international standards for safety, environmental responsibility, and product quality.

Technical FAQs

1. What input ranges are supported by the Yokogawa AAI143-S00/A4S00?

   • It supports voltage inputs (-10 to 10 V) and current inputs (4 to 20 mA), ensuring compatibility with various sensor types.

2. How many channels does the Yokogawa AAI143-S00/A4S00 have?

   • The module provides 8 channels for analog input, making it ideal for medium-scale applications requiring precise signal monitoring.

3. What is the accuracy of the Yokogawa AAI143-S00/A4S00?

   • The module offers an accuracy of ±0.1% of full scale, ensuring accurate data acquisition.

4. What communication protocol does the Yokogawa AAI143-S00/A4S00 use?

   • The module utilizes Yokogawa’s proprietary communication protocol, ensuring seamless integration into the DCS system.

5. What power supply is required for the Yokogawa AAI143-S00/A4S00 module?

   • The module operates on a 24 V DC power supply.

6. What are the dimensions of the Yokogawa AAI143-S00/A4S00 module?

   • The module has compact dimensions of 125 x 160 x 40 mm, making it easy to integrate into control panels.

7. What is the operating temperature range of the Yokogawa AAI143-S00/A4S00?

   • The operating temperature range is from -20°C to +60°C, making it suitable for a wide range of industrial environments.

8. Can the Yokogawa AAI143-S00/A4S00 be used in power generation?

   • Yes, it is ideal for power generation applications, providing essential data for monitoring key parameters like voltage, current, and temperature.

9. What certifications does the Yokogawa AAI143-S00/A4S00 have?

   • The module is CE, UL, and RoHS compliant, meeting international safety and environmental standards.

10. Is the Yokogawa AAI143-S00/A4S00 suitable for chemical processing applications?

• Yes, it is well-suited for chemical processing applications, offering reliable monitoring of critical process variables like temperature, pressure, and chemical concentrations.
