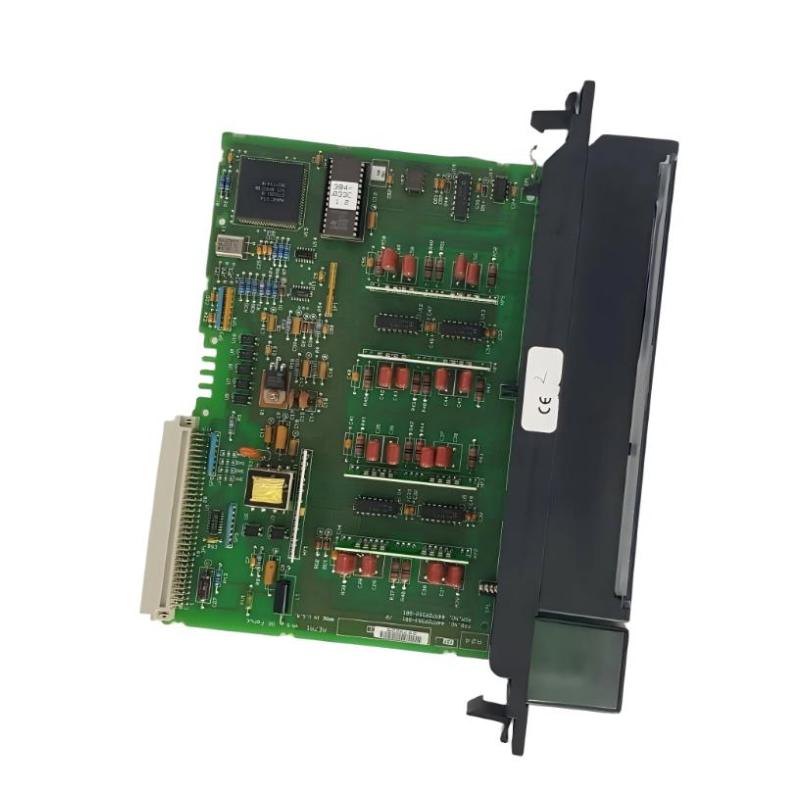

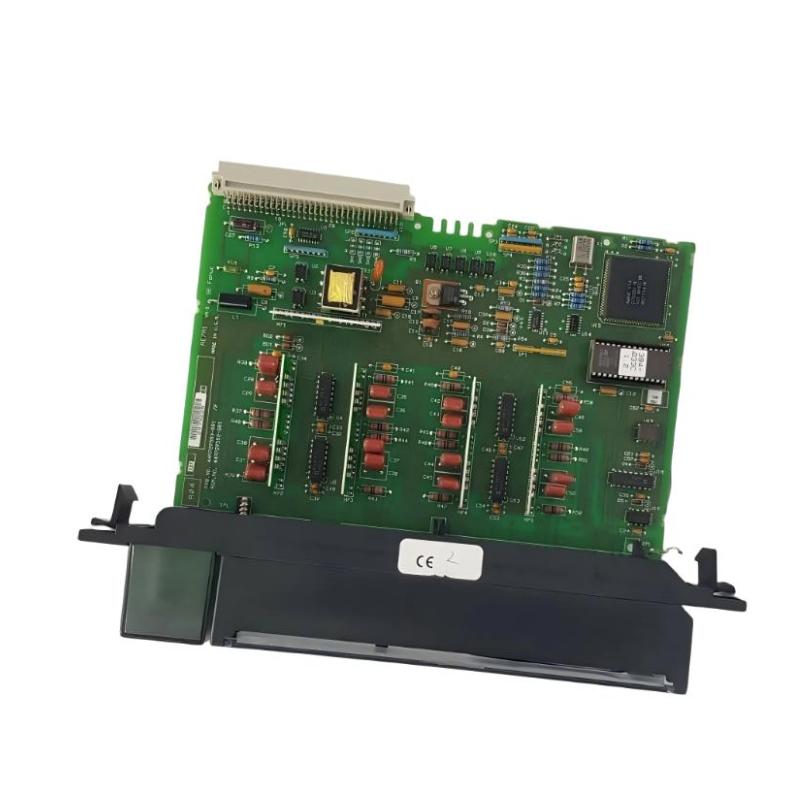

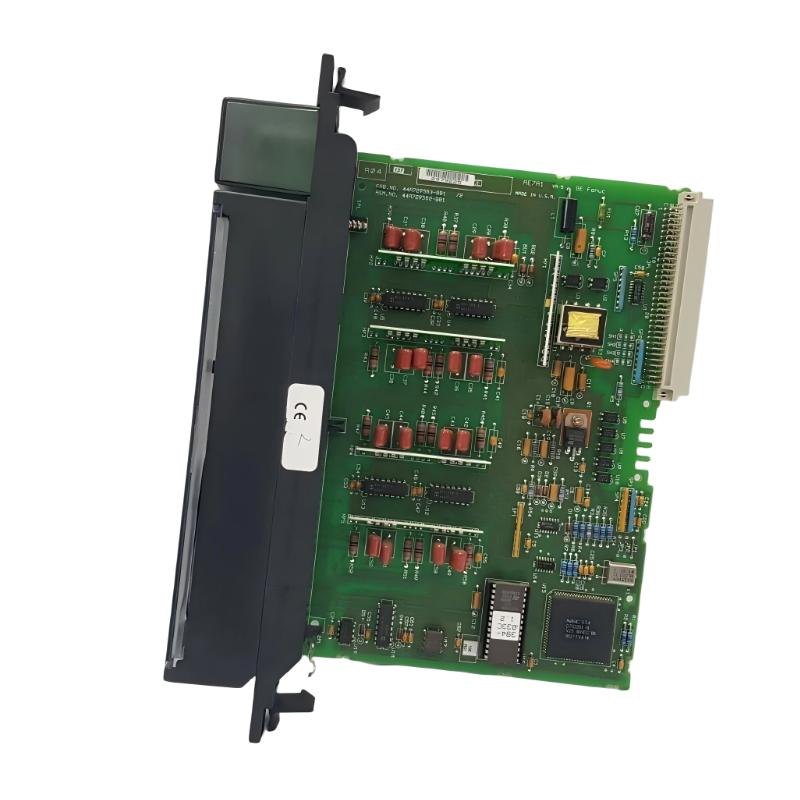

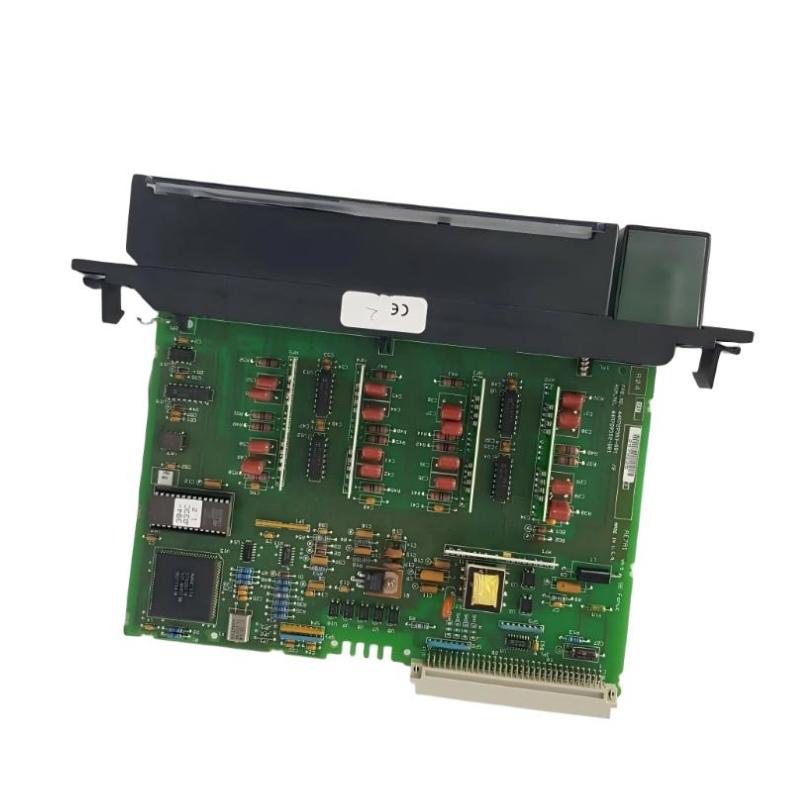

The GE IC697CLG320 is a high-performance CPU module in the GE Fanuc Series 90-70 PLC platform, designed for complex industrial automation control, high-speed logic execution, and system-level process management.
It is built for demanding environments where reliable real-time control, deterministic processing, and modular expansion capability are essential. This CPU is commonly used in large-scale automation systems such as manufacturing lines, energy infrastructure, and process control networks.
Technical Specifications
The IC697CLG320 delivers robust processing performance for industrial PLC applications.
| Parameter | Specification |
|---|---|
| Model | IC697CLG320 |
| Product Type | PLC CPU Module |
| Series | GE Fanuc Series 90-70 |
| Processor | 32-bit high-performance CPU |
| Clock Speed | 96 MHz |
| Memory | 1 MB RAM |
| System Type | Modular PLC control CPU |
| I/O Capacity | Supports distributed I/O systems |
| Communication | GE SNP / serial communication protocols |
| Programming | PLC programming software (Windows/DOS based) |
| Function | Central processing, logic control, system coordination |
| Expansion | Supports multiple I/O and communication modules |
| Operating Role | Main PLC controller |
This module is designed to handle complex logic execution and multi-task industrial automation workflows with high stability and precision.
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | ≈ 292 mm × 44 mm × 229 mm (typical Series 90-70 CPU form factor) |
| Weight | ≈ 0.8 kg – 1.2 kg |
The compact single-slot design ensures easy installation into standard GE Series 90-70 racks while maintaining strong thermal and mechanical stability.
Recommended Related Models
For a complete PLC system architecture, IC697CLG320 is commonly paired with:
- GE IC697CHS790 PLC Rack
- GE IC697PWR711 Power Supply Module
- GE IC697BEM711 Bus Receiver Module
- GE IC697BEM713 Bus Transmitter Module
- GE IC697MDL Digital I/O Modules
- GE IC697RCM711 Redundancy Communication Module
These modules together form a complete and scalable GE 90-70 automation system.
Popular GE Series 90-70 Modules
- IC697CPU772 – Redundant hot standby CPU
- IC697CPU780 – High-performance CPU module
- IC697CGR935 – Redundant controller CPU
- IC697ALG320 – Analog output module
- IC697BEM731 – Genius Bus Controller
These modules are widely used in industrial automation and long-life control systems.
