Brand:Allen Bradley PLC Item No.:Allen Bradley 25A-D2P3N104 Product Origin:USA Product Dimensions:152 × 72 × 172 mm Product Weight:1.1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

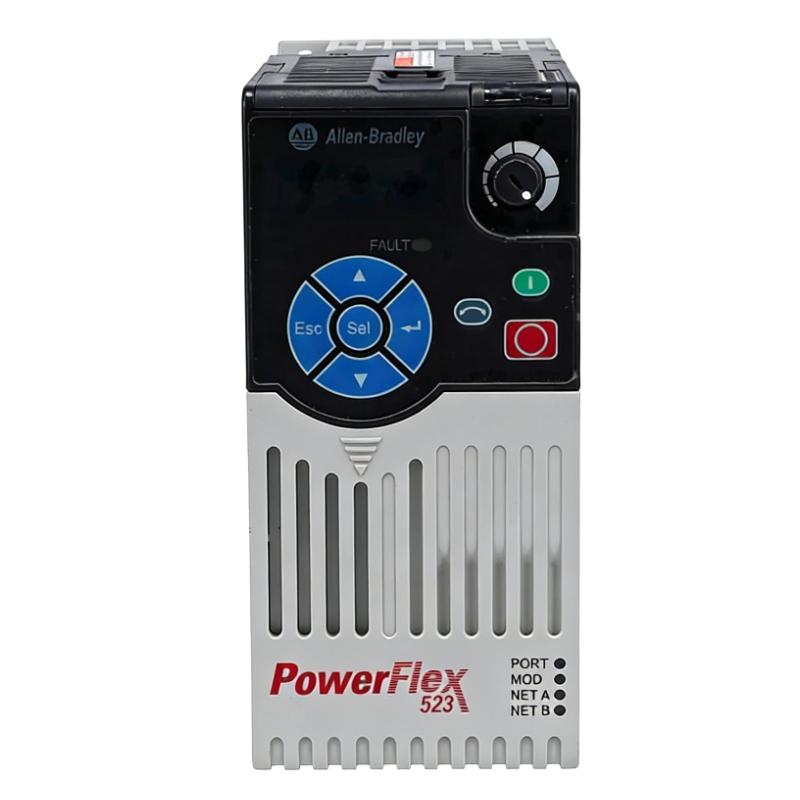

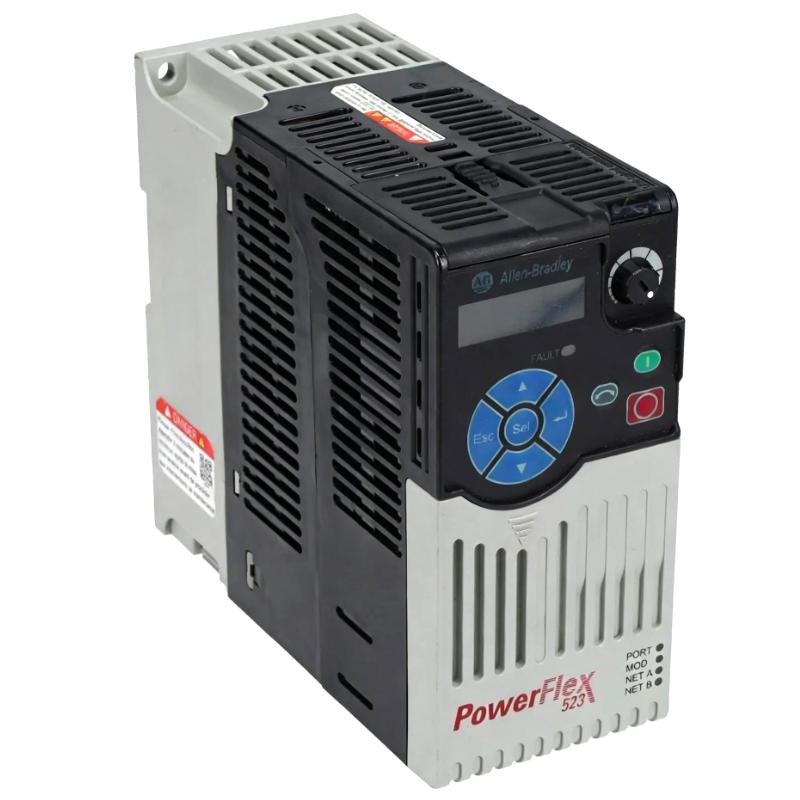

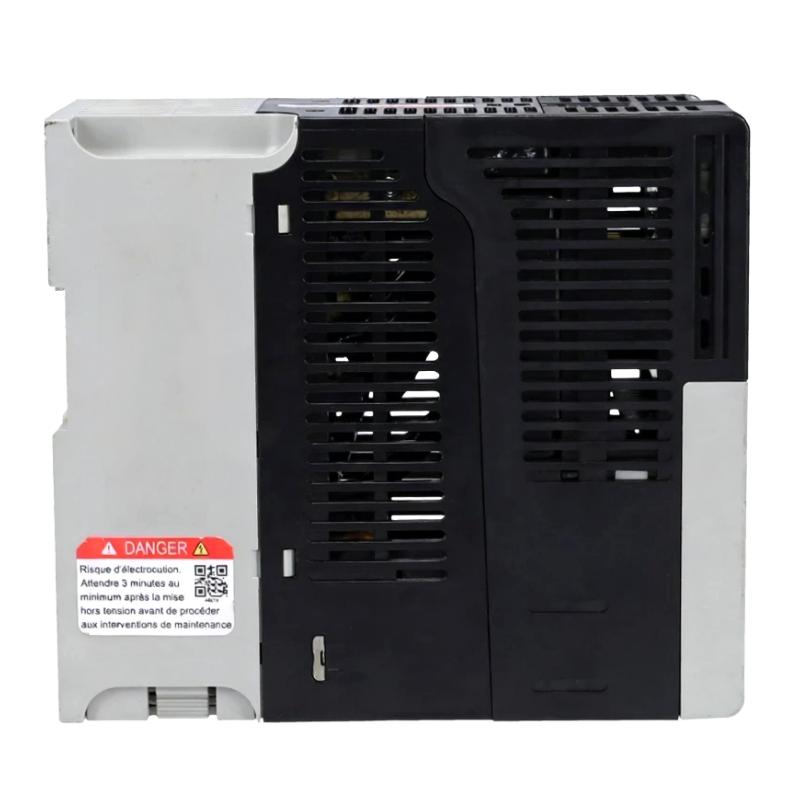

The Allen Bradley 25A-D2P3N104 PowerFlex 523 AC Drive is engineered for industrial environments that demand reliable speed regulation, flexible motor control, and efficient panel utilization. As part of the widely trusted PowerFlex 520 series, this drive delivers strong operational stability while simplifying machine integration and startup procedures.
Built for modern automation systems, the PowerFlex 523 combines compact hardware architecture with intelligent control functionality. Its versatile communication capability, energy-efficient performance, and scalable integration options make it an excellent choice for OEM equipment manufacturers, factory automation systems, and process control applications.
Designed to support continuous-duty industrial operation, the 25A-D2P3N104 offers smooth motor response, simplified maintenance, and dependable long-term performance across a broad range of industrial workloads.
Electrical & Mechanical Specifications
Parameter
Details
Manufacturer
Allen Bradley
Product Series
PowerFlex 523
Catalog Number
25A-D2P3N104
Module Type
AC Drive Module
Rated Output Power
0.75 kW / 1 HP
Input Voltage
380–480V AC
Input Phase
Three-Phase
Rated Output Current
2.3 A
Output Voltage
0–460V AC
Frequency Range
0–500 Hz
Control Methods
V/Hz, Sensorless Vector Control
Communication Port
Integrated RS485 / DSI
Safety Feature
Safe Torque Off (STO)
Enclosure Rating
IP20 / NEMA Open Type
Frame Size
Frame A
Mounting Options
Panel Mount / DIN Rail
Cooling Method
Forced Air Cooling
Digital Inputs
5
Digital Outputs
2
Analog Inputs
1
Analog Outputs
1
EMC Filter
No Internal Filter
Operating Temperature
-20°C to +50°C
Dimensions
Approx. 152 × 72 × 172 mm
Weight
Approx. 1.0–1.1 kg
Recommended Related Models
Model Number
Description
25B-D2P3N104
PowerFlex 525 AC Drive
25A-A2P5N104
PowerFlex 523 240V Drive
22F-D1P5N113
PowerFlex 4M AC Drive
22B-D4P0N104
PowerFlex 40 Drive
22-COMM-E
EtherNet/IP Communication Adapter
1769-L24ER-QB1B
CompactLogix Controller
1734-AENTR
POINT I/O Ethernet Adapter
2711P-T7C4D8
PanelView Plus Operator Terminal
Popular Allen Bradley Industrial Automation Models
Allen Bradley Model
Product Category
1756-L81E
ControlLogix CPU Module
5069-IB16
Digital Input Module
1769-IF8
Analog Input Module
20G11NC072JA0NNNNN
PowerFlex 755 Drive
2711R-T4T
Graphic Operator Terminal
1734-OB8S
Safety Output Module
1794-IE8
FLEX I/O Analog Module
1606-XLE240E
Industrial Power Supply
Industrial Application Areas
The Allen Bradley 25A-D2P3N104 is designed for applications requiring accurate speed control, reduced energy consumption, and dependable machine operation. Its compact design and advanced motor control capability make it suitable for both standalone equipment and integrated automation systems.
Typical industrial applications include:
Conveyor systems
Packaging machinery
Pump and fan control
HVAC automation
Material handling equipment
Textile machinery
Industrial mixers
Assembly automation systems
Food and beverage production lines
OEM machine manufacturing
The integrated communication functionality also helps reduce installation complexity while improving coordination between PLCs, HMIs, and distributed I/O systems.
Performance Advantages
Compact Cabinet-Friendly Design
The slim Frame A housing allows efficient use of panel space, making the drive ideal for high-density industrial control systems.
Flexible Motor Control Capability
The drive supports both V/Hz and Sensorless Vector Control, delivering stable speed regulation and improved torque response under varying load conditions.
Simplified Integration
Integrated RS485/DSI communication enables easy connectivity with existing Allen Bradley automation architectures and industrial networks.
Built-In Safety Functionality
Safe Torque Off (STO) functionality enhances machine safety while helping simplify compliance with industrial safety standards.
Energy-Efficient Operation
By adjusting motor speed according to process demand, the PowerFlex 523 helps reduce unnecessary power consumption and operating costs.
Reliable Industrial Durability
Designed for continuous industrial operation, the drive provides dependable long-term performance in demanding automation environments.
Technical FAQs
1. What is the main purpose of the 25A-D2P3N104?
It is a variable frequency AC drive used for industrial motor speed and torque control applications.
2. What motor size does this drive support?
The drive supports motors rated up to 0.75 kW or 1 HP.
3. Which input voltage is required?
The module operates with 380–480V AC three-phase input power.
4. Does the drive support sensorless vector control?
Yes. The PowerFlex 523 supports both V/Hz control and Sensorless Vector Control (SVC).
5. Is this drive suitable for conveyor applications?
Yes. It is commonly used in conveyors, pumps, fans, and packaging equipment requiring precise motor speed control.
6. What communication protocol is included?
The drive includes integrated RS485 / DSI communication and supports Modbus RTU integration.
7. Does the drive include built-in safety features?
Yes. The module includes Safe Torque Off (STO) functionality for improved machine safety.
8. What installation methods are supported?

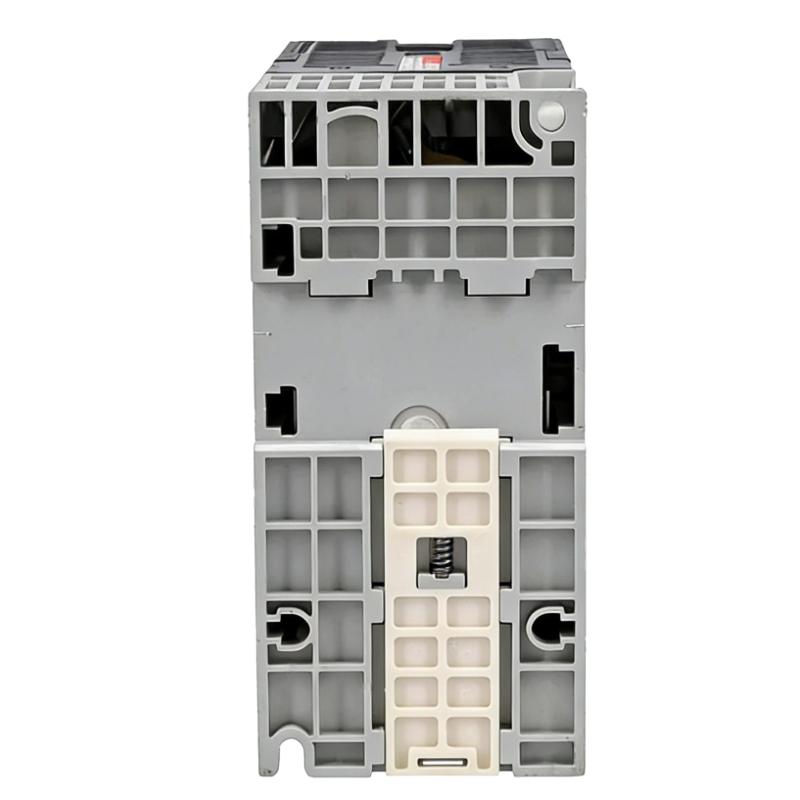

The 25A-D2P3N104 supports both panel mounting and DIN rail installation.
9. What enclosure protection rating does the drive provide?
The drive features an IP20 / NEMA Open Type enclosure intended for protected industrial control cabinets.
10. Why is the PowerFlex 523 series widely used in industrial automation?
The series is valued for its compact size, flexible motor control, energy efficiency, integrated communication, and dependable industrial performance.
