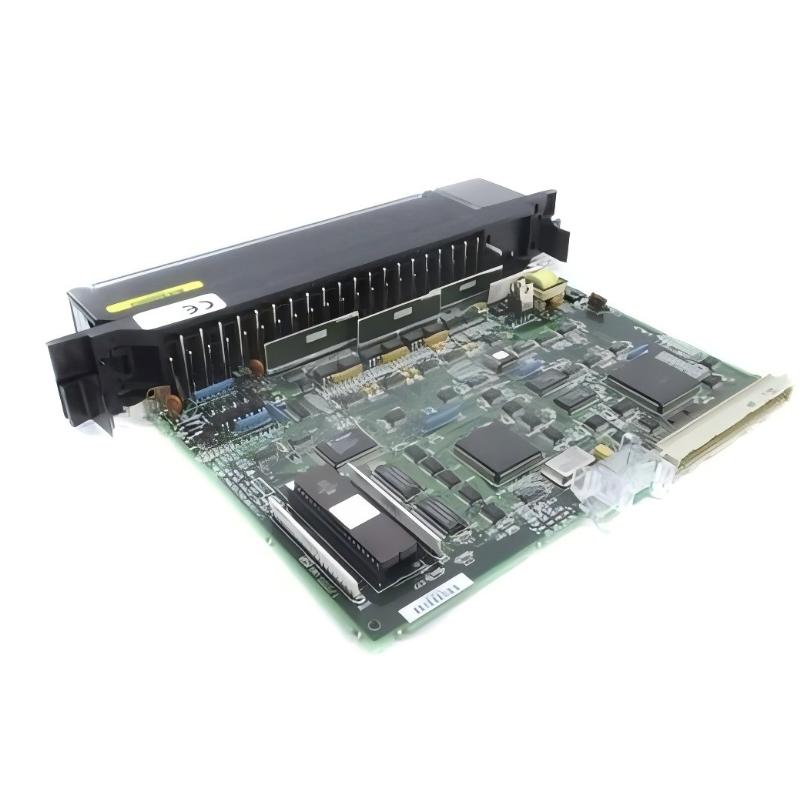

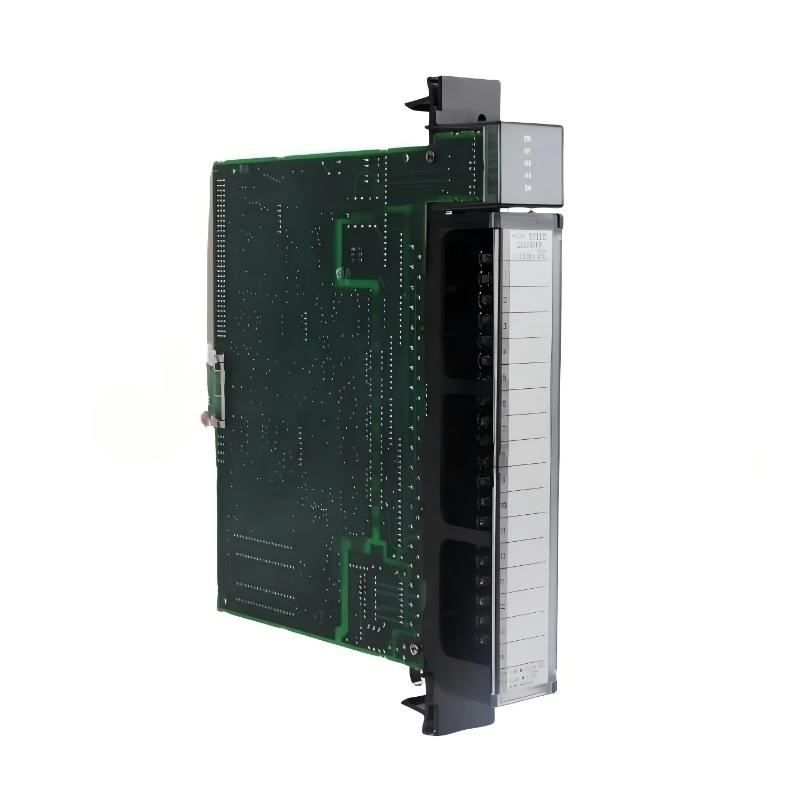

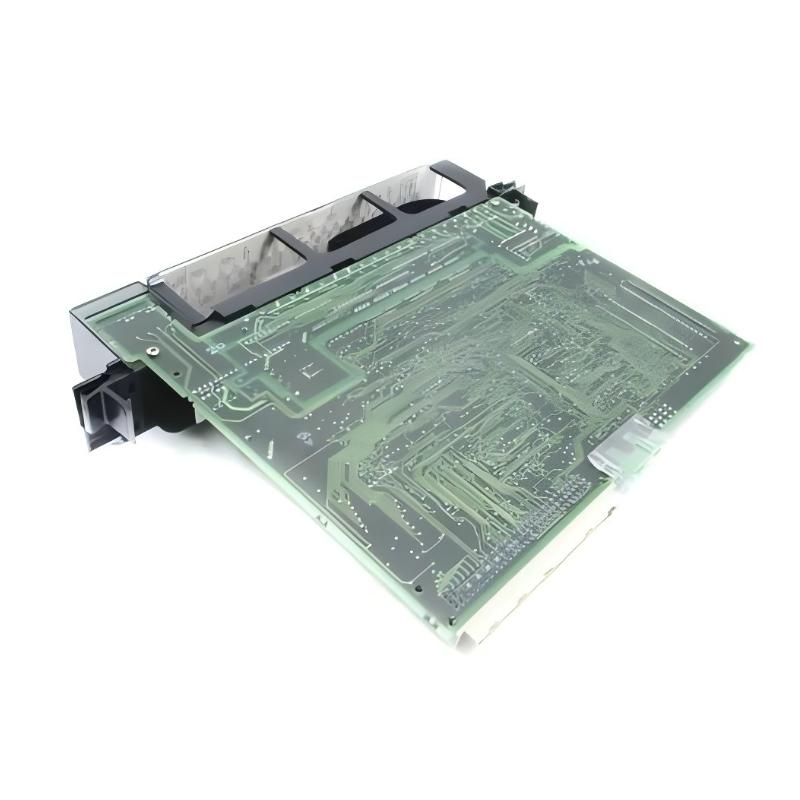

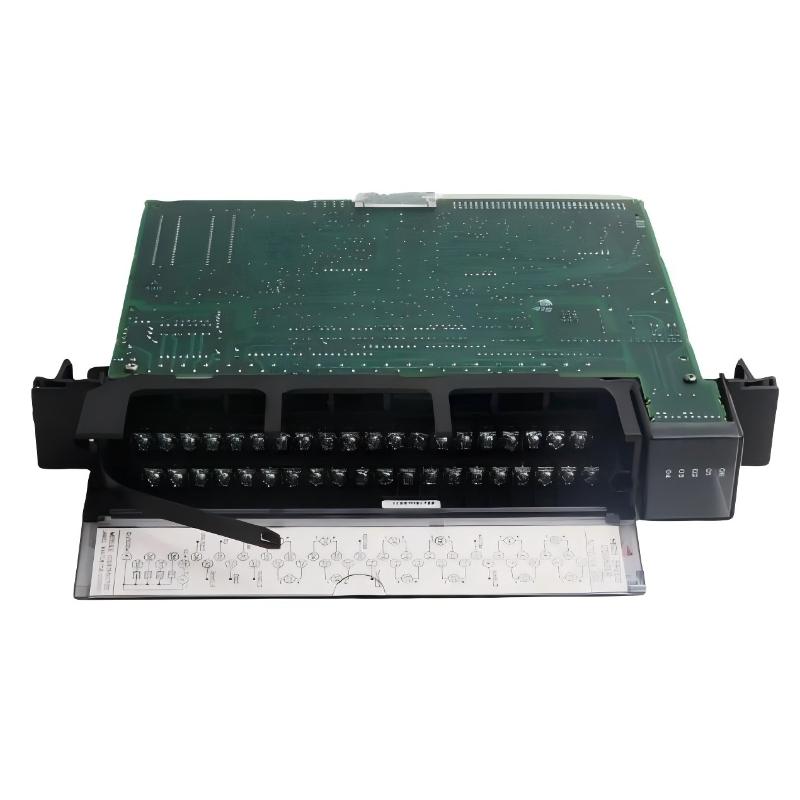

The GE IC697HSC700 is a high-speed counter (HSC) module designed for the GE Fanuc Series 90-70 PLC platform. It is used for precise high-frequency pulse counting, speed measurement, motion control, and positioning applications, operating independently from the main CPU for fast signal processing.
This module is widely applied in turbine flow measurement, encoder feedback systems, material handling, and high-speed industrial automation, where accurate real-time counting is critical.
Technical Specifications
The IC697HSC700 is optimized for high-speed signal acquisition and independent processing.
| Parameter | Specification |
|---|---|
| Model | IC697HSC700 |
| Product Type | High-Speed Counter Module |
| Series | GE Fanuc Series 90-70 |
| Input Channels | 12 (single-ended or differential) |
| Output Channels | 4 positive logic outputs |
| Counting Frequency | Up to 200 kHz (standard modes), up to 800 kHz (quadrature mode) |
| Input Voltage | 5 VDC or 10–30 VDC |
| Output Rating | 10–30 VDC, up to 20 mA |
| Processing Mode | Independent from PLC CPU (local processing) |
| Communication | Backplane + optional serial interface |
| Isolation | ~1500 V electrical isolation |
| Power Consumption | ~5 VDC backplane supply |
| Slot Requirement | Single-slot module |
The module can process high-speed pulse signals without CPU intervention, improving system responsiveness.
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | ≈ 101.6 mm × 95.3 mm × 50.8 mm |
| Weight | ≈ 0.15 kg – 0.62 kg |
