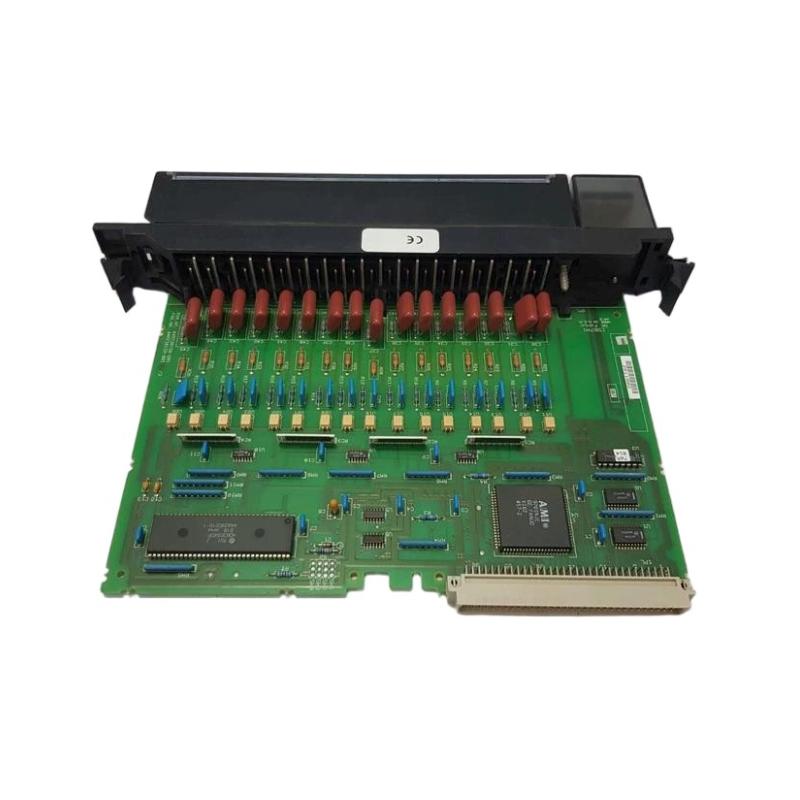

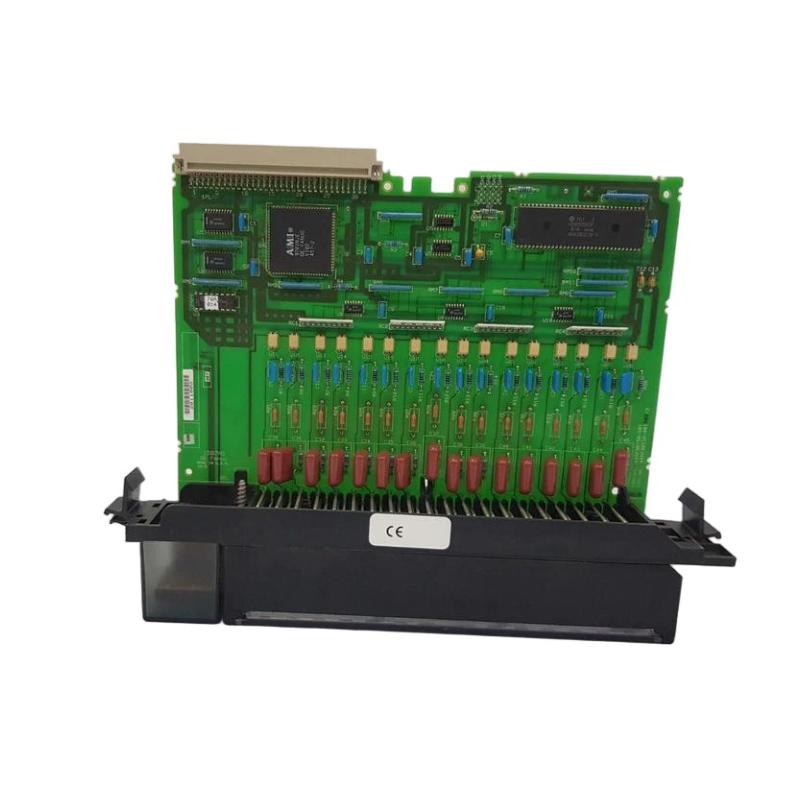

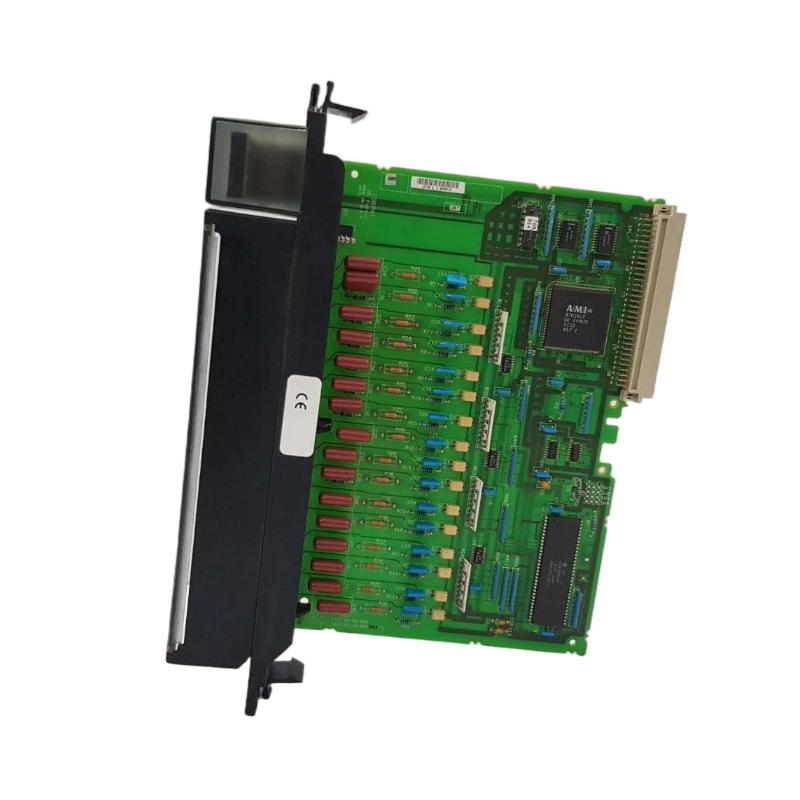

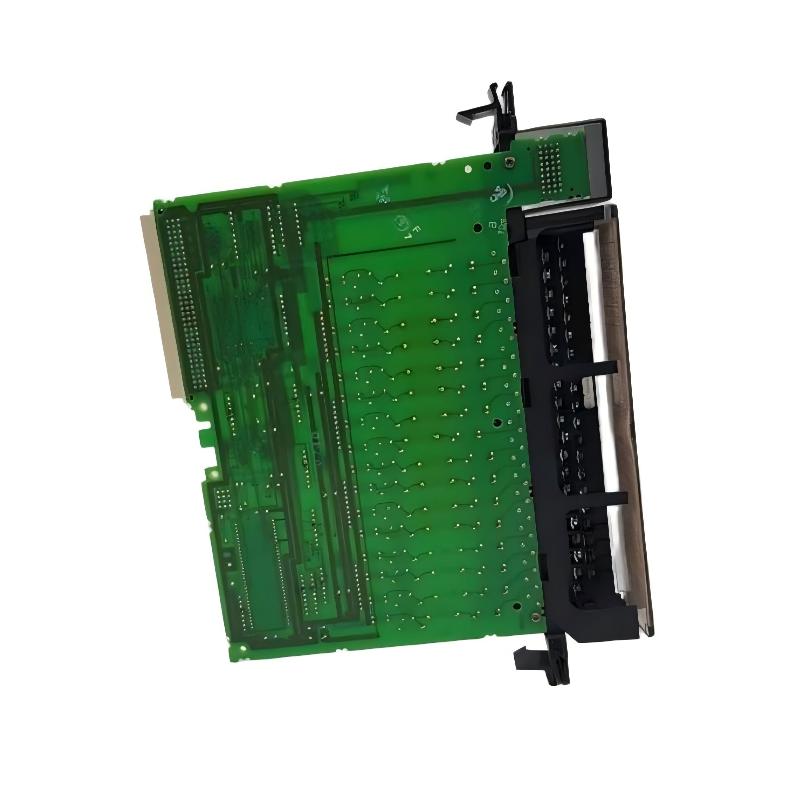

The GE IC697MDL240 is a discrete input module for the GE Fanuc Series 90-70 PLC system. It is designed to collect field ON/OFF (digital) signals from industrial devices such as switches, pushbuttons, sensors, and limit switches, and transmit them to the PLC CPU for processing.
This module is one of the most commonly used input interfaces in the 90-70 system, especially in industrial automation, manufacturing lines, power systems, and process control applications, where reliable signal acquisition is required.
Technical Specifications
The IC697MDL240 is a 120 VAC isolated input module with 16 channels.
| Parameter | Specification |
|---|---|
| Model | IC697MDL240 |
| Product Type | Discrete Input Module |
| Series | GE Fanuc Series 90-70 |
| Input Type | AC Digital Input |
| Number of Inputs | 16 isolated points |
| Rated Voltage | 120 VAC (60 Hz) |
| Input Range | 0–132 VAC |
| Input Current | ~10 mA typical |
| Filter Delay | ~20 ms |
| Isolation | 1500 VAC (input to backplane) |
| Backplane Current | ~0.25 A @ 5 VDC |
| Wiring Type | Removable terminal block |
| Status Indicators | LED per input channel |
| Slot Requirement | Single-slot module |
The module supports industrial-grade isolation and noise-resistant signal acquisition, making it suitable for harsh environments.
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | ≈ 292 mm × 229 mm × 38 mm |
| Weight | ≈ 0.5 kg |
