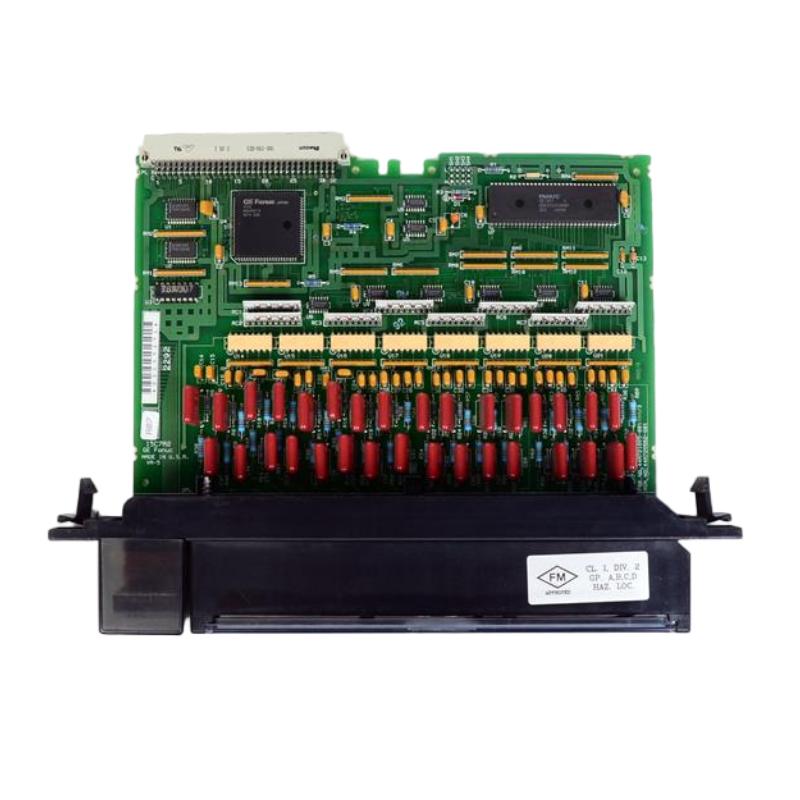

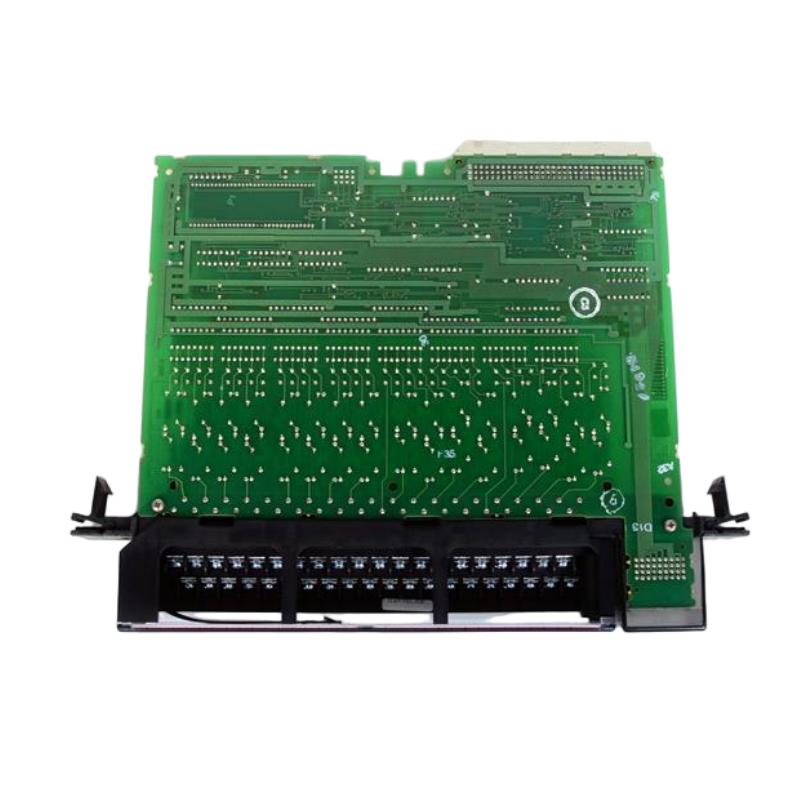

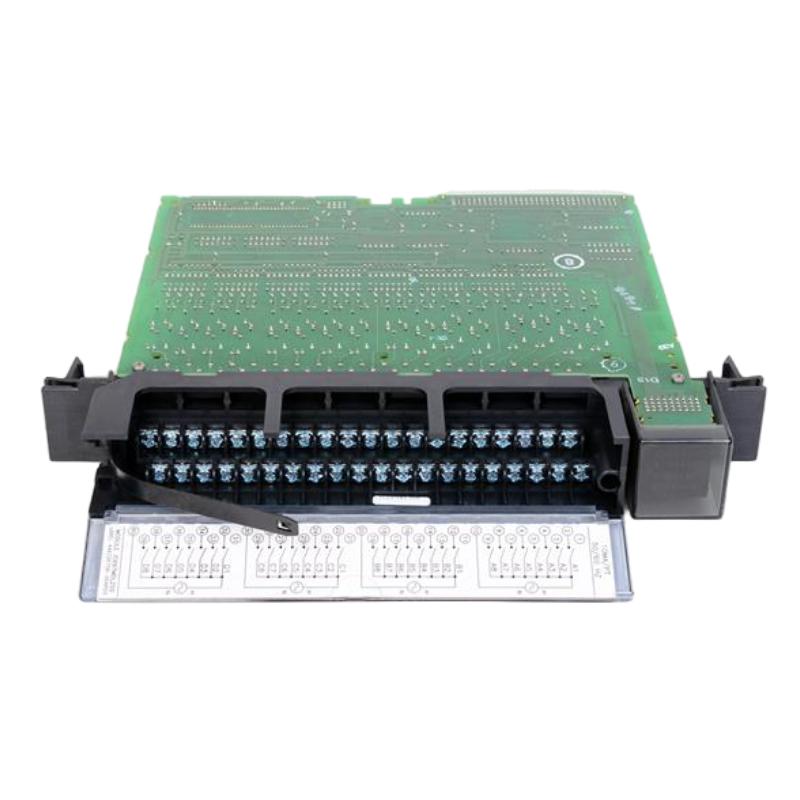

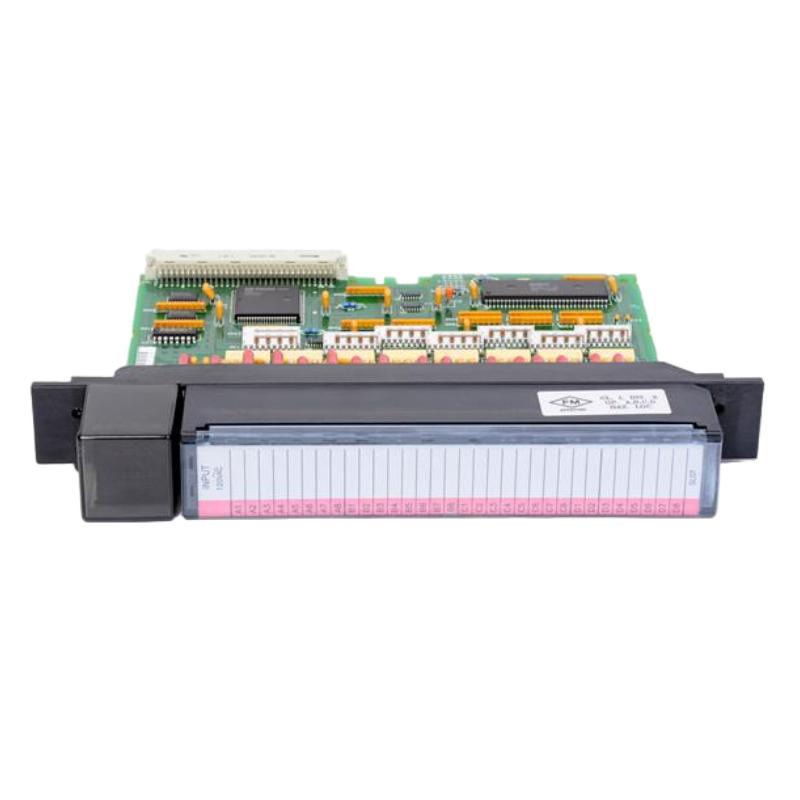

The GE IC697MDL250 is a high-density discrete output module for the GE Fanuc Series 90-70 PLC system. It is designed to control industrial AC loads such as relays, solenoids, contactors, and indicator devices, providing reliable switching capability for automation systems.
This module is widely used in manufacturing lines, process control systems, power plants, and heavy industrial automation, where multiple output points are required in a compact form factor.
Technical Specifications
The IC697MDL250 is a 32-point 120 VAC output module with group isolation.
| Parameter | Specification |
|---|---|
| Model | IC697MDL250 |
| Product Type | Discrete Output Module |
| Series | GE Fanuc Series 90-70 |
| Output Type | AC Digital Output |
| Number of Outputs | 32 points |
| Output Configuration | 4 groups of 8 points |
| Rated Voltage | 120 VAC |
| Operating Range | 85–132 VAC |
| Frequency | 47–63 Hz |
| Output Current | 0.5 A per point |
| Max Module Current | 16 A total |
| Isolation | Group isolated (4 groups) |
| Response Time | Fast switching (industrial grade) |
| Backplane Current | ~0.28 A @ 5 VDC |
| Indicators | LED per output channel |
| Slot Requirement | Single-slot module |
This module supports high-density AC output control with electrical isolation between channel groups, improving safety and flexibility. (turn0search1)
Physical Dimensions & Weight
| Parameter | Value |
|---|---|
| Dimensions (L × W × H) | ≈ 292 mm × 229 mm × 38 mm |
| Weight | ≈ 2 kg |
