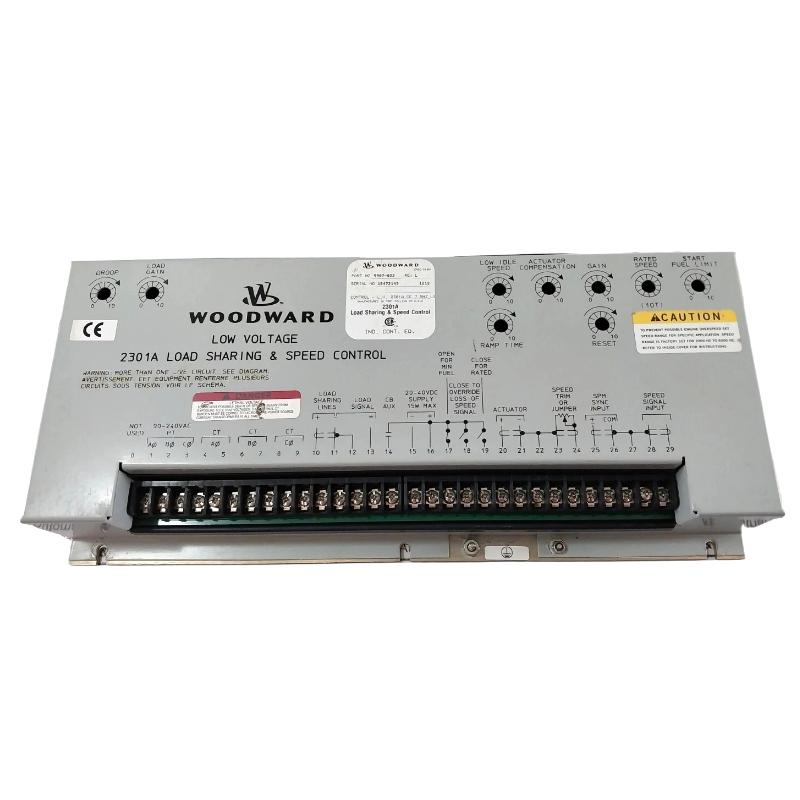

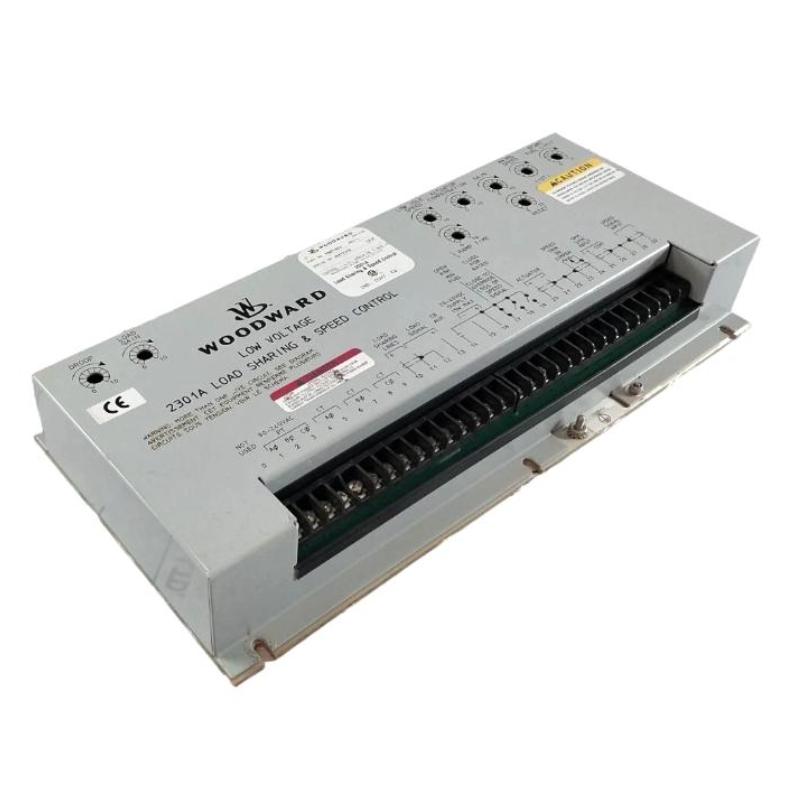

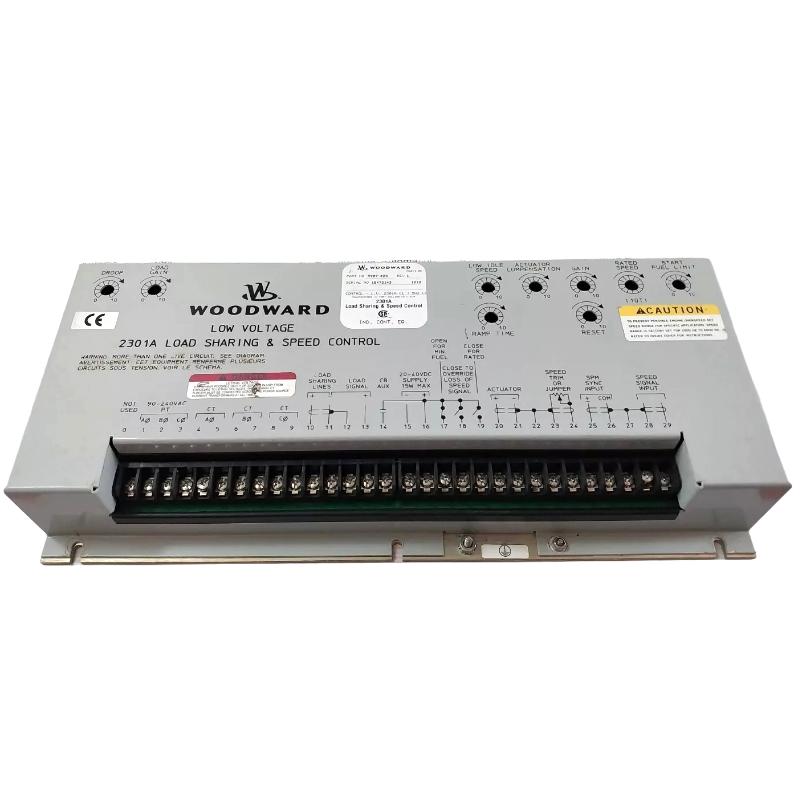

Woodward 9907-023 Low-voltage Load Balancing Speed Control Module
Woodward 9907-023 Low-voltage Load Balancing Speed Control Module
0.0
Points
Brand:Woodward Item No.:9907-023 Product Origin:USA Product Dimensions:220 x 160 x 65 mm Product Weight:1.35 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Woodward 9907-023 Low-voltage Load Balancing Speed Control Module is an industrial-grade governor control device designed to regulate engine speed and coordinate load sharing in multi-generator systems. It ensures stable operation by dynamically adjusting fuel or actuator output based on system demand.
Technical Specifications
Parameter
Details
Model
9907-023
Function
Speed & Load Control Module
System Type
Woodward 2301A Series
Voltage Type
Low-voltage (industrial control range)
Application
Generator speed regulation / load sharing
Control Modes
Isochronous / Droop
Dimensions
220 × 160 × 65 mm
Weight
1.35 kg
Operating Environment
Industrial / power generation systems
Recommended Companion Models
Model
Product Name
Woodward 8290-184
Speed Controller Unit
Woodward 9905-970
Engine Control Module
Woodward 2301A System
Load Sharing Control Platform
Woodward Actuator 1724
Fuel Control Actuator
Frequently Selected Alternatives
Model
Product Name
Woodward 9907-024
Load Sharing Control Variant
Woodward 9905-023
2301A Speed Control Module
Woodward 8237-136
Governor Control Unit
Woodward EasyGen 3200
Generator Control System
Applications
• Used for load sharing and speed regulation in generator sets driven by diesel engines, gas engines, steam turbines, or gas turbines.
• Applied in parallel generator systems where multiple units must operate at synchronized load distribution.
• Common in power plants, marine power systems, and industrial standby power stations.
• Supports prime mover control in isochronous or droop modes to maintain stable frequency under varying load conditions.
• Integrated into Woodward 2301A control architectures for precise engine governing and coordination.
Key Advantages
• Ensures stable speed control and accurate load sharing between multiple generators.
• Supports both isochronous and droop control modes for flexible operation.
• Designed for low-voltage industrial control systems with reliable signal processing.
• Enhances system stability during load transitions and synchronization.
• Built for continuous operation in harsh industrial environments.
Technical FAQs
1. What is the main function of this module?
It controls engine speed and distributes load between multiple generators in parallel operation.
2. What does “load balancing” mean in this context?
It means sharing electrical load evenly across multiple generator units.
3. What systems is it used with?
It is part of Woodward 2301A series speed and load control systems.
4. What engines can it control?
Diesel engines, gas engines, steam turbines, and gas turbines.
5. Does it support parallel generator operation?
Yes, it is designed specifically for multi-unit generator synchronization.
6. What control modes are available?
Isochronous and droop speed control modes.
7. Is it suitable for continuous operation?
Yes, it is designed for 24/7 industrial use.
8. What industries use it?
Power generation, marine systems, oil & gas, and industrial plants.
9. Does it require configuration?
Yes, it must be tuned for engine and system parameters.
10. What is its main benefit in generator systems?
It improves stability and prevents uneven load distribution between units.
