Brand:Yokogawa Electric Item No.:AAI543-H50/A4S10 Product Origin:Japan Product Dimensions:107.5 × 32.8 × 130 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

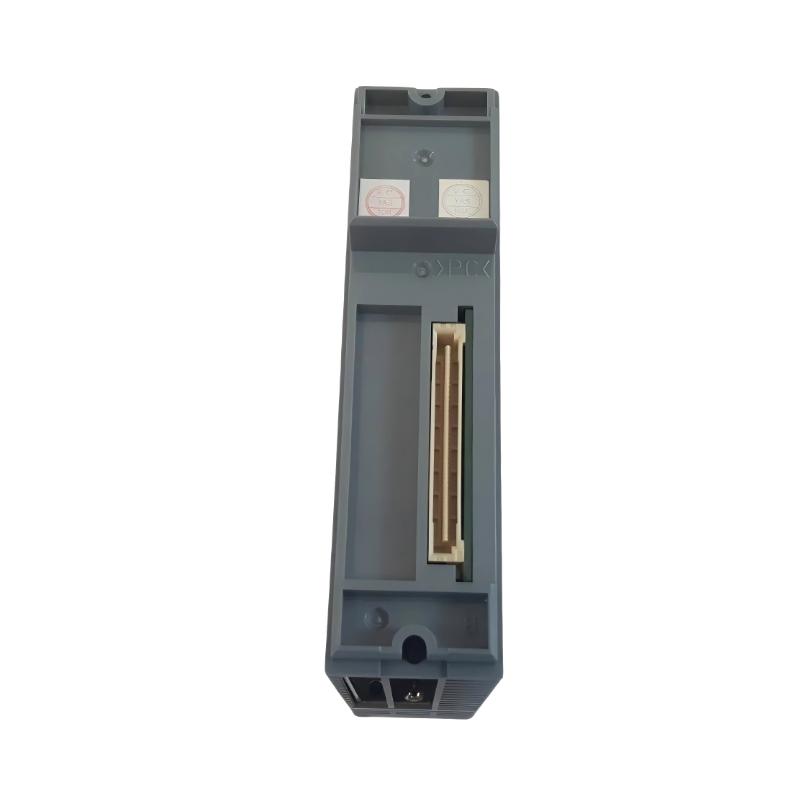

The Yokogawa AAI543-H50/A4S10 Analog Output Module is designed to reliably convert digital control signals into precise analog outputs for industrial field devices. It ensures that control strategies executed at the system level are faithfully reflected in the physical process.
Engineered for demanding industrial environments, the module emphasizes signal integrity, operational reliability, and seamless integration within Yokogawa automation platforms. Its consistent performance supports continuous operation and precise process control.
Technical Specifications
Parameter
Description
Product Type
Analog Output Module
Output Signal Type
Analog current output
Channel Structure
Multiple independent output channels
Output Configuration
Software configurable
Diagnostic Functions
Channel-level status and fault monitoring
Electrical Isolation
Channel and system isolation
System Compatibility
Yokogawa DCS I/O systems
Dimensions (W × H × D)
107.5 × 32.8 × 130 mm
Weight
0.4 kg
Recommended Related Models
Model
Module Type
Primary Application
Yokogawa AAI543-H50/A4S00
Analog Output Module
Alternative H50 variant
Yokogawa AAI543-H50/A4D00
Analog Output Module
H50 series with enhanced configuration
Yokogawa AAI543-H50 S1
Analog Output Module
High-reliability variant
Yokogawa AAI543-H10
Analog Output Module
Alternative output configuration
Yokogawa AAI943
Analog Output Module
Advanced diagnostics support
Popular Related Models
Model
Module Type
Common Use
Yokogawa AAI833
Analog Output Module
Standard process control outputs
Yokogawa AAI143
Analog Input Module
Process monitoring and measurement
Yokogawa AAV144
Analog Input Module
High-accuracy analog input
Yokogawa ADV151
Digital Input Module
Discrete signal processing
Yokogawa AAI141
Analog Input Module
General-purpose analog input acquisition
Applications
The Yokogawa AAI543-H50/A4S10 Analog Output Module is designed for precise and reliable analog signal control in industrial automation systems. It is widely used in continuous and hybrid process industries, including oil and gas, petrochemical refining, power generation, and heavy industrial manufacturing.
This module is ideal for delivering control signals to critical final elements such as control valves, actuators, and variable-speed drives. It supports multi-loop and coordinated control, ensuring that output commands from the control system are accurately executed at the field level even under rapidly changing process conditions.
Advantages
The AAI543-H50/A4S10 provides stable and repeatable analog output, supporting consistent loop performance and reducing unnecessary stress on field devices. Its robust design ensures dependable operation in demanding industrial environments.
Integrated diagnostics offer real-time monitoring of each output channel, allowing engineers to detect anomalies and perform preventive maintenance without disrupting operations. Electrical isolation and noise suppression enhance signal integrity, while seamless integration within Yokogawa’s I/O platform ensures consistent performance across system expansions and upgrades.
Technical FAQs
1. What is the role of the AAI543-H50/A4S10 in a distributed control system?
It converts digital commands from the control system into accurate analog current outputs for field-level actuation.
2. How does the module maintain accuracy under varying load conditions?
Precision internal components and signal conditioning ensure output stability regardless of changes in load or process dynamics.
3. Can the output channels operate independently?
Yes, each channel functions independently, supporting multiple simultaneous control loops.
4. What type of diagnostic feedback does the module provide?
It reports channel-level status, fault detection, and abnormal conditions to the control system for monitoring and troubleshooting.
5. How does the module handle rapid changes in control commands?
Smooth signal transitions are maintained to prevent abrupt movements in connected field devices.
6. Is the module suitable for critical control loops?
Yes, its reliable output performance makes it ideal for high-value loops where accuracy and stability are essential.
7. Can output ranges be reconfigured after system commissioning?
Yes, output parameters can be adjusted via software to meet changing process requirements.
8. How does the module resist electrical noise in industrial environments?
Electrical isolation and internal filtering reduce susceptibility to interference, ensuring consistent signal delivery.
9. How does the module support coordinated multi-loop control?
Consistent output behavior allows simultaneous control loops to operate in sync, improving overall system stability.
10. What applications benefit most from the A4S10 variant?
Processes requiring precise analog outputs for dynamic or high-performance control loops gain the greatest advantage from this module.
