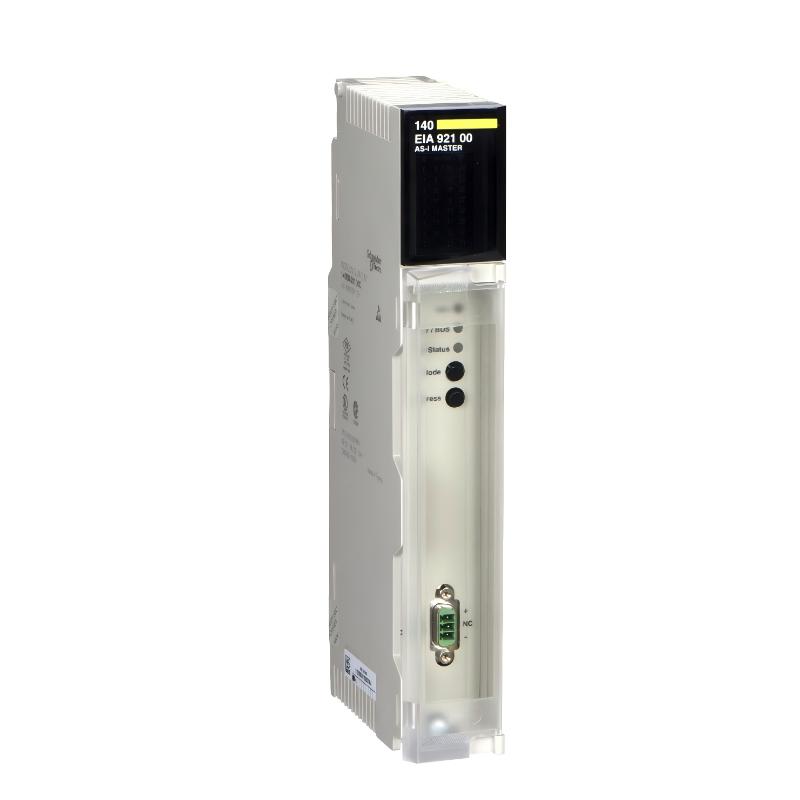

Schneider 140EIA92100C AS-Interface Main Module

Applications

The Schneider 140EIA92100C AS-Interface Main Module is an essential component for industrial automation systems that use the AS-Interface (Actuator Sensor Interface) protocol. This module enables the integration of a wide range of actuators, sensors, and other field devices into a central control system. It is ideal for industries such as automotive, food and beverage, packaging, and material handling, where reliable communication and control between field devices and the PLC are crucial.

Advantages

• Reliable Field Device Communication: The 140EIA92100C allows seamless and efficient communication between sensors, actuators, and the central PLC using the AS-Interface protocol, ensuring high-performance control.
• Compact and Efficient Design: With dimensions of 103.9 × 40.3 × 250 mm, the module offers a space-efficient solution for your automation systems, fitting into tight control panels and reducing overall system footprint.
• Easy Integration: Fully compatible with Schneider Electric’s Modicon PLCs, this AS-Interface main module integrates easily with existing systems, offering fast installation and configuration.
• Durable Construction: Built to withstand harsh industrial environments, this module operates reliably under challenging conditions such as electrical surges, vibrations, and temperature variations.
• Scalable and Flexible: The 140EIA92100C supports a wide range of AS-Interface devices, providing scalability to grow and adapt as your system needs change.

Technical FAQs

1. What is the purpose of the Schneider 140EIA92100C AS-Interface Main Module?
   The 140EIA92100C is used to connect AS-Interface devices, such as sensors and actuators, to a PLC system. It allows for seamless communication and control within industrial automation systems.
2. What is the AS-Interface protocol and why is it important?
   AS-Interface (Actuator Sensor Interface) is a cost-effective communication protocol for connecting field devices, such as sensors and actuators, to a central controller (PLC). It simplifies wiring and enhances system flexibility.
3. How does the 140EIA92100C integrate with Schneider PLCs?
   The module is fully compatible with Schneider Electric’s Modicon PLCs and can be easily connected to expand I/O capabilities and manage communication between field devices and the central control system.
4. What is the weight of the Schneider 140EIA92100C AS-Interface Main Module?
   The module weighs 0.45 kg (0.99 lb), making it lightweight and easy to install in industrial control systems.
5. What devices can be connected to the 140EIA92100C module?
   This module supports a wide range of AS-Interface devices, including sensors, actuators, switches, and other I/O devices, making it highly versatile for various industrial applications.
6. How is the 140EIA92100C module powered?
   The module is powered through the AS-Interface network itself, which simplifies installation by reducing the need for additional power sources.
7. Can the 140EIA92100C be used in hazardous environments?
   While the module is robust and designed for industrial environments, it should be housed in appropriate enclosures to protect it from extreme or hazardous conditions.
8. What communication protocols does the 140EIA92100C support?
   The 140EIA92100C supports the AS-Interface communication protocol, ensuring that it can communicate with a wide range of field devices that use this standard.
9. What is the maximum number of devices that can be connected to the 140EIA92100C?
   The module supports up to 31 AS-Interface devices on a single network, allowing for extensive control and monitoring of field devices in your automation system.
10. What is the operating temperature range for the 140EIA92100C?
    The module operates effectively within a temperature range of -10°C to +60°C, making it suitable for a wide variety of industrial environments.
