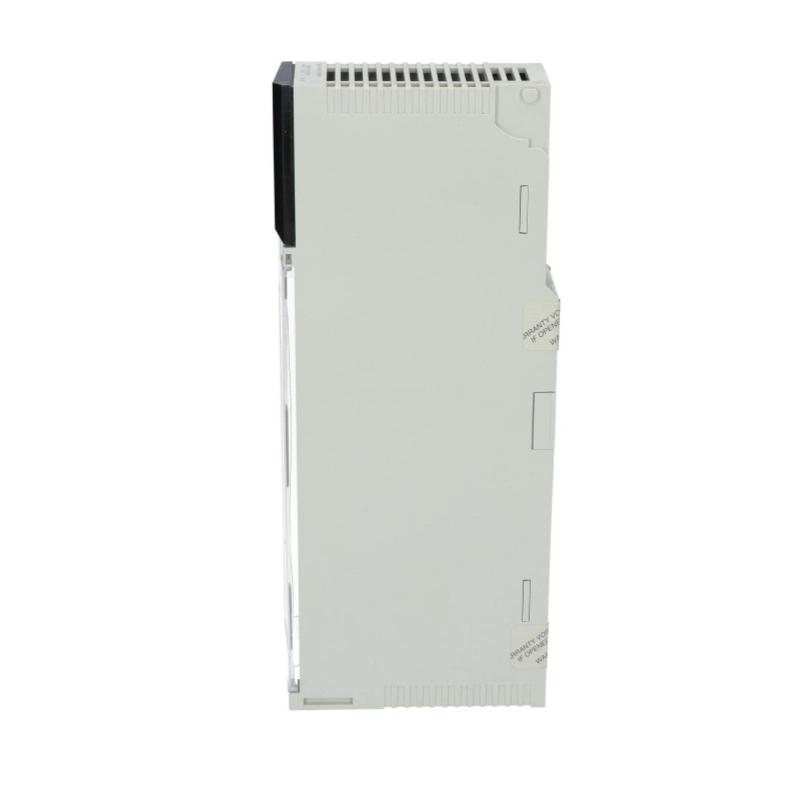

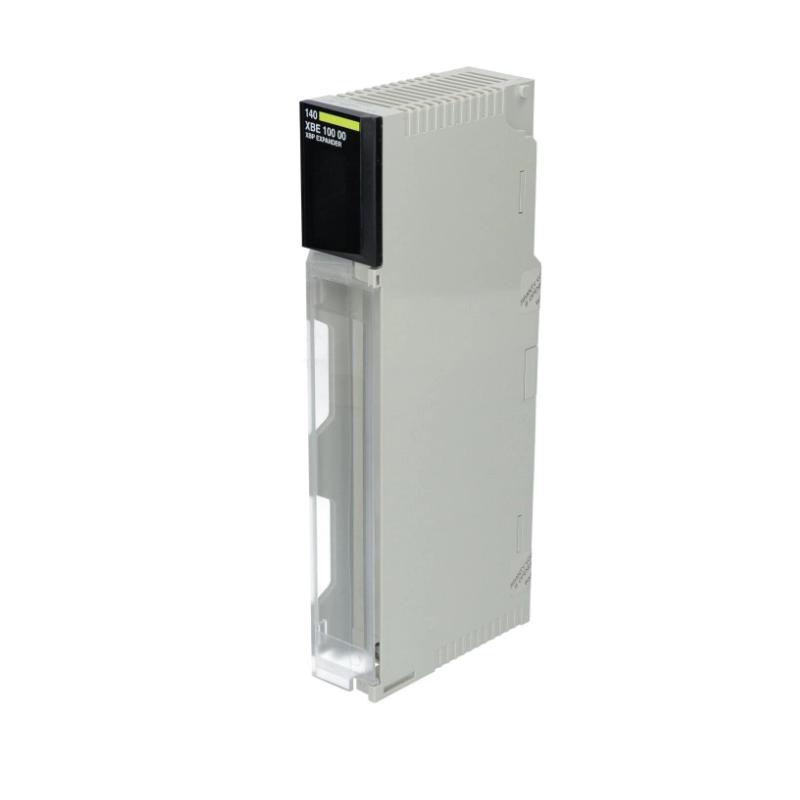

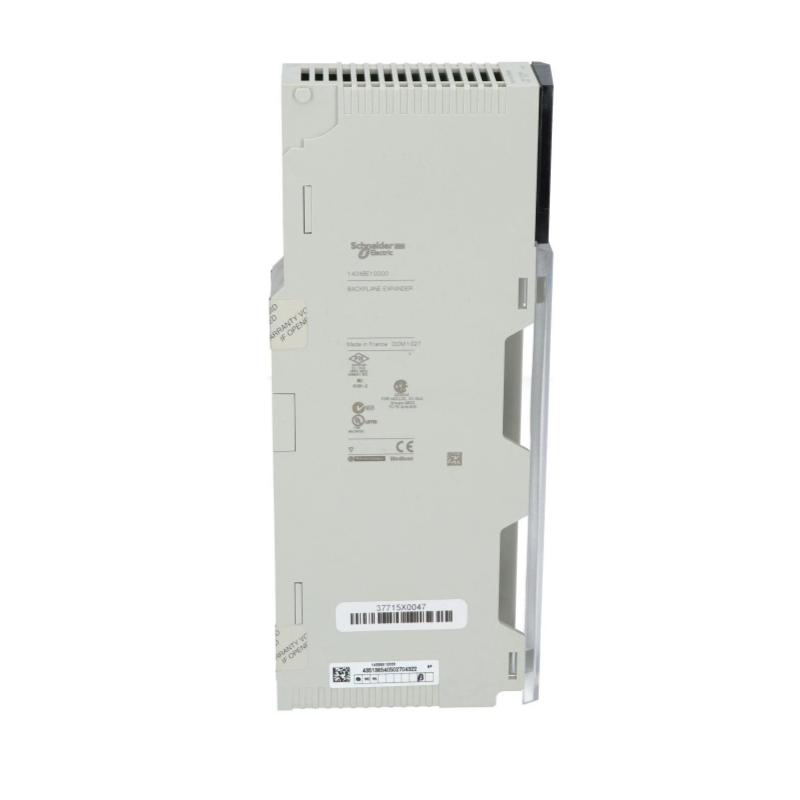

Schneider 140XBE10000 Backplate Extender

Applications

The Schneider 140XBE10000 Backplate Extender is designed to expand the capacity of your industrial automation system by providing additional space for mounting I/O modules and other automation components. This backplate extender is ideal for applications where system expansion is needed without compromising the organization and accessibility of control panels. It is perfect for use in sectors such as manufacturing, energy management, and process control, where efficient space management and flexibility in system design are crucial.

Advantages

• Modular Expansion: The 140XBE10000 backplate extender enables easy expansion of your Schneider Electric Modicon PLC system, providing more mounting space for I/O modules and enhancing system flexibility.
• Compact Design: With dimensions of 103.9 × 40.3 × 250 mm, it offers a compact solution for system expansion without taking up excessive space in your control cabinet.
• Efficient Space Utilization: This backplate extender allows for better organization of your system by keeping components neatly arranged while making room for additional modules.
• Durable Construction: Built to withstand the harsh conditions of industrial environments, the 140XBE10000 is designed for durability and long-term reliability in challenging operational settings.
• Seamless Integration: Fully compatible with Schneider Electric's Modicon PLCs, the backplate extender integrates easily into your existing system, allowing for quick and straightforward system upgrades.

Technical FAQs

1. What is the purpose of the Schneider 140XBE10000 Backplate Extender?
   The 140XBE10000 is used to expand the mounting space for I/O modules and other components in Schneider Electric's Modicon PLC system, facilitating easy system upgrades and expansion.
2. How does the 140XBE10000 enhance system flexibility?
   By providing additional mounting space, the backplate extender allows for easy integration of extra I/O modules and control components, enabling scalable and flexible system configurations.
3. What is the weight of the Schneider 140XBE10000 Backplate Extender?
   The backplate extender weighs 0.444 kg (0.98 lb), offering a lightweight yet robust solution for system expansion.
4. Is the 140XBE10000 compatible with all Modicon PLC models?
   Yes, it is designed to be fully compatible with Schneider Electric's Modicon PLCs, making it an ideal solution for a wide range of automation systems.
5. How is the 140XBE10000 mounted?
   The backplate extender is mounted onto your control cabinet using standard mounting brackets, ensuring a secure and stable setup.
6. Can the 140XBE10000 be used in hazardous environments?
   While the backplate extender is robust and built for industrial environments, it should be housed in appropriate enclosures to protect it from extreme conditions.
7. What is the material construction of the 140XBE10000?
   The backplate extender is made from high-quality materials that are durable and resistant to wear and tear, ensuring longevity even in harsh industrial environments.
8. Does the 140XBE10000 come with mounting hardware?
   Yes, the backplate extender typically includes the necessary mounting hardware to securely attach it to your system.
9. How does the 140XBE10000 improve system organization?
   It helps maintain a clean, organized system by creating more room to arrange components efficiently, which improves access and troubleshooting during system maintenance.
10. Can the 140XBE10000 be used in both small and large systems?
    Yes, the extender is versatile and can be used in both small and large automation setups, allowing for scalable expansion based on system requirements.
