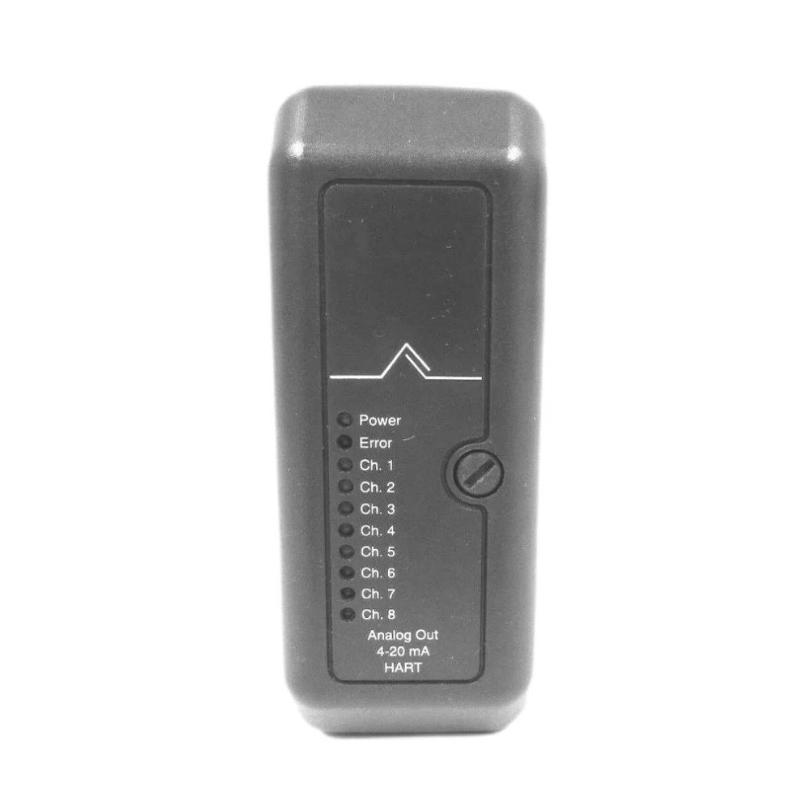

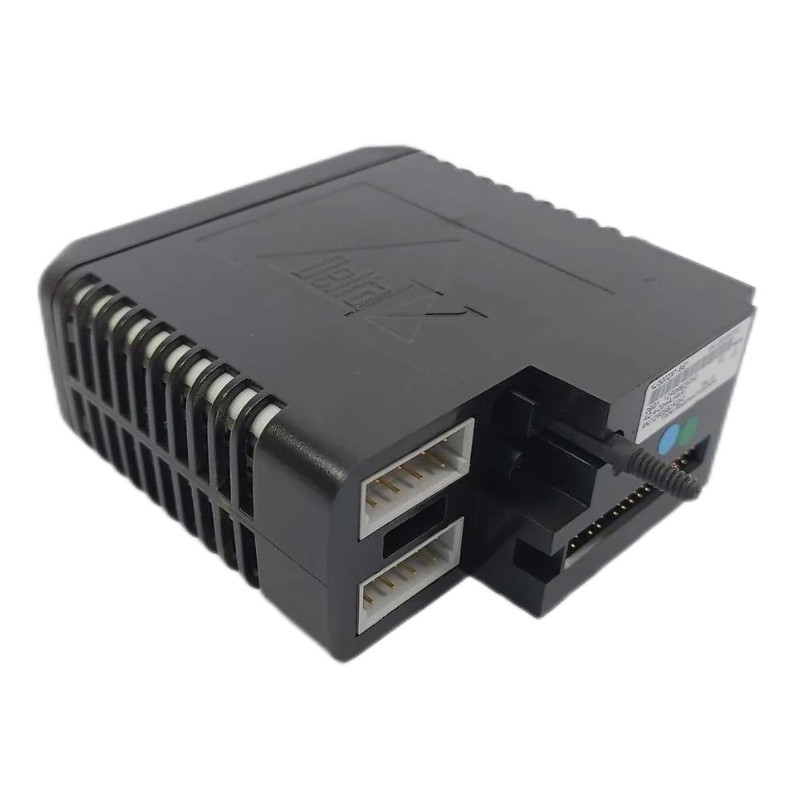

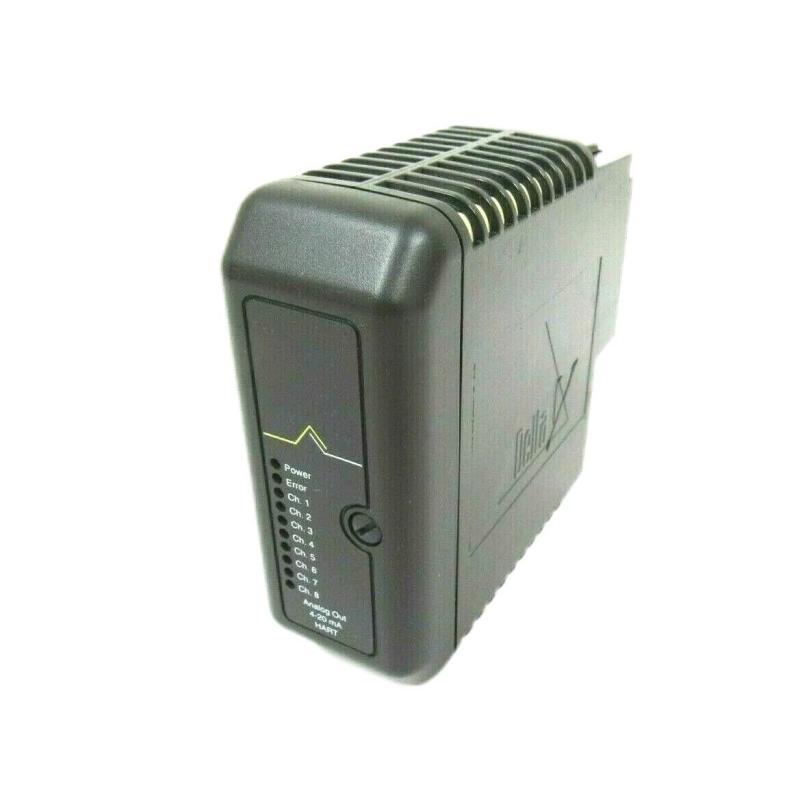

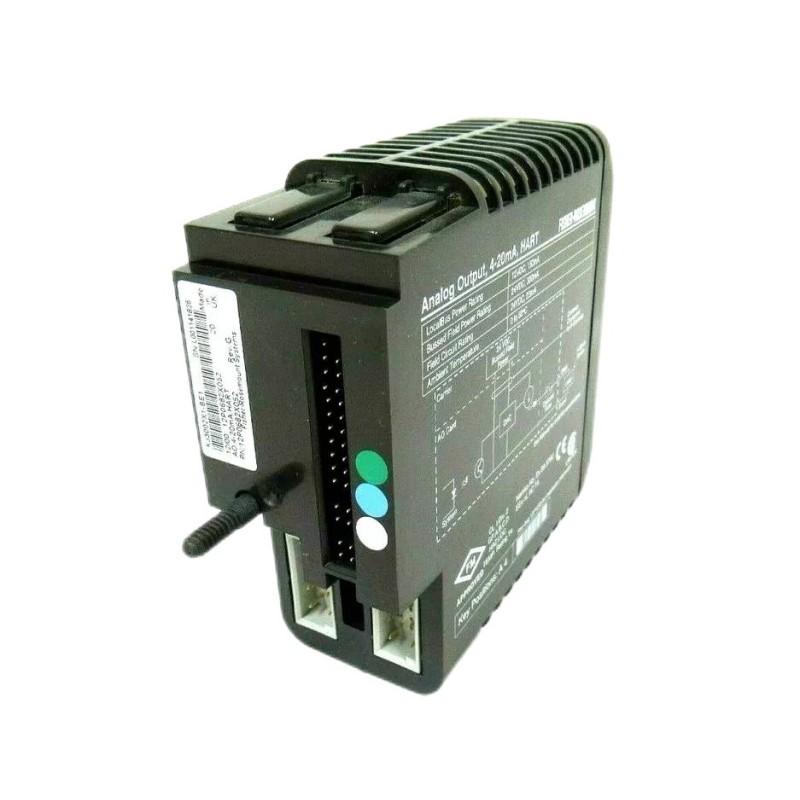

Emerson 12P0682X052 Analog Output Module

Applications

The Emerson 12P0682X052 Analog Output Module is designed for precise control in industrial automation systems, providing reliable and accurate analog signal output. Ideal for applications in process control, manufacturing, and energy management, this module plays a critical role in controlling devices such as actuators, valves, and other analog-controlled equipment. It’s particularly suited for use in industries like oil & gas, power generation, and chemical processing, where accurate and stable analog output is required for efficient system operation.

Advantages

• High Precision: Delivers stable, accurate analog output, ensuring precise control over systems that require fine-tuned adjustments, such as valves and actuators.
• Compact Size: With its small form factor of 107 x 41 x 105 mm, it fits easily into tight spaces within control panels without sacrificing performance.
• Versatile Integration: Compatible with Emerson’s distributed control systems and supports seamless integration with third-party systems using standard communication protocols.
• Reliable Performance: Built for industrial environments, the module ensures long-term stability and operational efficiency, even in harsh conditions.
• Low Power Consumption: Designed to operate efficiently, minimizing energy usage while maintaining high performance.

Technical FAQs

1. What types of devices can the Emerson 12P0682X052 Analog Output Module control?
   • The module can control analog devices such as actuators, valves, dampers, and other equipment requiring analog input for precise adjustment.
2. What is the output range of the 12P0682X052 Analog Output Module?
   • The module typically supports output ranges of 4-20 mA or 0-10 V, depending on system requirements.
3. How many output channels are available in the Emerson 12P0682X052 module?
   • This module features 4 independent analog output channels, making it suitable for multi-point control applications.
4. Is the module compatible with both AC and DC powered systems?
   • Yes, the Emerson 12P0682X052 Analog Output Module can be used in both AC and DC powered systems, ensuring versatility in different automation environments.
5. Does the module offer diagnostic capabilities?
   • Yes, the module includes diagnostic features to monitor the status of each output channel, helping to quickly identify and resolve any issues in real time.
6. Can the Emerson 12P0682X052 Analog Output Module be used in hazardous environments?
   • While designed for industrial use, additional protective enclosures are recommended when used in hazardous locations to ensure safety and compliance.
7. What is the communication protocol supported by the Emerson 12P0682X052 Analog Output Module?
   • The module supports Modbus and HART communication protocols for seamless integration with existing systems and devices.
8. What is the maximum output current for each channel on the 12P0682X052?
   • Each output channel supports a maximum current of 20 mA, making it suitable for controlling a wide range of analog devices.
9. What is the recommended operating temperature range for the module?
   • The Emerson 12P0682X052 Analog Output Module operates efficiently in temperatures ranging from -20°C to +60°C, making it suitable for diverse industrial environments.
10. What power supply does the module require?
    • The module requires a 24V DC power supply, which is standard for most industrial automation systems.
