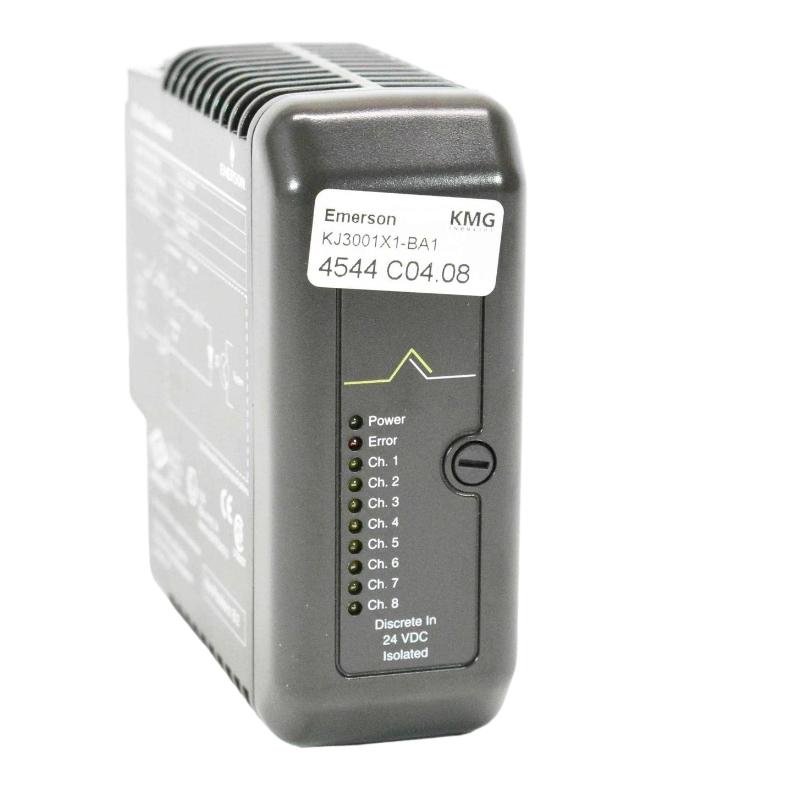

Emerson KJ3001X1-BA1 129P549X152 Isolated Discrete Input Module

Applications

The Emerson KJ3001X1-BA1 129P549X152 Isolated Discrete Input Module is designed for precise input signal acquisition in industrial control systems, providing isolation between input channels and control systems to prevent ground loops and electrical interference. This module is ideal for applications where high input integrity and noise immunity are required, such as in process control, safety systems, and equipment monitoring. It’s particularly useful in industries like chemical processing, power generation, and oil & gas, where reliable and isolated signal inputs are crucial for system accuracy and safety.

Advantages

• Signal Isolation: Provides electrical isolation between the input channels and the control system, preventing interference and reducing the risk of ground loop issues.
• Compact and Efficient: With a small form factor of 107 x 41 x 105 mm, it fits into tight spaces, optimizing panel layout while maintaining high performance.
• Enhanced Reliability: Built to ensure reliable operation in harsh industrial environments, the module is designed to handle high-voltage signals and protect the system from surges and noise.
• Wide Compatibility: Supports seamless integration with Emerson's DeltaV™ DCS and other automation systems, making it versatile and adaptable to various setups.
• Low Power Consumption: The module is designed to operate efficiently, minimizing energy consumption while delivering consistent, accurate performance.

Technical FAQs

1. What is the primary function of the Emerson KJ3001X1-BA1 Isolated Discrete Input Module?
   • The module isolates and acquires discrete input signals (on/off), ensuring high accuracy and protection from electrical noise and interference in industrial systems.
2. What kind of signals does the 129P549X152 Isolated Discrete Input Module accept?
   • The module accepts digital (discrete) input signals, such as on/off signals from switches, sensors, or relays.
3. How many input channels does the Emerson KJ3001X1-BA1 module have?
   • This module provides 8 discrete input channels, allowing for multiple signal acquisitions simultaneously.
4. Is the module suitable for use in hazardous locations?
   • While the module is designed for industrial use, it should be placed in protective enclosures when used in hazardous environments to ensure compliance with safety standards.
5. What is the isolation voltage of the Emerson KJ3001X1-BA1 module?
   • The module provides 1500 V isolation, which helps protect the system from electrical surges and noise, ensuring safe and reliable operation.
6. What is the communication protocol supported by the KJ3001X1-BA1 Isolated Discrete Input Module?
   • The module supports Modbus and HART communication protocols, ensuring seamless integration with Emerson control systems and third-party devices.
7. How does the isolation in this module enhance system reliability?
   • The isolation prevents common electrical issues like ground loops and signal interference, improving signal integrity and system performance, especially in noisy environments.
8. What is the power supply requirement for this module?
   • The Emerson KJ3001X1-BA1 requires a 24V DC power supply, a standard requirement for most industrial input modules.
9. What is the operating temperature range for the 129P549X152 module?
   • The module operates efficiently within a temperature range of -20°C to +60°C, making it suitable for various industrial environments.
10. Can this module be used in both AC and DC systems?
    • Yes, the module is versatile and can be used in both AC and DC-powered systems, ensuring adaptability across various applications.
