Introduction

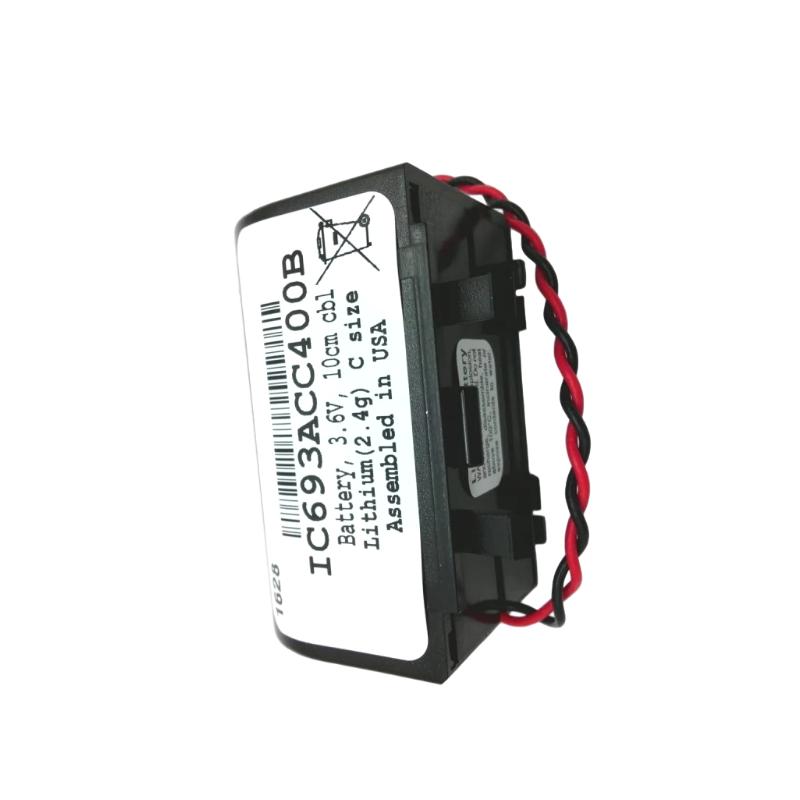

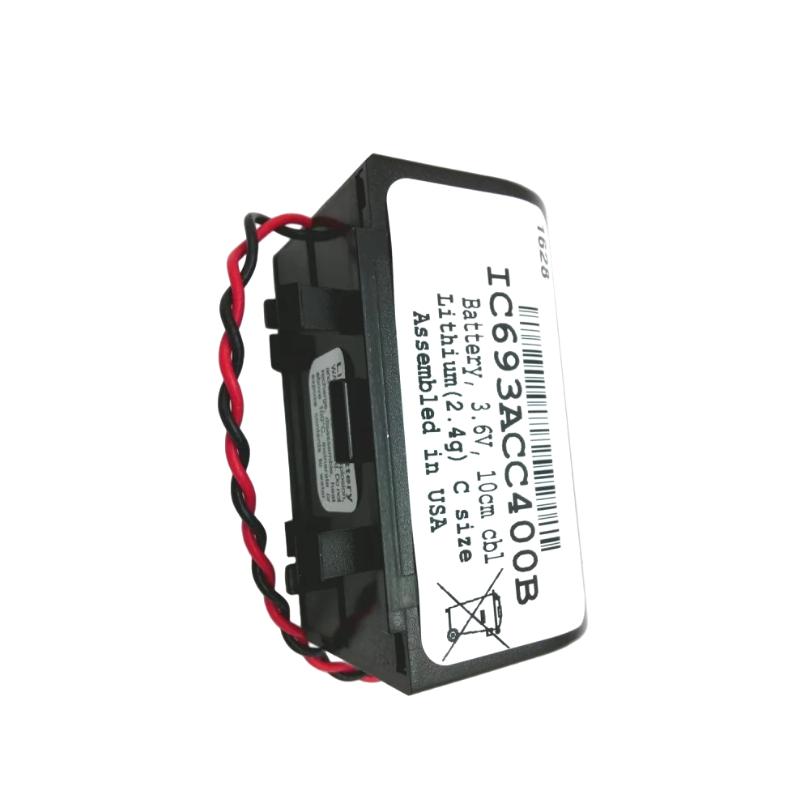

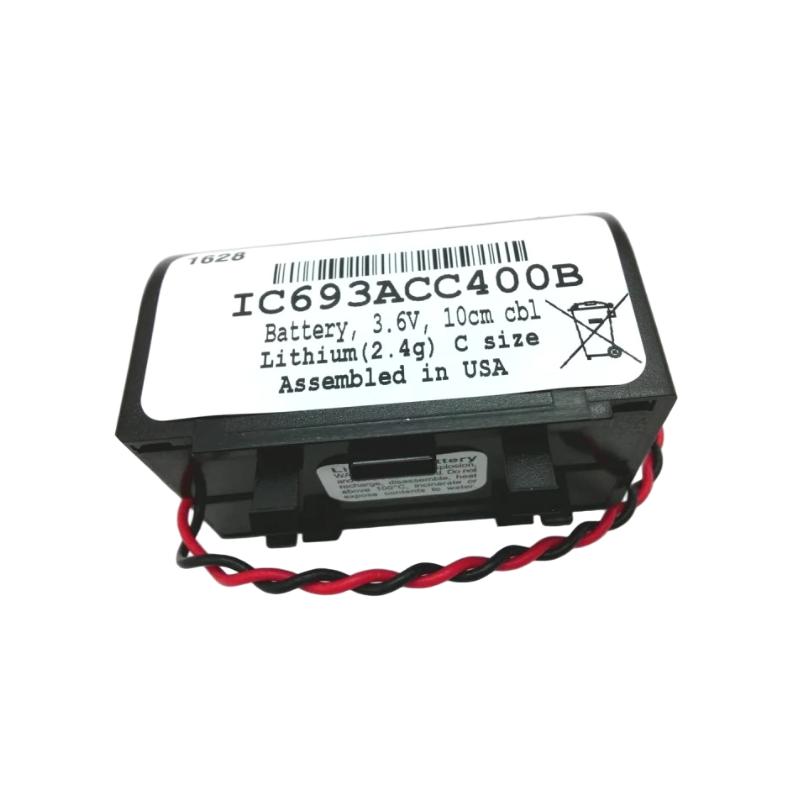

The GE IC693ACC400 Extended Battery is a vital backup power solution for GE automation systems, providing reliability during power outages and ensuring that control systems, PLCs, and DCS units maintain operation and data integrity. Its compact size, ease of installation, and extended power supply capabilities make it an ideal choice for industrial applications where continuous operation is critical. Whether in manufacturing, energy, or utilities, the IC693ACC400 ensures your control systems remain stable and functional, even when external power sources are unavailable.

Technical Specifications

Specification	Details
Module Type	Extended Battery
Dimensions (W x L x H)	2.62 mm x 50 mm
Weight	0.132 kg (0.29 lb)
Operating Voltage	24V DC
Battery Type	Rechargeable
Operating Temperature	-20°C to +60°C
Compatibility	Compatible with GE PLCs, DCS, and I/O systems
Charging Time	Fast charging (depends on system setup)

Applications

The GE IC693ACC400 Extended Battery is specifically designed to provide extended backup power for industrial control systems, particularly for GE PLCs, DCS, and other automation equipment. It ensures uninterrupted operation during power failures and provides necessary energy for maintaining critical system data and processes. This extended battery is crucial in industries such as manufacturing, power generation, oil & gas, and utilities, where continuous control and monitoring are essential. The battery allows the system to retain memory, safeguard control operations, and keep processes running without interruption.

Advantages

Extended Backup Power: The IC693ACC400 extended battery provides long-lasting power to support the operation of control systems, especially during power outages, ensuring no loss of critical data.
Compact and Lightweight: With dimensions of 2.62 x 50 mm and weighing just 0.132 kg (0.29 lb), this battery is compact and easy to install in tight spaces without adding significant weight to your system.
Reliable Power Source: Built to deliver consistent and dependable power, the IC693ACC400 battery ensures your system's memory, configuration, and processes are maintained, even when external power is unavailable.
Durable Design: The battery is designed to endure the harsh conditions typical of industrial environments, providing reliable backup in demanding operational settings.
Ease of Installation: Its simple and user-friendly design allows for quick and easy installation and replacement, minimizing downtime and reducing the risk of errors during setup.
Compatible with GE Automation Systems: The IC693ACC400 is optimized for use with GE’s PLCs, DCS, and other control systems, making it an ideal choice for maintaining system integrity in GE-based setups.
Energy Efficient: The battery is designed for low power consumption, extending its operational lifespan and reducing the frequency of replacements.

Technical FAQs

How long does the IC693ACC400 battery last on a full charge?
The operational lifespan of the battery depends on the connected system's power consumption, but it is designed to provide extended backup for several hours during a power failure, ensuring critical data and operations are preserved.
Can the IC693ACC400 be used with non-GE automation systems?
The IC693ACC400 is designed for use with GE PLCs, DCS, and other automation equipment, but its compatibility with non-GE systems should be verified with the manufacturer or an engineer before use.
How do I install the IC693ACC400 battery?
The battery is designed for easy installation. It can be directly mounted into compatible GE automation equipment or connected using the specified connectors. Always follow the installation instructions provided by GE for optimal performance.
What is the charging time for the IC693ACC400 battery?
The battery charging time depends on the system configuration, but typically it charges quickly and provides backup within a short period, making it effective during power outages.
Can the IC693ACC400 be used in extreme temperatures?
The IC693ACC400 battery is designed to function in typical industrial environments, with an operational temperature range of -20°C to +60°C. For extreme conditions, additional protection may be required.
How long does the IC693ACC400 battery last before needing replacement?
The IC693ACC400 is designed for long-term use, typically lasting several years with proper care. However, its performance will decrease over time, and it should be replaced when its charge retention capacity begins to diminish.
Is the IC693ACC400 battery rechargeable?
Yes, the IC693ACC400 is a rechargeable battery, designed to recharge when the system’s primary power is restored.
What happens if the IC693ACC400 battery is not installed correctly?
Improper installation may lead to the battery not providing sufficient backup power. It’s essential to follow the installation instructions carefully and ensure the battery is connected properly to ensure proper functionality.
Is the IC693ACC400 suitable for backup power during extended outages?
While the IC693ACC400 is designed for extended power backup, its capacity may not support long-term power needs over several days. It is ideal for short-term outages, ensuring system data is retained and processes can safely shut down or wait for power restoration.
Can the IC693ACC400 be used in outdoor environments?
The IC693ACC400 is designed for indoor use in typical industrial environments. For outdoor use, the battery should be housed in a suitable enclosure to protect it from environmental elements like rain or extreme temperatures.
