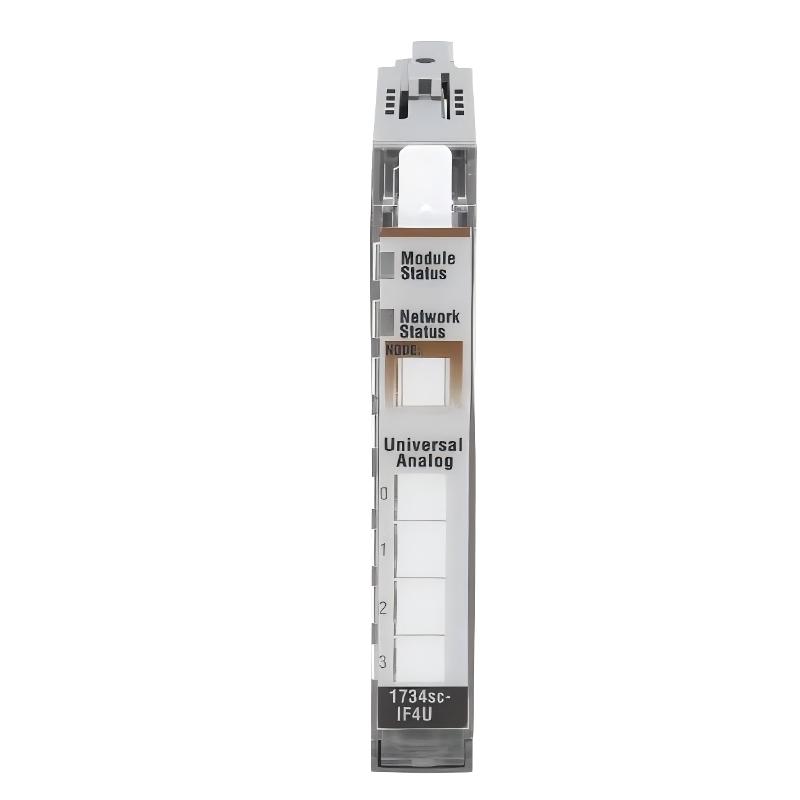

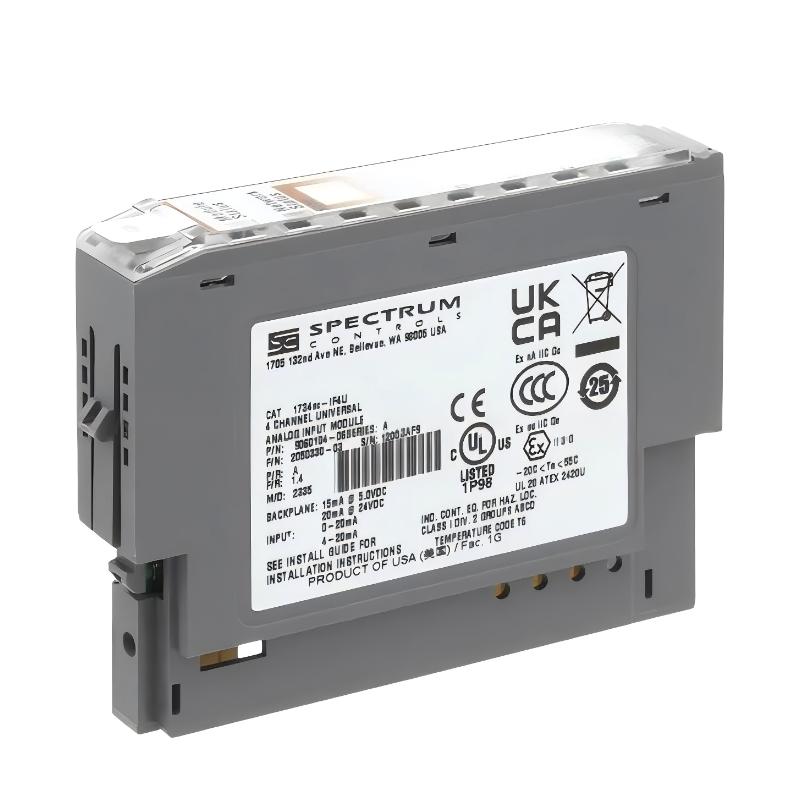

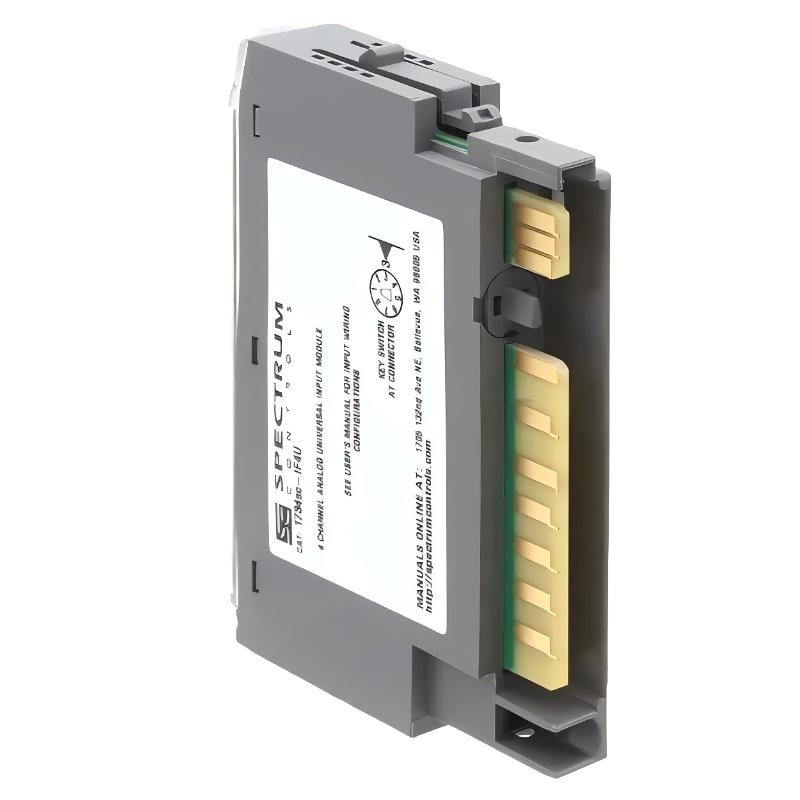

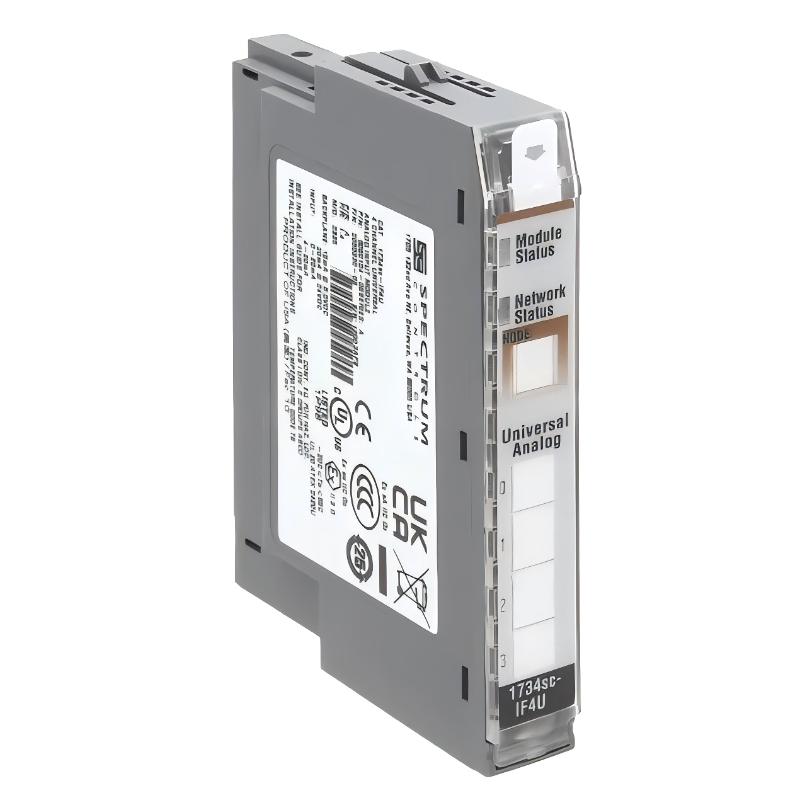

Allen Bradley 1734SC-IF4U 4-channel General-purpose Analog Input Module
Allen Bradley 1734SC-IF4U 4-channel General-purpose Analog Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1734SC-IF4U Product Origin:USA Product Dimensions:75.5 x 12 x 56 mm Product Weight:0.04 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 1734SC-IF4U 4-Channel General-Purpose Analog Input Module is a compact, reliable solution for acquiring analog signals from field devices. It provides four high-accuracy input channels, supporting a wide range of industrial signal types. Designed for seamless integration with ControlLogix, CompactLogix, and SCPoint systems, this module simplifies wiring, supports modular expansion, and provides real-time diagnostics for process monitoring. Its rugged construction ensures dependable operation in industrial automation environments.
Technical Specifications
Parameter
Specification
Model
1734SC-IF4U
Type
4-Channel General-Purpose Analog Input Module
Dimensions
75.5 × 12 × 56 mm
Weight
0.04 kg
Channels
4 Analog Inputs
Signal Types
0–10 V, 4–20 mA, etc.
Communication
Point I/O Network
Application
Distributed Industrial Automation
Function
Analog Signal Acquisition
Recommended Related Models
Model
Product Name
Allen Bradley 1734SC-OF4U
4-Channel General-Purpose Analog Output Module
Allen Bradley 1734-IB8
8-Point Numeric Input Module
Allen Bradley 1734-IA8
8-Channel Analog Input Module
Allen Bradley 1734-AENT
Point I/O Ethernet/IP Adapter
Popular Related Models
Model
Product Name
Allen Bradley 1734SC-IF4U
4-Channel Analog Input Module (Alternate)
Allen Bradley 1734SC-IF8U
8-Channel Analog Input Module
Allen Bradley 1734-4IOL
4-Channel IO-Link Main Module
Allen Bradley 1734-ARM
Point I/O Address Reserved Module
Applications
• Acquires analog signals from sensors and transducers in distributed Point I/O systems.
• Industrial automation requiring precise measurement of voltage or current inputs.
• Integration into manufacturing, process control, and packaging operations.
• Retrofits or system expansions where additional analog input channels are needed.
• Applications requiring real-time monitoring of process variables such as temperature, pressure, or flow.
Key Advantages
• Provides 4 high-accuracy analog input channels in a compact module.
• Slim design saves space in control panels and distributed I/O racks.
• Compatible with Allen-Bradley ControlLogix, CompactLogix, and SCPoint systems.
• Supports multiple input types, including 0–10 V, 4–20 mA, and other standard signals.
• Real-time diagnostics with LED indicators for easy monitoring.
• Rugged construction ensures reliable operation in industrial environments.
Technical FAQs
1. What is the primary function of this module?
It provides 4 analog input channels for distributed Point I/O systems to acquire process data.
2. Which controllers is it compatible with?
Compatible with ControlLogix, CompactLogix, and SCPoint networks.
3. Can it handle harsh industrial conditions?
Yes, it is designed for vibration, temperature extremes, and electrical noise.
4. What types of signals does it accept?
Supports standard analog signals including 0–10 V and 4–20 mA.
5. Does it provide diagnostics?
Yes, LEDs indicate channel status and operational health.
6. Is it hot-swappable?
No, the module should be powered down before installation or removal.
7. Can multiple modules be installed together?
Yes, multiple analog input modules can be daisy-chained for system expansion.
8. Is programming required?
Yes, channel configuration is performed using Allen-Bradley software.
9. How many input channels does it provide?
It provides 4 general-purpose analog input channels.
10. What industries commonly use this module?
Used in process control, food & beverage, chemical, and manufacturing industries.
