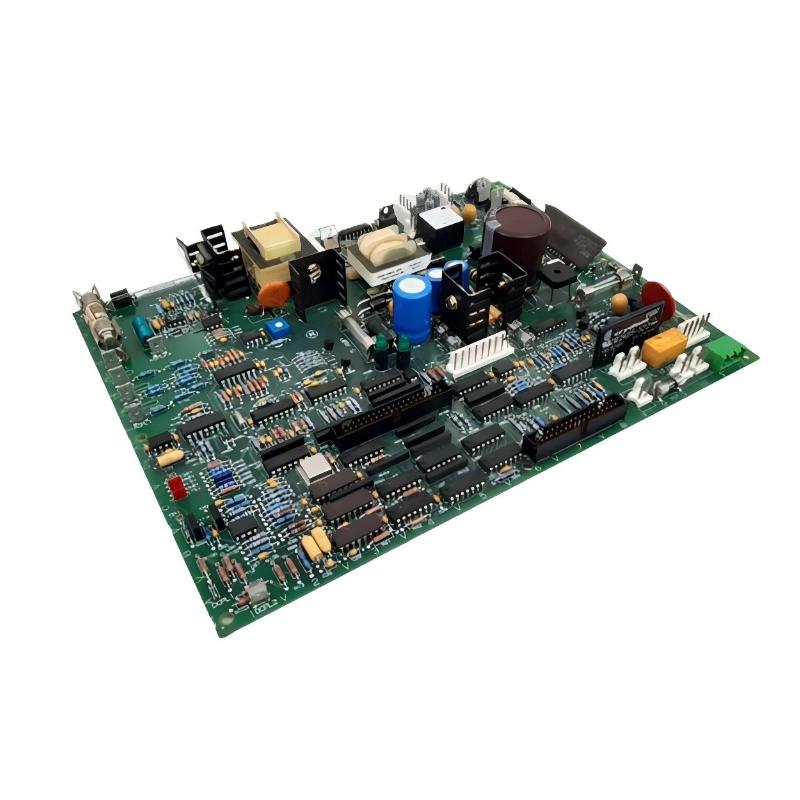

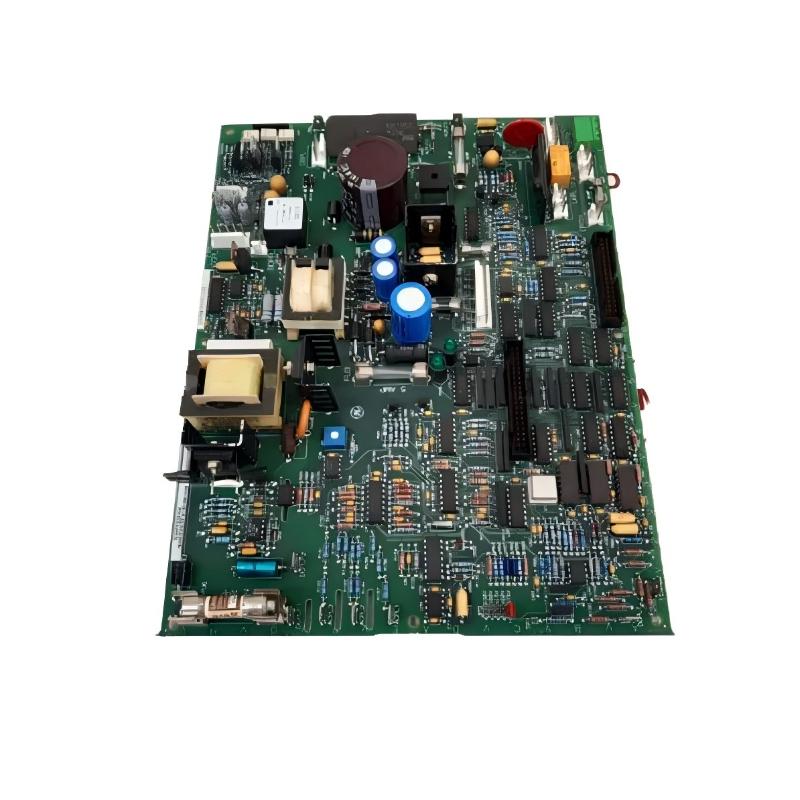

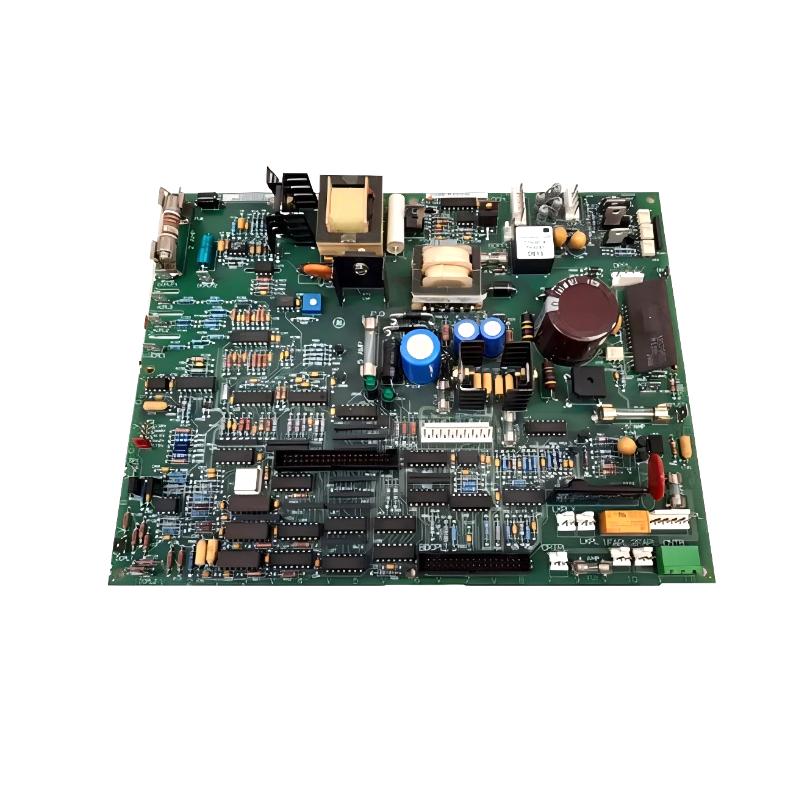

The GE DS200IMCPG1CCA is a Power Supply Interface Board module developed for the GE Speedtronic Mark V turbine control system. It plays a crucial role in managing and distributing power within turbine control cabinets, ensuring stable voltage conditioning and safe operation of connected control circuits.
Engineered for high-reliability environments such as gas and steam turbines, this module is widely recognized for delivering consistent power interface performance, robust protection mechanisms, and long-term operational stability in mission-critical energy systems.
Technical Specifications
The DS200IMCPG1CCA is designed for precise power interfacing and protection within Mark V control architectures.
| Parameter | Specification |
|---|---|
| Module Type | Power Supply Interface Board |
| Series | GE Speedtronic Mark V (DS200 Series) |
| Function | Power distribution and interface control |
| Input Voltage | 24 VDC |
| Power Consumption | ~10 W |
| Protection Features | 8 onboard fuses for overcurrent protection |
| Communication | Integrated with Mark V system backplane |
| PCB Coating | Conformal-coated for environmental protection |
| Installation | Panel-mounted (factory-drilled mounting holes) |
| Interface Connection | Cable connection to control board (e.g., SDCC) |
| Operating Temperature | -40°C to +70°C |
| Application Type | Turbine control systems (gas, steam, wind) |
The board is specifically designed to regulate and protect power flow within turbine systems, enhancing system safety and operational reliability.
Physical Dimensions & Weight
| Item | Value |
|---|---|
| Dimensions (H × W × D) | 82 × 42 × 121 mm |
| Weight | 0.35–0.99 kg |
Recommended Related Models
- DS200SDCCG1 – Drive control board (main controller interface)
- DS200TCQAG1 – RST overflow board
- DS200SLCCG3 – LAN communication board
- DS200PCCAG2 – power connect board
- GE Mark VI / Mark VIe upgrade control systems
