Introduction

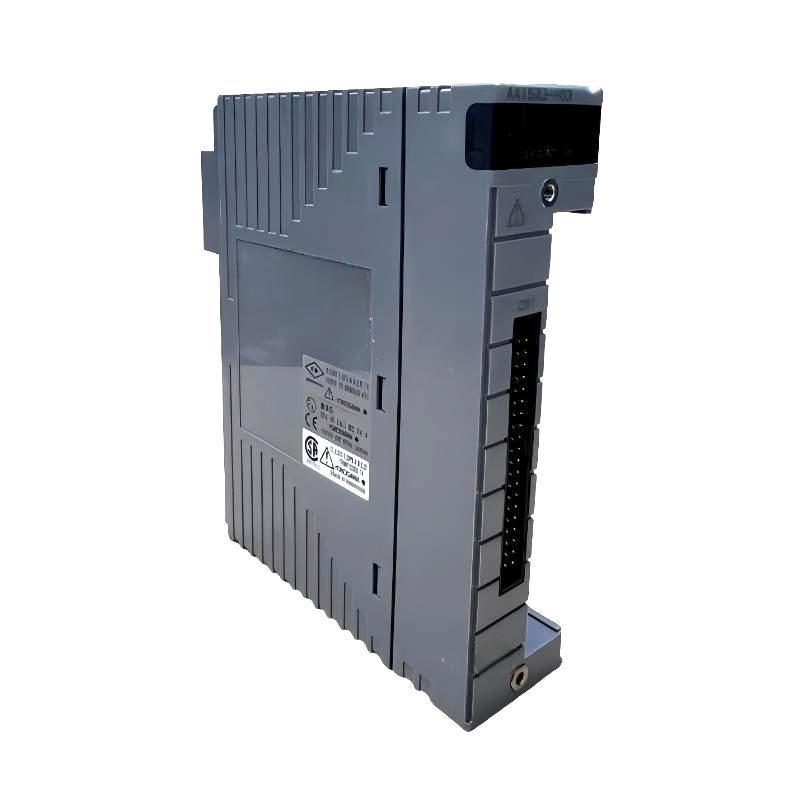

The Yokogawa AAI543-H03 Analog Output Module provides precise and reliable analog signal output for industrial automation. Designed for high performance and durability, it ensures stable control of actuators and proportional devices, enabling engineers to maintain optimal process performance. Its seamless integration with CENTUM VP DCS systems guarantees accurate real-time control and reduces operational risks.

Technical Specifications

Specification	Details
Output Channels	8
Supported Signals	4–20 mA, 0–20 mA, 0–10 V
Response Time	<10 ms per channel
Isolation	Galvanic isolation per channel
Operating Temperature	-10°C to 55°C
Storage Temperature	-20°C to 70°C
Power Supply	24 V DC
Dimensions	107.5 × 32.8 × 130 mm
Weight	0.4 kg
Certifications	CE, IEC compliant

Recommended Related Models

Yokogawa AAI543-S00 Analog Output Module
Yokogawa AAI143-H03 Analog Input Module
Yokogawa CENTUM VP PLC Base Unit

Popular Yokogawa Models

AAO141-H00 Analog Output Module
AAO143-H03 Analog Output Module
AAI543-S00 Analog Output Module
AAI543-H03 Analog Output Module

Applications

The

Applications

&nb

Technical FAQs

Which analog output signals are supported?
4–20 mA, 0–20 mA, 0–10 V.
How many output channels are available?
Up to 8 analog output channels.
Is channel isolation provided?
Yes, each output channel is galvanically isolated for safety and signal integrity.
What is the response time of the outputs?
Less than 10 ms per channel.
What is the operating temperature range?
-10°C to 55°C operational; -20°C to 70°C storage.
Is it compatible with Yokogawa CENTUM VP DCS?
Yes, fully compatible.
Are diagnostic indicators included?
Yes, LEDs indicate module status and error conditions.
What is the required power supply?
24 V DC nominal.
Can it handle industrial environmental stress?
Yes, designed to withstand vibration, temperature variation, and electrical noise.
Which certifications does it hold?
CE certified and IEC compliant for industrial control systems.
