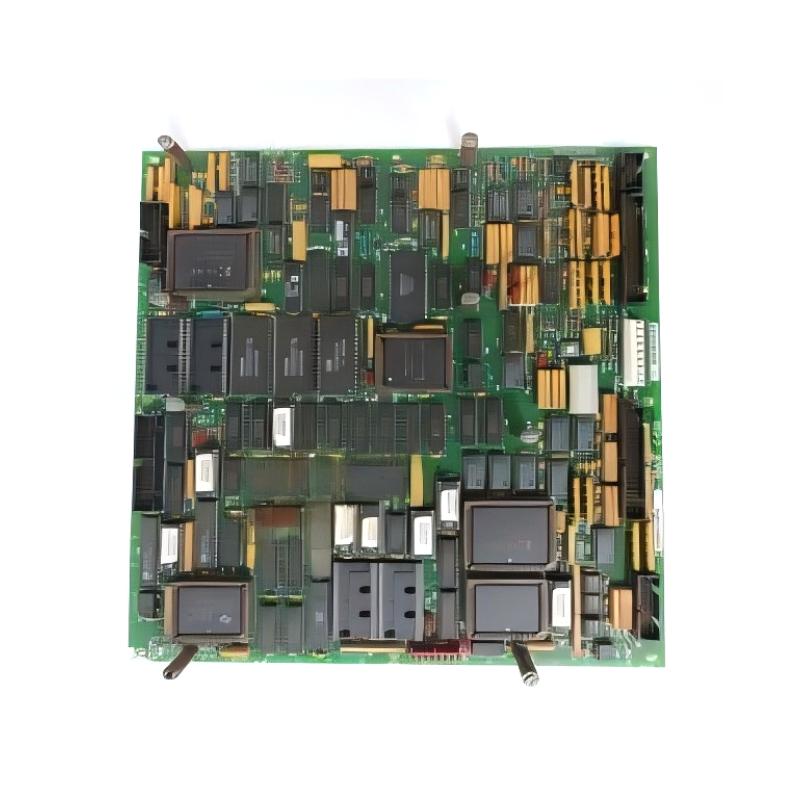

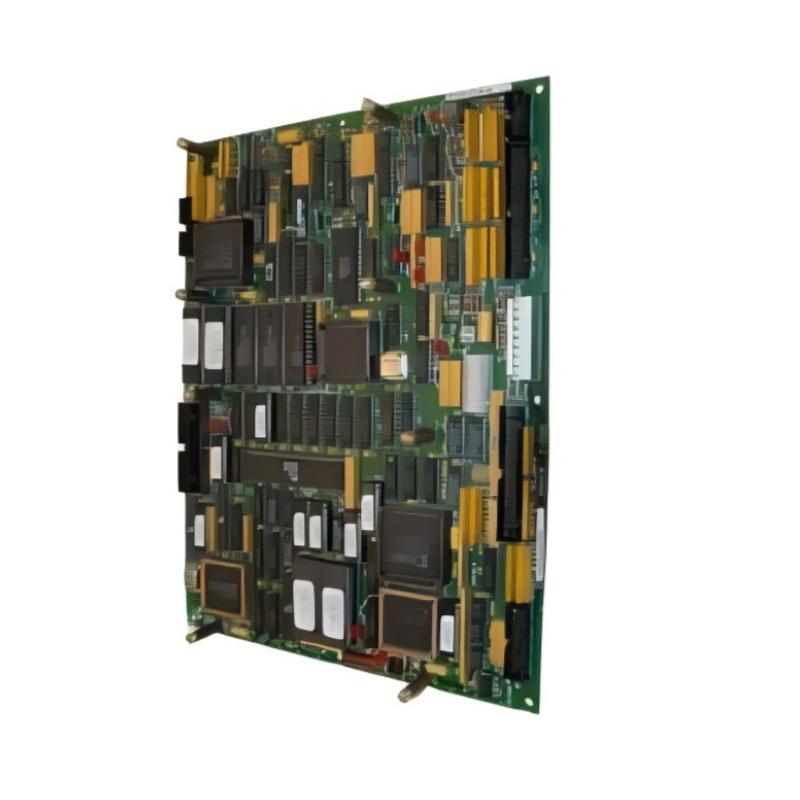

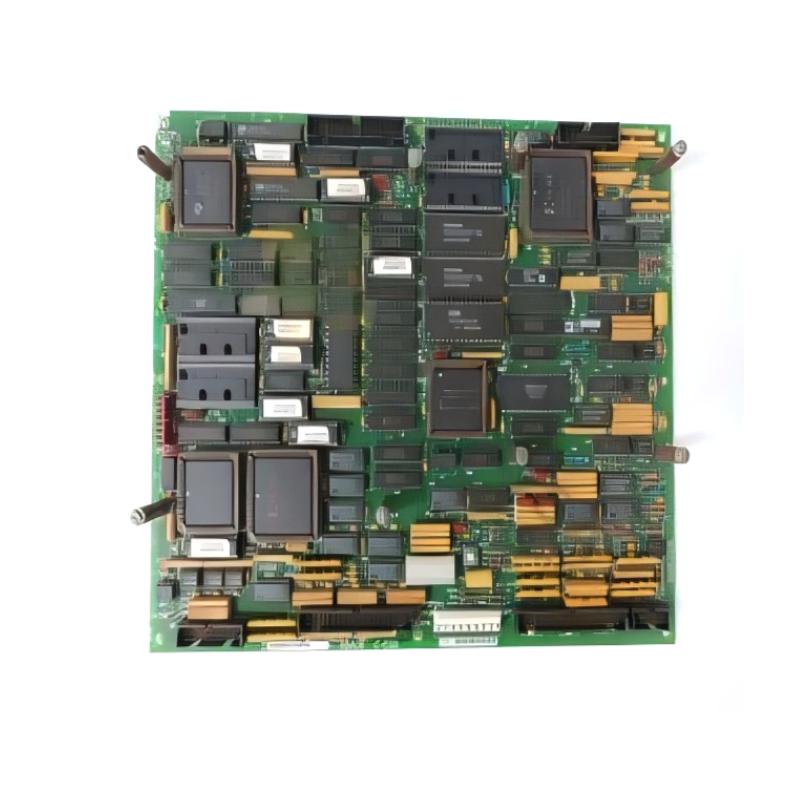

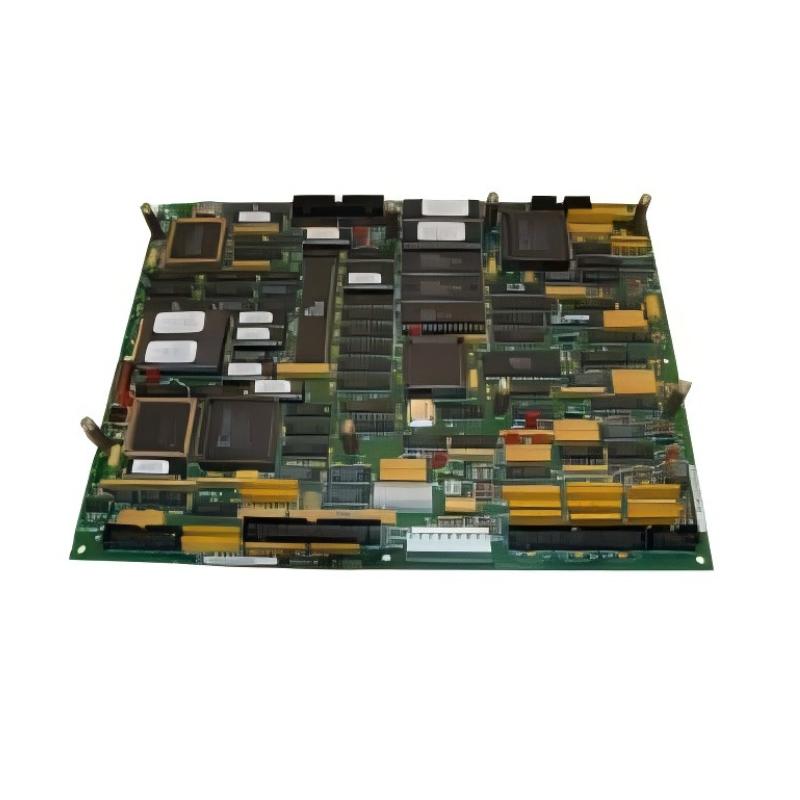

The GE IS200EHPAG1AAA is an Exciter Gate Pulse Amplifier (EHPA) board used in the GE EX2100 excitation system, commonly integrated with Mark VI turbine control platforms.
Its primary function is to amplify low-level gate command signals and drive high-power switching devices (typically SCRs or IGBTs) in the excitation power bridge. This makes it a critical interface between control electronics and power semiconductors.
Core Function
The IS200EHPAG1AAA acts as a gate driver and amplifier module:
- Receives gate commands from the ESEL (Exciter Selector board)
- Amplifies signals to drive SCR/thyristor gates
- Controls firing timing of power bridge devices
- Monitors bridge conditions (temperature, airflow, current)
- Sends feedback and status signals to the control system
It is essential for precise excitation control and generator voltage regulation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Module Type | Gate Pulse Amplifier Board (EHPA) |
| Series | GE EX2100 / Mark VI |
| Function | Gate signal amplification and SCR firing control |
| Input Power | 125 VDC (from EPDM) |
| Control Channels | Up to 6 SCR gate channels |
| Input Signals | Gate commands from ESEL board |
| Output | Amplified gate pulses to SCR bridge |
| Monitoring | Bridge current, airflow, temperature |
| Indicators | LED status (power, gate, fault, temperature) |
| Internal Design | DC/DC converter for gate drive supply |
| Communication | Hardwired + system feedback signals |
| Mounting | Excitation cabinet (power conversion section) |
Physical Characteristics
| Item | Value |
|---|---|
| Dimensions | ~160 × 160 × 120 mm |
| Weight | ~0.7–0.8 kg |
System Role
The IS200EHPAG1AAA is a power interface module, not a controller.
It sits in the excitation power chain:
Controller (DSP / EMIO) → ESEL (selector) → EHPA (this board) → SCR bridge
Its responsibilities:
- Converts control signals into high-power gate pulses
- Ensures correct firing angle of SCRs
- Maintains stable excitation output
- Protects system via monitoring and fault indication
How It Works (Simplified)
- Control system generates gate firing commands
- ESEL board distributes these signals
- EHPA amplifies the signals
- SCRs are triggered in precise sequence
- Generator field voltage is controlled
This process enables closed-loop excitation control.
