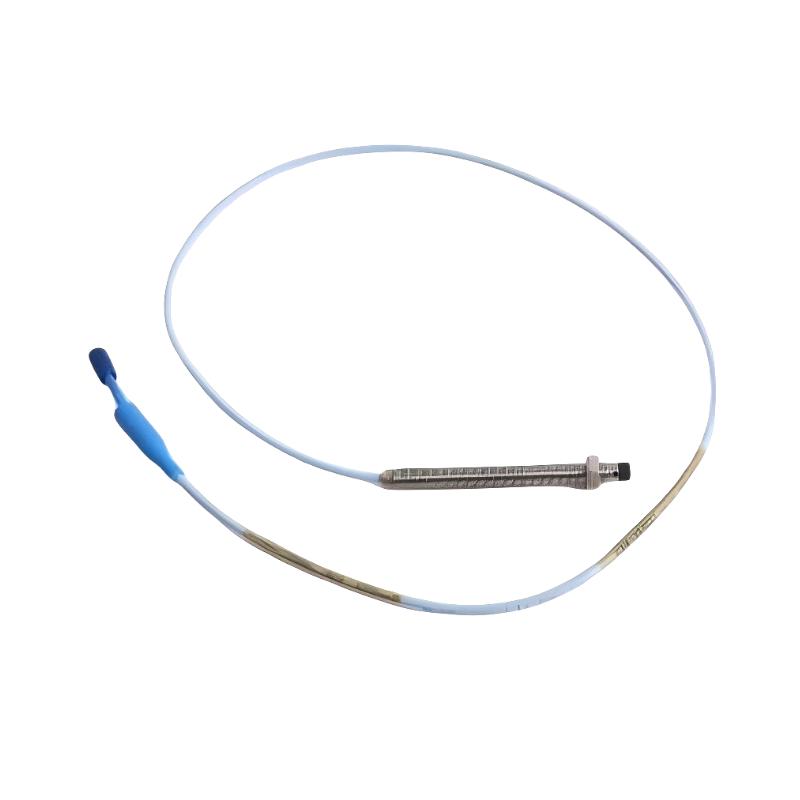

The Bently Nevada 330101-16-28-10-02-05 Proximity Probe is part of the 3300 XL 8 mm proximity transducer system, designed for high-accuracy shaft vibration and position measurement in rotating machinery such as turbines, compressors, pumps, and industrial motors.
It uses eddy current non-contact sensing technology and works together with a Proximitor sensor and extension cable to form a complete vibration monitoring chain. This model is widely applied in machinery protection systems across oil & gas, petrochemical, and power generation industries, where stable long-term signal performance and harsh environment resistance are required.
In this configuration, the model code defines key mechanical and electrical parameters. Based on the 3300 XL coding structure and confirmed specification patterns, “16” typically indicates a 1.6-inch case length, “28” indicates a 2.8-inch probe configuration, while “10-02-05” represents a 1.0 m cable, ClickLoc connector type, and CSA/ATEX/IECEx hazardous-area approval.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 330101-16-28-10-02-05 |
| Series | 3300 XL 8 mm Proximity Transducer System |
| Type | Proximity Probe |
| Measurement Principle | Eddy current displacement sensing |
| System 구성 | Probe + extension cable + Proximitor sensor |
| Probe Diameter | 8 mm |
| Thread Type | 3/8-24 UNF |
| Case Length Option | 1.6 in (code 16) |
| Probe Length Option | 2.8 in (code 28) (configuration-dependent interpretation) |
| Total Cable Length | 1.0 m (code 10) |
| Connector Type | Miniature ClickLoc coaxial connector (code 02) |
| Agency Approval | CSA / ATEX / IECEx (code 05) |
| Operating Temperature | -40°C to +85°C |
| Output Signal | Proportional displacement voltage |
Physical Specifications
| Item | Specification |
|---|---|
| Probe Assembly Length | Configuration-dependent |
| Cable Length | ~1.0 m |
| Weight | ~0.2–0.4 kg |
| Housing Material | Stainless steel probe body |
| Cable Type | Shielded coaxial industrial cable |
