Brand:Yokogawa Electric Item No.:AAI543-H00/K4S00 Product Origin:Japan Product Dimensions:107.5 × 32.8 × 130 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

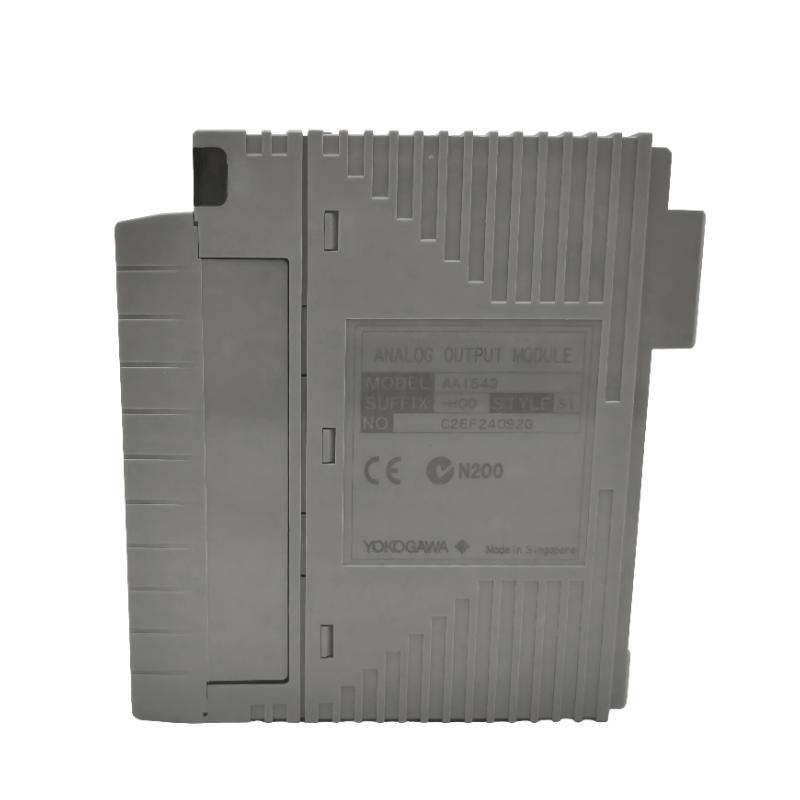

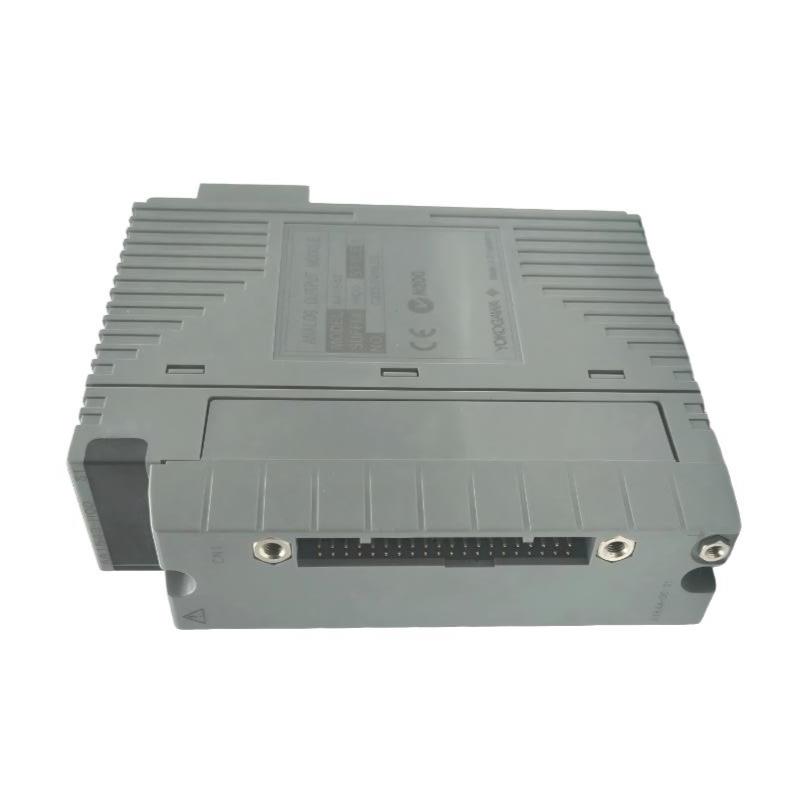

The Yokogawa AAI543-H00/K4S00 Analog Output Module functions as a key interface between the control processor and field-level devices. It converts digital control instructions into accurate analog current outputs, enabling precise regulation of process variables.
Engineered for industrial reliability, the module is built to operate consistently in demanding plant environments. Its predictable performance and integration within Yokogawa control systems make it a dependable choice for engineers responsible for maintaining stable and efficient process operations.
Technical Specifications
Parameter
Description
Product Type
Analog Output Module
Output Signal Type
Analog current output
Channel Structure
Multiple independent output channels
Configuration Method
Software-based configuration
Electrical Isolation
Channel and system isolation
System Compatibility
Yokogawa DCS I/O systems
Installation Method
Slot-mounted module
Dimensions (W × H × D)
107.5 × 32.8 × 130 mm
Weight
Approx. 0.4 kg
Recommended Related Models
Model
Module Type
Primary Role
Yokogawa AAI835
Analog Output Module
Standard process control output
Yokogawa AAI841
Analog Output Module
High-density analog output
Yokogawa AAI943
Analog Output Module
Advanced diagnostic support
Yokogawa AAI543-S00
Analog Output Module
Alternative configuration version
Yokogawa AAI141
Analog Input Module
Analog signal acquisition
Popular Related Models
Model
Module Type
Common Application
Yokogawa AAI833
Analog Output Module
General-purpose control
Yokogawa AAI143
Analog Input Module
Process monitoring
Yokogawa AAV144
Analog Input Module
High-accuracy measurement
Yokogawa AAI543-H10
Analog Output Module
Extended configuration variant
Yokogawa ADV151
Digital Input Module
Discrete signal processing
Applications
The Yokogawa AAI543-H00/K4S00 Analog Output Module is applied in industrial automation systems where accurate and stable analog output is required to control field equipment. It is commonly used in continuous and batch process environments such as chemical production units, oil and gas facilities, power plants, and large-scale manufacturing systems.
Within a distributed control system, this module is responsible for delivering precise control signals to final control elements including control valves, actuators, variable frequency drives, and positioning devices. Its consistent output performance makes it suitable for critical control loops where signal deviations can directly affect process efficiency and operational safety.
Advantages
The AAI543-H00/K4S00 is designed to provide reliable analog output under long-term, uninterrupted operation. Its stable current output contributes to smoother process control and reduces oscillation in closed-loop applications.
The module incorporates diagnostic capabilities that enhance system visibility and simplify troubleshooting during commissioning and operation. Electrical isolation and noise suppression features improve resistance to electromagnetic interference, allowing dependable performance in harsh industrial environments. As part of Yokogawa’s standardized I/O platform, it integrates easily into existing systems and supports scalable control architectures.
Technical FAQs
1. What type of analog output signal is supported by this module?
The module supports current-based analog output signals commonly used in industrial control systems.
2. How are output signal ranges configured?
Output ranges are configured through the control system software, allowing flexibility without physical adjustments.
3. Does the module provide isolation between channels?
Yes, the module includes isolation features to minimize interference between individual output channels.
4. How is output accuracy maintained during continuous operation?
High-precision components and internal calibration mechanisms help ensure stable and repeatable output performance.
5. Can the module detect wiring or load-related faults?
The module provides diagnostic feedback that enables the control system to identify abnormal output conditions.
6. How does the module behave during controller restart or system recovery?
The output behavior is managed in a controlled manner to prevent unintended signal changes during transitions.
7. How does the design reduce the impact of electrical noise?
Internal filtering and isolation techniques are used to protect output signals from external electrical interference.
8. Is it possible to monitor the status of individual output channels?
Yes, each channel can be monitored independently through the control system diagnostics.
9. Can this module be used in redundant control system configurations?
The AAI543-H00/K4S00 is compatible with Yokogawa systems that support redundancy at the controller or I/O level.
10. How is diagnostic information transmitted to the control system?
Diagnostic and status data are communicated via the system I/O bus to the control processor in real time.
