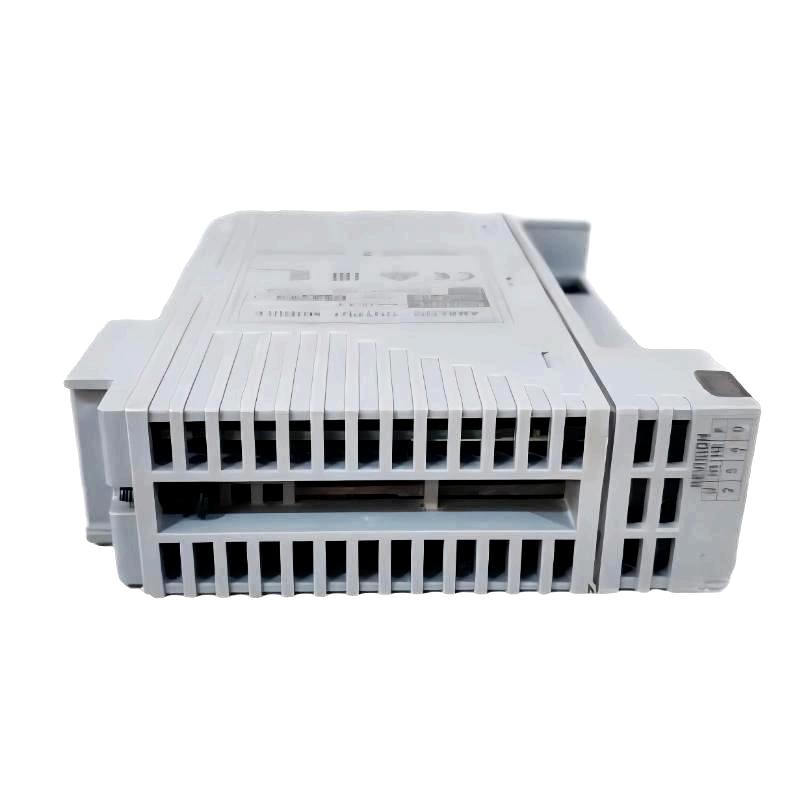

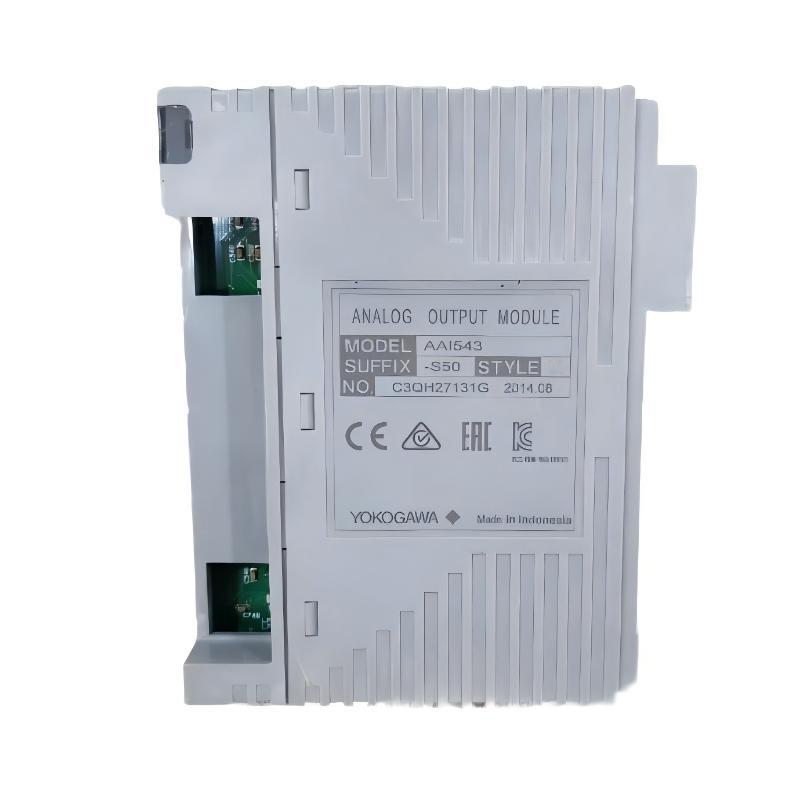

Yokogawa AAI543-S50 Analog Output Module

Industrial Process & Control Applications
The Yokogawa AAI543-S50 Analog Output Module is engineered to deliver precise analog control signals within distributed control systems. It is ideal for industries where dependable analog output is essential—such as petrochemical, power generation, refining, water treatment, and large-scale manufacturing. This module drives field instruments like control valves, actuators, and proportional devices, enabling accurate modulation of process variables for safe and efficient operation.

Key Advantages

• High-accuracy analog output: Provides stable and responsive control signals for field equipment.

• Robust industrial construction: Designed to withstand vibration, electrical noise, and temperature variations.

• Compact and space-efficient: Slim housing fits standard Yokogawa rack systems without compromising performance.

• Seamless system compatibility: Fully integrated with Yokogawa control architectures for simplified deployment.

• Reduced maintenance overhead: Modular design supports easy swapping and routine service.

Technical FAQs

1. What is the primary function of the AAI543-S50 module?
   It delivers analog output signals to control field devices such as valves, actuators, or analog indicators.

2. Which signal standards does it support?
   Typically 4–20 mA current outputs or equivalent industrial analog voltage outputs, depending on system configuration.

3. Can this module be used in continuous operation?
   Yes, it is designed for 24/7 use in industrial control environments.

4. Is it suitable for electrically noisy environments?
   Yes, the module includes internal isolation features that help maintain signal integrity.

5. What are the physical dimensions of the module?
   The AAI543-S50 measures 107.5 × 32.8 × 130 mm.

6. What is the weight of the module?
   It weighs approximately 0.4 kg.

7. How is the module installed?
   It installs directly into Yokogawa rack assemblies designed to accept AAI series I/O modules.

8. Does the module support diagnostics?
   When integrated with compatible host systems, it supports basic status reporting and fault indication.

9. Which industries commonly use this module?
   Typical deployment includes energy, chemicals, water/wastewater, refining, and industrial automation.

10. Is it suitable for hazardous area installations?
    The S50 version is intended for general industrial settings; explosion-proof variants must be specified separately.
