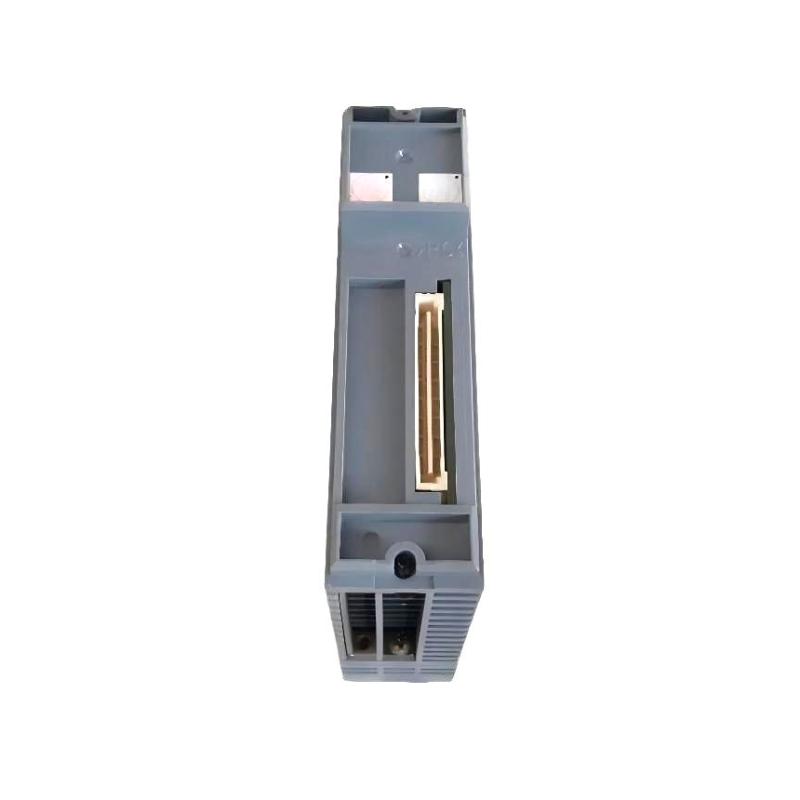

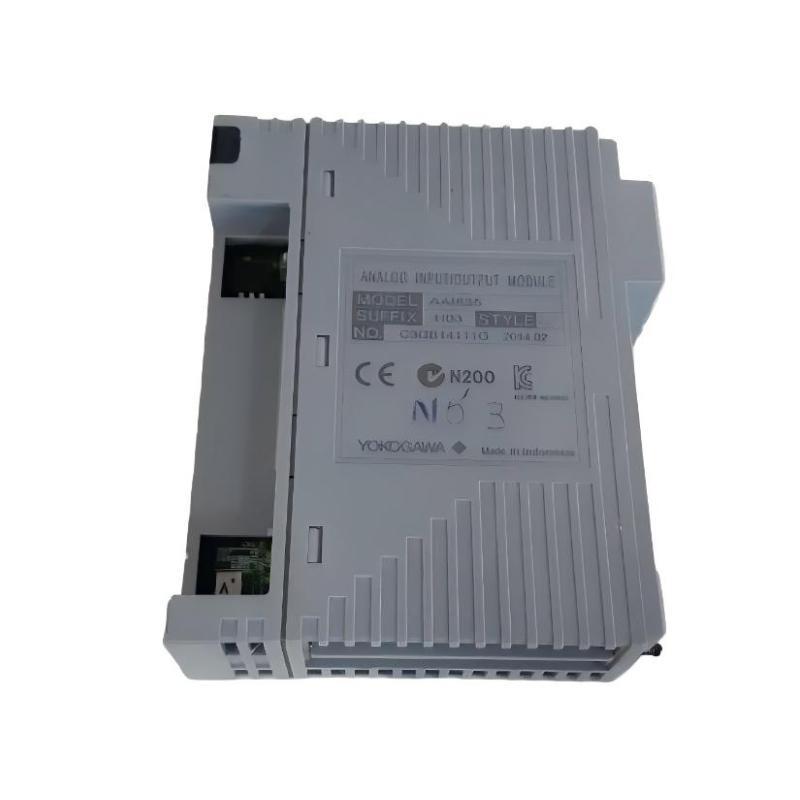

Yokogawa AAI835-H00 Analog I/O Module

Industrial Automation & Process Control Applications
The Yokogawa AAI835-H00 Analog I/O Module is engineered for versatile analog signal acquisition and control within distributed control systems (DCS). It is widely used in industries such as oil & gas, petrochemical, chemical processing, power generation, and utilities where precise measurement and dependable analog output are critical. This module supports both high-quality analog inputs and analog outputs, enabling seamless field device integration and stable control loop performance.

Key Advantages

• Combined I/O capability: Handles both analog input and output, reducing system complexity and saving cabinet space.

• Enhanced H00 functionality: Offers expanded device compatibility and richer features compared to standard variants.

• Robust industrial design: Built to withstand vibration, electrical noise, and temperature fluctuations typical of plant environments.

• Seamless system integration: Fully compatible with Yokogawa I/O racks and DCS platforms for streamlined deployment.

• Service-friendly architecture: Modular design simplifies installation, troubleshooting, and future upgrades.

Technical FAQs

1. What is the purpose of the AAI835-H00 module?
   It provides both analog input and output capabilities for process measurement and control.

2. Which types of signals does it support?
   Standard industrial analog signals such as 4–20 mA current loops and compatible voltage ranges.

3. Is the module suitable for continuous operation?
   Yes, it is designed for reliable 24/7 industrial use.

4. Does it provide channel isolation?
   Yes, electrical isolation is provided to help maintain signal integrity in electrically noisy environments.

5. What makes the H00 variant different?
   The H00 variant typically includes enhanced features or broader device support compared to basic (S00) models.

6. What are the physical dimensions of the module?
   The module measures 107.5 × 32.8 × 130 mm.

7. How much does it weigh?
   It weighs approximately 0.3 kg.

8. How is the module installed?
   It mounts into Yokogawa I/O racks designed for AAI series modules.

9. Can it support diagnostics?
   When integrated with compatible host systems, basic status and fault reporting may be supported.

10. Is this module suitable for hazardous areas?
    The H00 version is intended for general industrial environments; explosion-proof or intrinsic-safe versions are specified separately.
