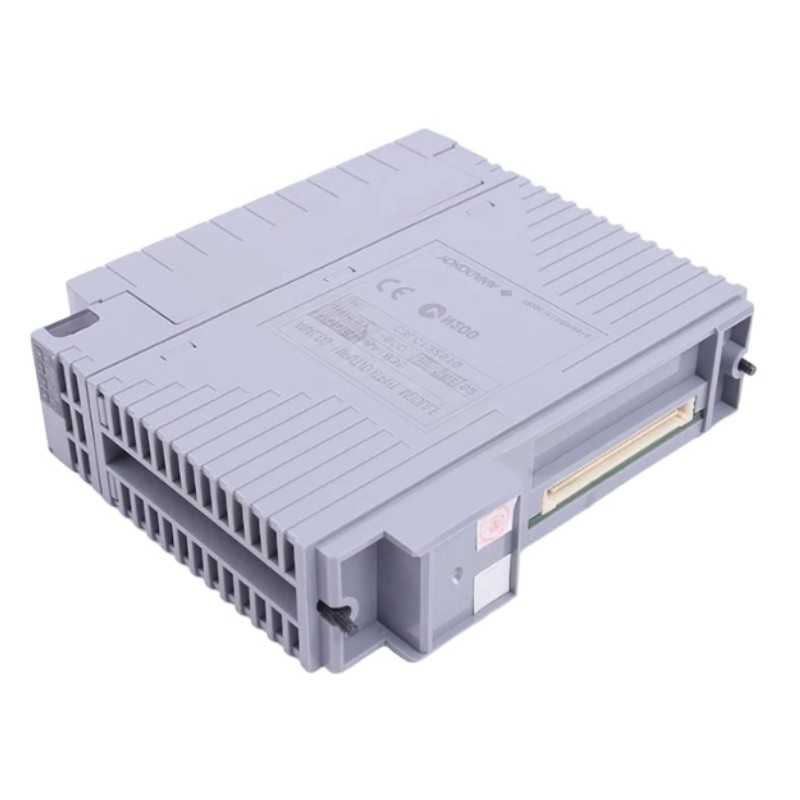

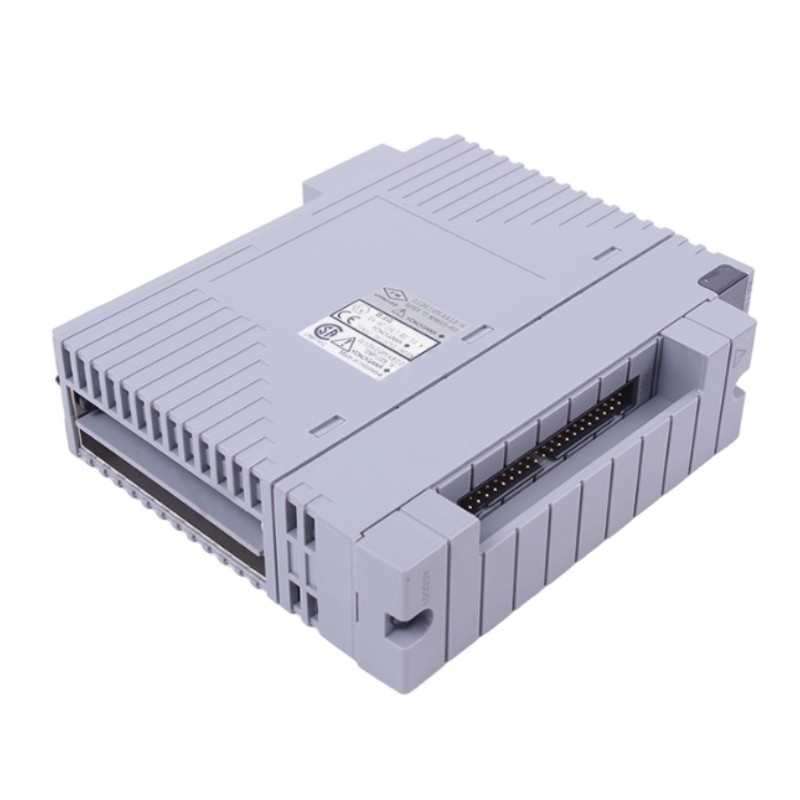

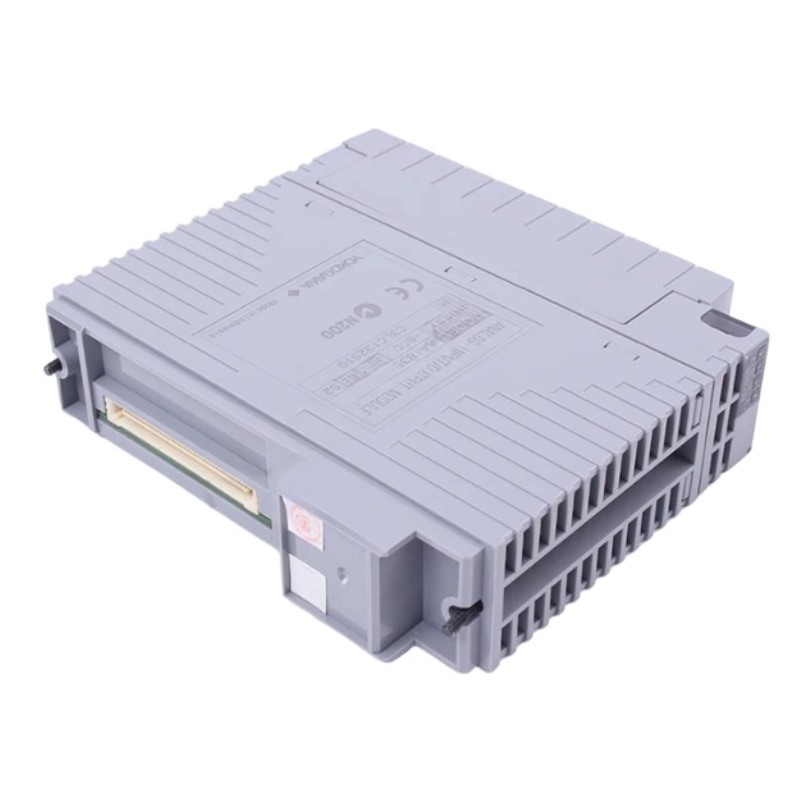

Yokogawa AAI835-S00 Analog I/O Module

Industrial Process Control Applications
The Yokogawa AAI835-S00 Analog I/O Module is a versatile analog interface designed for distributed control systems (DCS). It is widely used in industries such as oil & gas, refining, petrochemical, power generation, water/wastewater, and industrial manufacturing where accurate analog signal monitoring and control are essential. This module combines analog input and output capabilities in one compact unit, enabling efficient process measurement and control in real-time.

Key Advantages

• Combined Analog I/O: Provides both analog input and output signals in a single module, reducing cabinet space and simplifying wiring.

• Reliable industrial performance: Engineered to endure vibration, electrical noise, and wide temperature fluctuations found in plant environments.

• Compact and modular design: Slim form factor supports high-density I/O configurations in Yokogawa racks.

• Seamless integration: Works natively with Yokogawa DCS platforms and standard I/O carriers for easy deployment.

• Service-friendly architecture: Modular construction allows straightforward installation, maintenance, and future system expansion.

Technical FAQs

1. What is the primary function of the AAI835-S00 module?
   It provides combined analog input and output functionality for process measurement and control.

2. Which signal types does it support?
   It handles standard industrial analog formats such as 4–20 mA current loops and compatible voltage signals.

3. Is this module suitable for continuous operation?
   Yes, it is designed for reliable 24/7 performance in industrial environments.

4. Does it include channel isolation?
   Yes, electrical isolation features help maintain signal integrity in electrically noisy conditions.

5. What are the physical dimensions?
   The module measures 107.5 × 32.8 × 130 mm.

6. How much does the module weigh?
   It weighs approximately 0.3 kg.

7. How is the module installed?
   It installs into standard Yokogawa I/O rack carriers.

8. Does it support system diagnostics?
   When used with compatible host systems, basic status reporting and fault indication may be supported.

9. Which industries typically implement this module?
   Common applications include petrochemical, utility, power, water/wastewater, and general process automation.

10. Is it suitable for hazardous areas?
    The S00 version is intended for general industrial environments; explosion-proof or intrinsically safe variants must be specified separately.
