Brand:Yokogawa Electric Item No.:AAI543-H50/ATA4S-00 Product Origin:Japan Product Dimensions:107.5 × 32.8 × 130 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

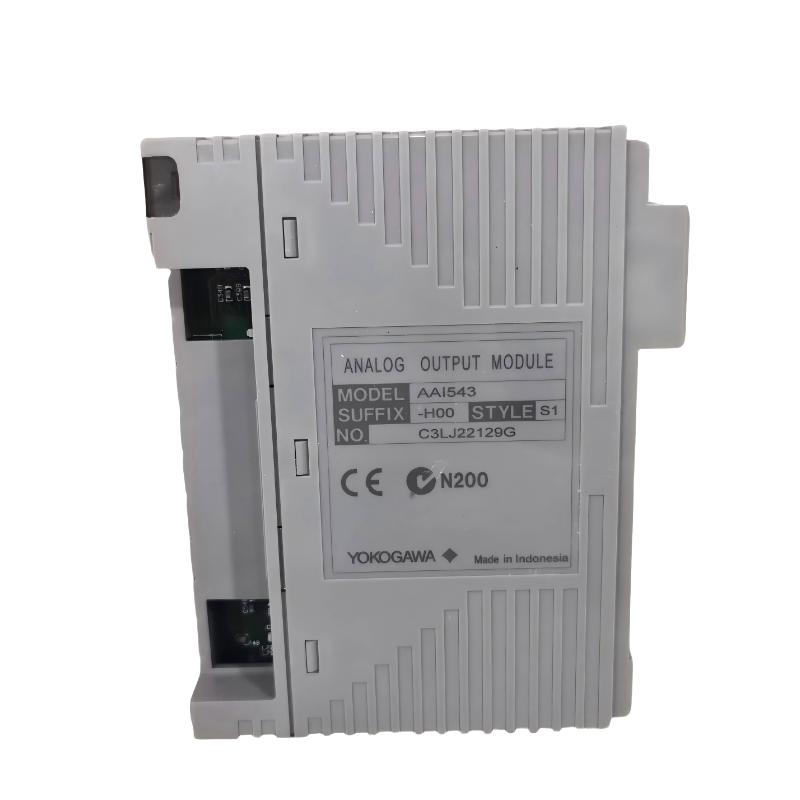

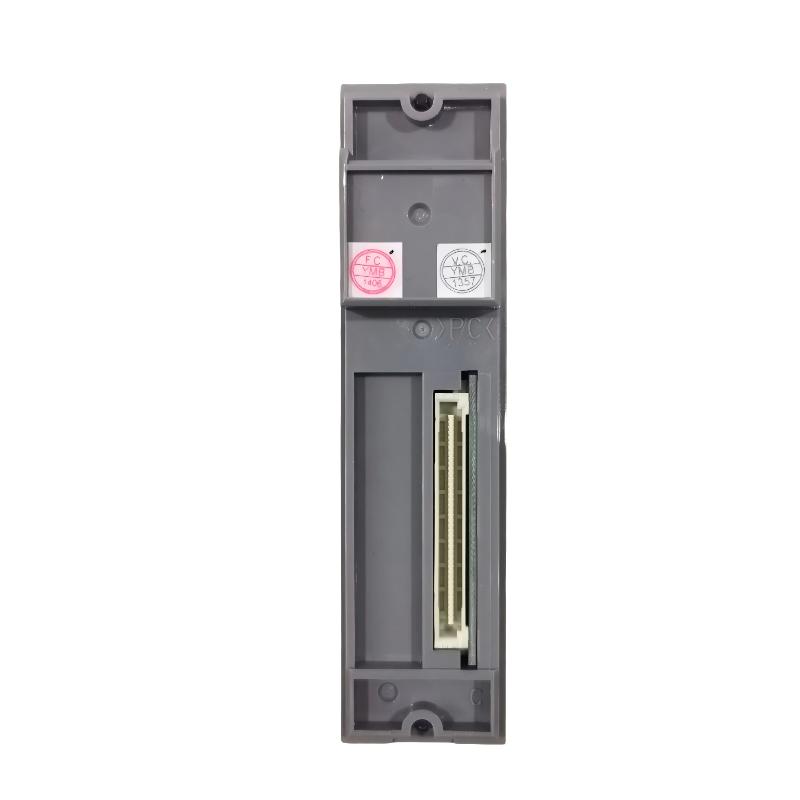

The Yokogawa AAI543-H50/ATA4S-00 Analog Output Module is designed to convert digital control signals into accurate analog outputs for industrial field devices. It ensures that control strategies developed at the system level are executed precisely at the process level.
Built for demanding industrial environments, this module emphasizes signal integrity, operational reliability, and seamless integration within Yokogawa automation systems. Its consistent performance supports continuous operation and high-precision process control.
Technical Specifications
Parameter
Description
Product Type
Analog Output Module
Output Signal Type
Analog current output
Channel Structure
Multiple independent output channels
Output Configuration
Software configurable
Diagnostic Functions
Channel-level status and fault monitoring
Electrical Isolation
Channel and system isolation
System Compatibility
Yokogawa DCS I/O systems
Dimensions (W × H × D)
107.5 × 32.8 × 130 mm
Weight
0.4 kg
Recommended Related Models
Model
Module Type
Primary Application
Yokogawa AAI543-H50
Analog Output Module
Standard H50 variant
Yokogawa AAI543-H50 S1
Analog Output Module
Enhanced reliability variant
Yokogawa AAI543-H50/A4D00
Analog Output Module
Alternative H50 configuration
Yokogawa AAI835
Analog Output Module
General-purpose output
Yokogawa AAI943
Analog Output Module
Advanced diagnostics
Popular Related Models
Model
Module Type
Common Use
Yokogawa AAI833
Analog Output Module
Standard process control outputs
Yokogawa AAI143
Analog Input Module
Process variable monitoring
Yokogawa AAV144
Analog Input Module
High-accuracy measurement
Yokogawa ADV151
Digital Input Module
Discrete signal handling
Yokogawa AAI141
Analog Input Module
General-purpose analog acquisition
Applications
The Yokogawa AAI543-H50/ATA4S-00 Analog Output Module is engineered for high-performance industrial control systems requiring precise and reliable analog output. It is commonly deployed in continuous-process industries such as oil and gas, petrochemical refining, power generation, and large-scale manufacturing facilities.
This module is designed to deliver accurate control signals to final control elements, including valves, actuators, and motor drives. It supports multi-loop control and coordinated operations, ensuring that commands from the control system are faithfully executed at the field level, even under variable process loads or complex automation strategies.
Advantages
The AAI543-H50/ATA4S-00 provides stable and repeatable analog output, enhancing control loop performance and reducing unnecessary wear on field devices. Its robust design ensures reliable operation in demanding industrial environments.
Integrated diagnostics offer real-time monitoring of output channels, enabling rapid detection of anomalies and facilitating preventive maintenance. Electrical isolation and noise suppression improve signal integrity, while seamless integration within Yokogawa’s I/O platform ensures predictable system behavior and consistent performance across expansions.
Technical FAQs
1. What is the primary function of the AAI543-H50/ATA4S-00 in a DCS?
It converts digital control instructions into precise analog current signals to operate field-level devices.
2. How does this module maintain output accuracy under varying load conditions?
The module uses precision internal components and signal conditioning to ensure stable and reliable outputs regardless of load fluctuations.
3. Can the output channels be configured for independent control loops?
Yes, each channel functions independently, allowing multiple loops to run simultaneously without interference.
4. What kind of diagnostic feedback is available to operators?
The module provides channel-level status, fault detection, and abnormal condition reports to the control system for monitoring.
5. How does the module handle rapid changes in control commands?
Smooth transitions are maintained through internal signal processing to prevent abrupt movements in field devices.
6. Is the AAI543-H50/ATA4S-00 suitable for critical process loops?
Yes, its reliable output performance makes it ideal for controlling high-value valves, actuators, and drives.
7. Can output configuration be modified after commissioning?
Yes, output parameters can be adjusted through software to accommodate evolving process requirements.
8. How does the module reduce the impact of electrical interference?
Electrical isolation and internal filtering protect output signals from noise and external disturbances.
9. How does this module contribute to coordinated multi-loop control?
Its consistent output behavior allows multiple loops to operate in sync, maintaining overall system stability.
10. Which applications benefit most from the ATA4S-00 variant?
Processes with dynamic control requirements or critical multi-loop control benefit most from this module’s precision and stability.
