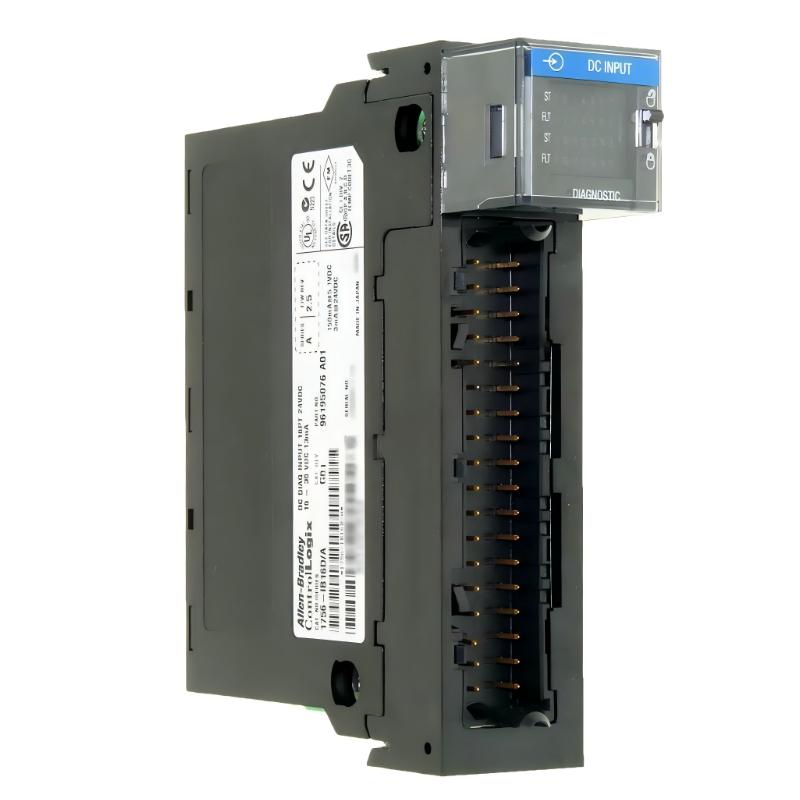

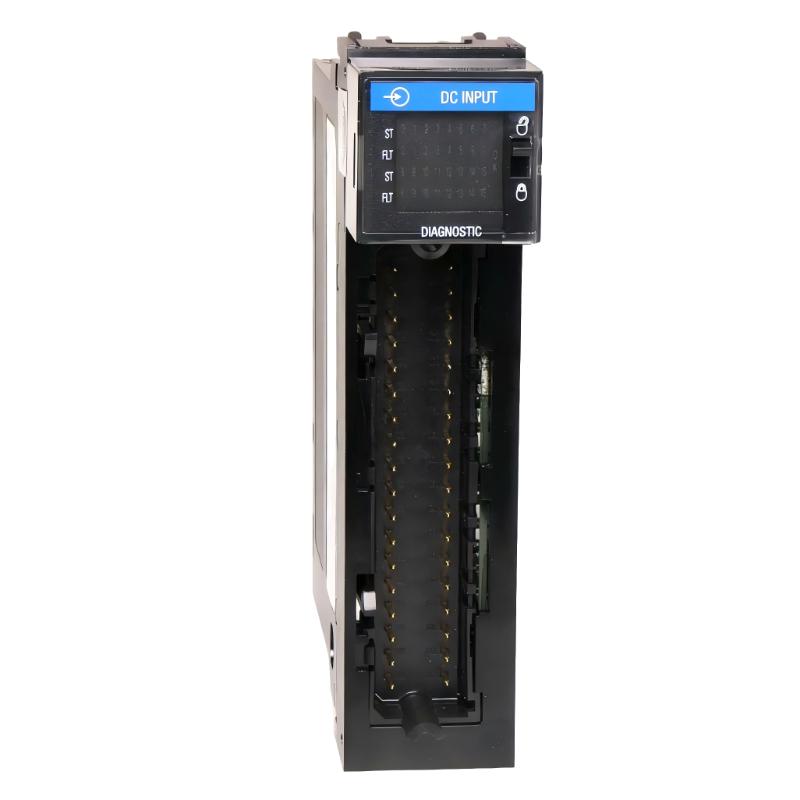

Allen Bradley 1756-IB16DK ControlLogix Diagnostic Input Module
Allen Bradley 1756-IB16DK ControlLogix Diagnostic Input Module
0.0
Points
Brand:Allen Bradley PLC Item No.:1756-IB16DK Product Origin:USA Product Dimensions:144.57 x 22 x 105.42 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1756-IB16DK ControlLogix Diagnostic Input Module provides high-performance digital input monitoring with advanced diagnostics. Its compact design, reliability, and seamless integration into ControlLogix systems make it an essential component for predictive maintenance, machine monitoring, and process automation.
Technical Specifications
Parameter
Specification
Dimensions (L × W × H)
144.57 × 22 × 105.42 mm
Weight
0.45 kg / 0.992 lb
Number of Channels
16 Digital Inputs
Input Voltage
24V DC
Mounting Options
ControlLogix Backplane
Function
Diagnostic Digital Input Module
Applications
Machine Monitoring, Process Control, Predictive Maintenance
The Allen Bradley 1756-IB16DK is a ControlLogix Diagnostic Input Module designed for monitoring and capturing high-resolution digital input signals in automation systems. It provides advanced diagnostic capabilities, enabling proactive maintenance and system health monitoring.
Ideal for manufacturing automation, critical process control, and machine monitoring where diagnostic feedback is crucial to reduce downtime.
Advantages
Enhanced Diagnostics: Captures detailed input signals for real-time monitoring and troubleshooting.
Compact and Lightweight: 144.57 × 22 × 105.42 mm; 0.45 kg / 0.992 lb, saving space in control cabinets.
High Reliability: Industrial-grade design ensures accurate signal acquisition under electrical noise and vibration.
Seamless ControlLogix Integration: Works directly with ControlLogix controllers for efficient system management.
Proactive Maintenance: Helps identify potential system issues before failure, reducing operational downtime.
Technical FAQs
What is the main function of the 1756-IB16DK?
Provides 16 digital input channels with diagnostic capabilities for ControlLogix systems.
Is it compatible with all ControlLogix controllers?
Fully compatible with ControlLogix 5000 series systems.
Does it provide real-time diagnostics?
Yes, it can report input status, channel faults, and abnormal conditions to the controller.
What types of signals are supported?
Standard 24V DC discrete signals from sensors, switches, and contactors.
Can it operate in harsh industrial environments?
Yes, designed to tolerate vibration, electrical noise, and temperature variations.
How is the module mounted?
Directly onto ControlLogix backplanes in standard 1756 chassis.
Does it support hot-swapping?
Yes, modules can be replaced without shutting down the system when following ControlLogix hot-swap procedures.
What is the typical response time for inputs?
High-speed digital inputs with low-latency reporting suitable for critical automation applications.
Can multiple modules be used together?
Yes, multiple diagnostic input modules can expand the monitoring capacity.
Does it provide fault logging or history?
Yes, diagnostic data can be logged through the ControlLogix system for historical analysis and troubleshooting.
