Brand:Yokogawa Electric Item No.:AAI543-H60 S1 Product Origin:Japan Product Dimensions:107.5 × 32.8 × 130 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

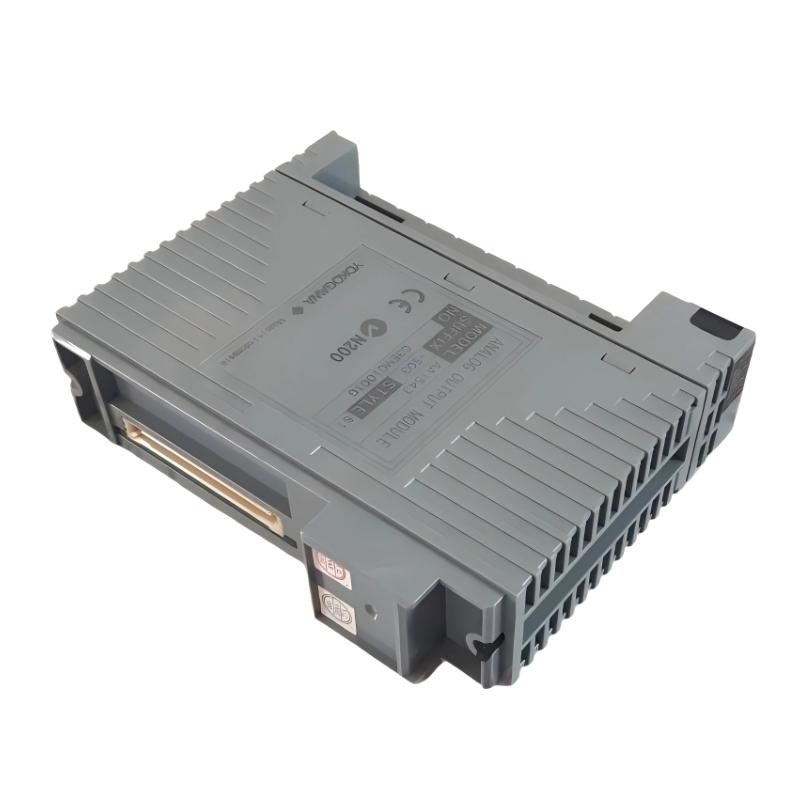

The Yokogawa AAI543-H60 S1 Analog Output Module converts digital control signals into accurate analog outputs for industrial field devices. It ensures that control strategies executed at the system level are reliably reflected in field-level operations, supporting continuous and stable process control.
Engineered for demanding industrial environments, the module emphasizes operational reliability, signal integrity, and seamless integration with Yokogawa automation platforms. Its consistent performance ensures precise process control and uninterrupted plant operation.
Technical Specifications
Parameter
Description
Product Type
Analog Output Module
Output Signal Type
Analog current output
Channel Structure
Multiple independent output channels
Output Configuration
Software configurable
Diagnostic Functions
Channel-level status and fault monitoring
Electrical Isolation
Channel and system isolation
System Compatibility
Yokogawa DCS I/O systems
Dimensions (W × H × D)
107.5 × 32.8 × 130 mm
Weight
0.4 kg
Recommended Related Models
Model
Module Type
Primary Application
Yokogawa AAI543-H60
Analog Output Module
Standard H60 variant
Yokogawa AAI543-H53 S1
Analog Output Module
H53 high-reliability variant
Yokogawa AAI543-H50 S1
Analog Output Module
H50 series high-reliability variant
Yokogawa AAI835
Analog Output Module
General-purpose output
Yokogawa AAI943
Analog Output Module
Advanced diagnostics
Popular Related Models
Model
Module Type
Common Use
Yokogawa AAI833
Analog Output Module
Standard process control outputs
Yokogawa AAI143
Analog Input Module
Process variable monitoring
Yokogawa AAV144
Analog Input Module
High-accuracy analog measurement
Yokogawa ADV151
Digital Input Module
Discrete signal handling
Yokogawa AAI141
Analog Input Module
General-purpose analog acquisition
Applications
The Yokogawa AAI543-H60 S1 Analog Output Module is designed for high-precision and reliable analog signal control in industrial automation environments. It is widely applied in industries such as petrochemical refining, oil and gas processing, power generation, and heavy manufacturing.
This module provides accurate analog output to critical final elements, including control valves, actuators, and variable-speed drives. It is particularly well-suited for multi-loop and coordinated control systems, ensuring that control commands are faithfully executed at the field level even during rapidly changing process conditions.
Advantages
The AAI543-H60 S1 offers stable and repeatable output performance, enhancing control loop accuracy and reducing mechanical stress on field devices. Its robust design ensures dependable operation under harsh industrial conditions.
The module features real-time diagnostics that allow operators to monitor channel performance and detect anomalies early, supporting preventive maintenance. Electrical isolation and noise suppression ensure reliable signal integrity. Seamless integration with Yokogawa’s I/O platform guarantees consistent behavior and predictable performance across system expansions.
Technical FAQs
1. What is the primary purpose of the AAI543-H60 S1?
It converts digital control instructions from the DCS into precise analog current outputs for field devices.
2. How does the module maintain signal accuracy under fluctuating process conditions?
High-precision components and internal signal conditioning ensure stable outputs despite variations in load or process dynamics.
3. Can output channels operate independently for separate loops?
Yes, each channel can be configured independently to support multiple simultaneous control loops.
4. How are channel faults or abnormal conditions communicated?
The module reports channel-level diagnostics, including fault and abnormal status, to the control system for monitoring.
5. How does the module respond to rapid changes in control commands?
Internal signal smoothing ensures smooth transitions, preventing abrupt movements of connected field devices.
6. Is the AAI543-H60 S1 suitable for high-criticality loops?
Yes, its reliable and repeatable outputs make it ideal for controlling critical valves, actuators, and drives.
7. Can output ranges or parameters be adjusted after commissioning?
Yes, the module allows software-based configuration to adapt output parameters to changing process requirements.
8. How does the module handle electrical noise in industrial environments?
Electrical isolation and internal filtering reduce the effect of noise, maintaining accurate signal delivery.
9. How does this module support coordinated multi-loop control?
Consistent output behavior allows multiple loops to operate in sync, improving overall process stability.
10. Which applications benefit most from the H60 S1 variant?
High-performance control loops and dynamic process applications benefit most from the module’s precision and reliability.
