Brand:Yokogawa Electric Item No.:AAI543-H60/K4A00 Product Origin:Japan Product Dimensions:107.5 × 32.8 × 130 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

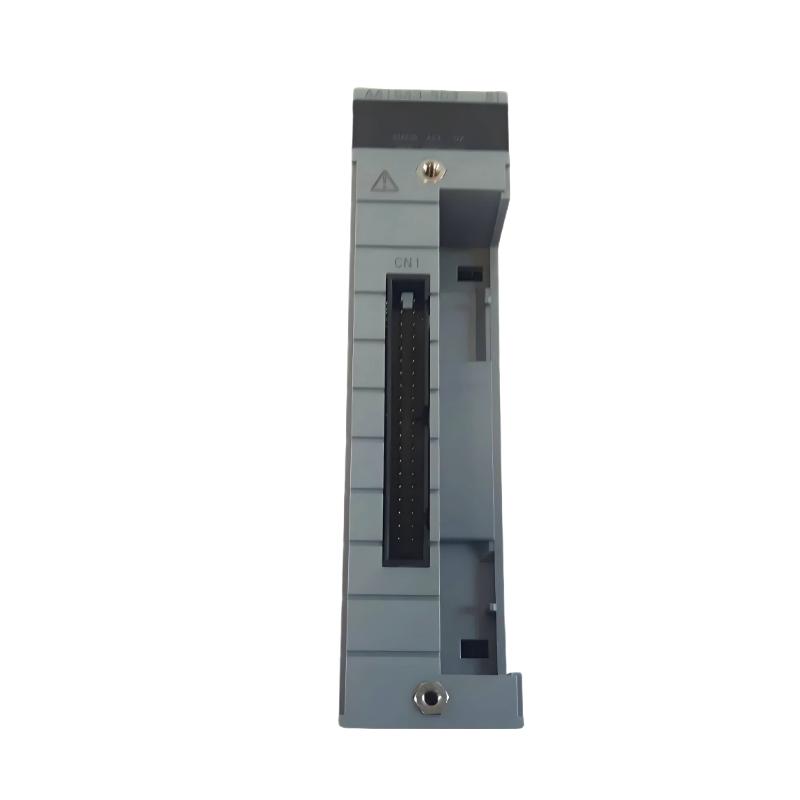

The Yokogawa AAI543-H60/K4A00 Analog Output Module converts digital control signals into accurate analog outputs for industrial field devices. It ensures that control strategies executed at the system level are faithfully carried out at the field level, supporting continuous and stable plant operation.
Built for demanding industrial environments, this module emphasizes signal integrity, operational reliability, and seamless integration within Yokogawa automation systems. Its consistent output performance ensures precise process control and uninterrupted operation.
Technical Specifications
Parameter
Description
Product Type
Analog Output Module
Output Signal Type
Analog current output
Channel Structure
Multiple independent output channels
Output Configuration
Software configurable
Diagnostic Functions
Channel-level status and fault monitoring
Electrical Isolation
Channel and system isolation
System Compatibility
Yokogawa DCS I/O systems
Dimensions (W × H × D)
107.5 × 32.8 × 130 mm
Weight
0.4 kg
Recommended Related Models
Model
Module Type
Primary Application
Yokogawa AAI543-H60
Analog Output Module
Standard H60 variant
Yokogawa AAI543-H60 S1
Analog Output Module
High-reliability H60 variant
Yokogawa AAI543-H53/A4D00
Analog Output Module
H53 series alternative configuration
Yokogawa AAI835
Analog Output Module
General-purpose output
Yokogawa AAI943
Analog Output Module
Advanced diagnostics
Popular Related Models
Model
Module Type
Common Use
Yokogawa AAI833
Analog Output Module
Standard process control outputs
Yokogawa AAI143
Analog Input Module
Process variable monitoring
Yokogawa AAV144
Analog Input Module
High-accuracy measurement
Yokogawa ADV151
Digital Input Module
Discrete signal handling
Yokogawa AAI141
Analog Input Module
General-purpose analog acquisition
Applications
The Yokogawa AAI543-H60/K4A00 Analog Output Module is engineered for precise and reliable analog signal control in industrial automation systems. It is widely used in industries such as petrochemical refining, oil and gas processing, power generation, and heavy manufacturing.
This module delivers accurate control signals to critical final elements including control valves, actuators, and motor drives. It is suitable for multi-loop and coordinated control applications, ensuring that commands from the control system are executed accurately at the field level, even under dynamic process conditions or rapidly changing loads.
Advantages
The AAI543-H60/K4A00 offers stable and repeatable analog output, improving control loop performance and reducing mechanical stress on field devices. Its durable design ensures dependable operation in demanding industrial environments.
Advanced diagnostics provide real-time feedback on each output channel, enabling operators to quickly identify anomalies and perform preventive maintenance. Electrical isolation and noise suppression maintain signal integrity, while seamless integration within Yokogawa’s I/O platform guarantees consistent performance across expansions and system upgrades.
Technical FAQs
1. What is the main function of the AAI543-H60/K4A00?
It converts digital commands from the DCS into precise analog current outputs for field devices.
2. How does the module maintain output stability under varying process conditions?
High-precision internal components and signal conditioning ensure consistent output despite changes in load or process dynamics.
3. Can the output channels operate independently?
Yes, each channel functions independently, allowing multiple loops to run simultaneously without interference.
4. How are abnormal conditions or faults reported?
The module provides channel-level diagnostics and communicates detected faults to the control system for monitoring and troubleshooting.
5. How does the module respond to fast-changing control signals?
Smooth signal transitions are maintained to prevent abrupt movements of field devices, supporting stable process control.
6. Is the AAI543-H60/K4A00 suitable for high-criticality loops?
Yes, its reliable and repeatable outputs make it ideal for controlling high-value valves, actuators, and drives.
7. Can output ranges be adjusted after installation?
Yes, software configuration allows adjustment of output parameters to meet evolving process requirements.
8. How does the module resist electrical noise in industrial environments?
Electrical isolation and filtering reduce the impact of interference, ensuring accurate signal delivery.
9. How does this module support coordinated multi-loop control?
Its consistent output performance enables multiple loops to operate in sync, enhancing overall system stability.
10. Which applications benefit most from the H60/K4A00 variant?
Dynamic process control loops and applications requiring high-precision analog outputs gain the most from this module.
