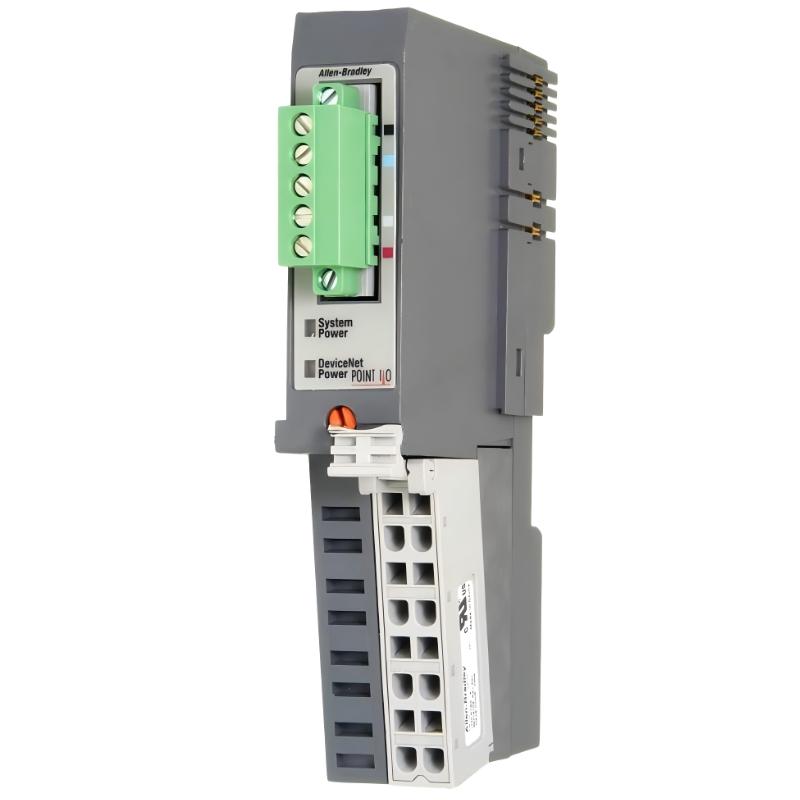

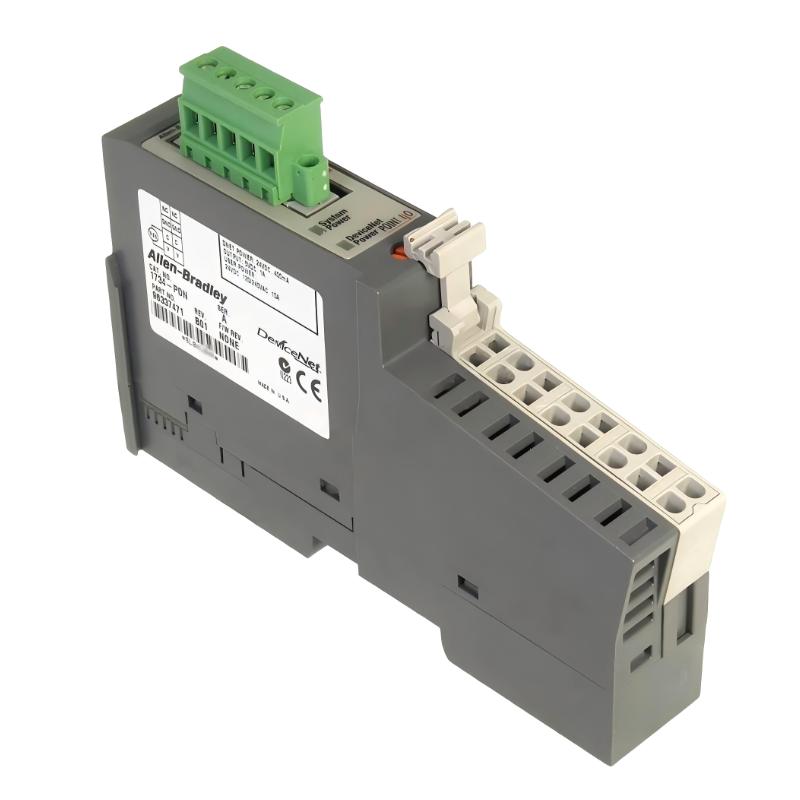

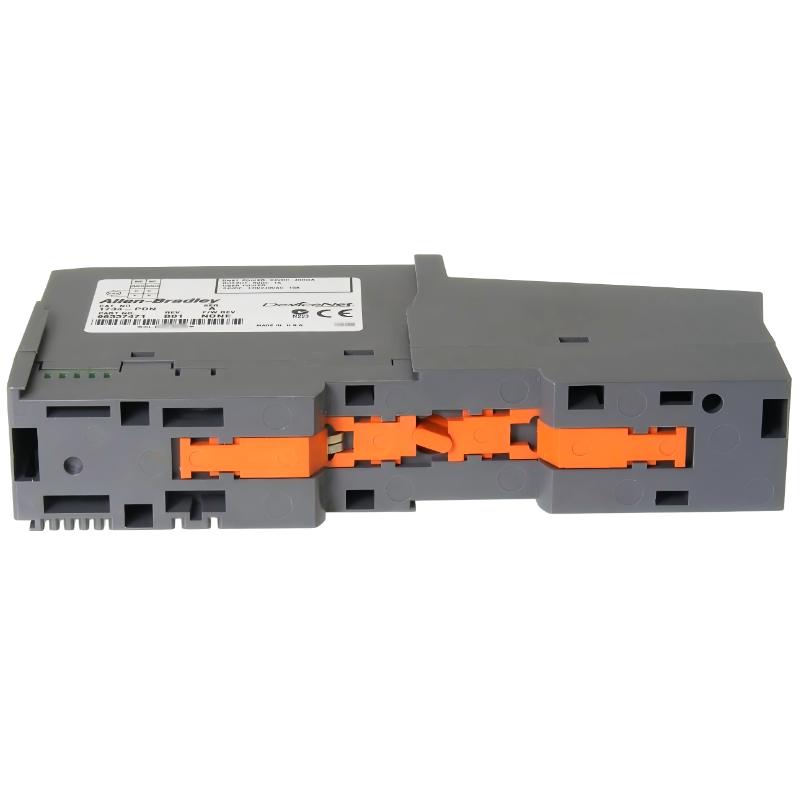

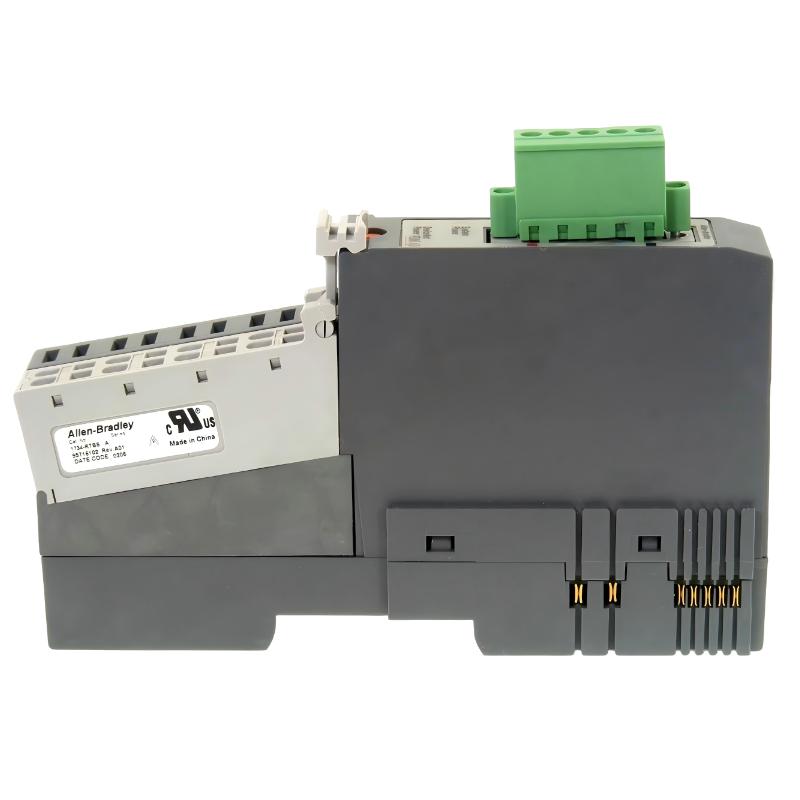

Allen Bradley 1734-PDN Point I/O DeviceNet Interface Module
Allen Bradley 1734-PDN Point I/O DeviceNet Interface Module
0.0
Points
Brand:Woodward Item No.:1734-PDN Product Origin:USA Product Dimensions:133.4 x 25.4 x 76.2 mm Product Weight:0.13 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 1734-PDN Point I/O DeviceNet Interface Module provides reliable, high-speed DeviceNet connectivity for distributed Point I/O networks. Its compact design, ease of integration, and diagnostic capabilities make it ideal for engineers designing modular and scalable automation systems. This module simplifies network communication, enabling efficient and precise control of industrial processes.
Technical Specifications
Specification
Details
Module Type
Communication Module – DeviceNet Interface
Protocol
DeviceNet
Compatible I/O Modules
Allen Bradley 1734 Point I/O
Protections
Short-circuit, overload, and diagnostic monitoring
Environmental Ratings
Shock, vibration, industrial temperature tolerant
Operating Temperature
0°C to 55°C (32°F to 131°F)
Storage Temperature
-20°C to 70°C (-4°F to 158°F)
Mounting
DIN rail or panel mountable
Dimensions (H × W × D)
133.4 × 25.4 × 76.2 mm (5.25 × 1 × 3 in)
Weight
0.13 kg (0.29 lbs)
Applications
The Allen Bradley 1734-PDN Point I/O DeviceNet Interface Module is designed for robust DeviceNet communication in distributed automation systems. Key applications include:
Connecting Allen Bradley Point I/O modules to DeviceNet networks for data exchange.
Integration with CompactLogix, ControlLogix, and other DeviceNet-compatible controllers.
Providing a cost-effective solution for small- to medium-scale automation systems.
Supporting remote I/O expansion in manufacturing, process control, and material handling systems.
Enabling modular I/O system architectures with simplified network wiring.
This module provides reliable, high-speed communication between distributed I/O and DeviceNet networks, critical for real-time automation control.
Advantages
Compact and Lightweight: 133.4 × 25.4 × 76.2 mm, 0.13 kg – perfect for tight control panel spaces.
DeviceNet Connectivity: Seamlessly links Point I/O modules to DeviceNet networks.
High-Speed Communication: Enables efficient data transfer for real-time applications.
Easy Integration: Fully compatible with Allen Bradley 1734 Point I/O systems.
LED Status Indicators: Provides diagnostic feedback for network health and module operation.
Modular and Scalable: Supports expansion of I/O networks without complex rewiring.
Technical FAQs
Which communication protocol does it support?
DeviceNet, supporting full integration with DeviceNet networks.
How many I/O modules can it interface with?
Can interface with multiple Point I/O modules, depending on network configuration.
Does it support hot-swapping?
Yes, allows replacement of I/O modules without shutting down the network.
Is it compatible with ControlLogix and CompactLogix systems?
Yes, fully compatible with both platforms via DeviceNet.
Does it provide diagnostics for network faults?
Yes, LEDs and software diagnostics indicate module and network status.
Can it operate in harsh industrial environments?
Yes, designed for standard industrial temperature, shock, and vibration conditions.
What is the maximum DeviceNet data rate?
Supports standard DeviceNet speeds up to 500 kbps.
Is firmware updatable?
Yes, firmware can be updated via DeviceNet network tools.
Can it support redundant networks?
DeviceNet networks do not natively support redundancy; consult system design guidelines.
Is it easy to mount in panels or racks?
Yes, supports standard DIN rail or panel mounting.
