Brand:Yokogawa Electric Item No.:AAI543-H61/K4A00 Product Origin:Japan Product Dimensions:107.5 × 32.8 × 130 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

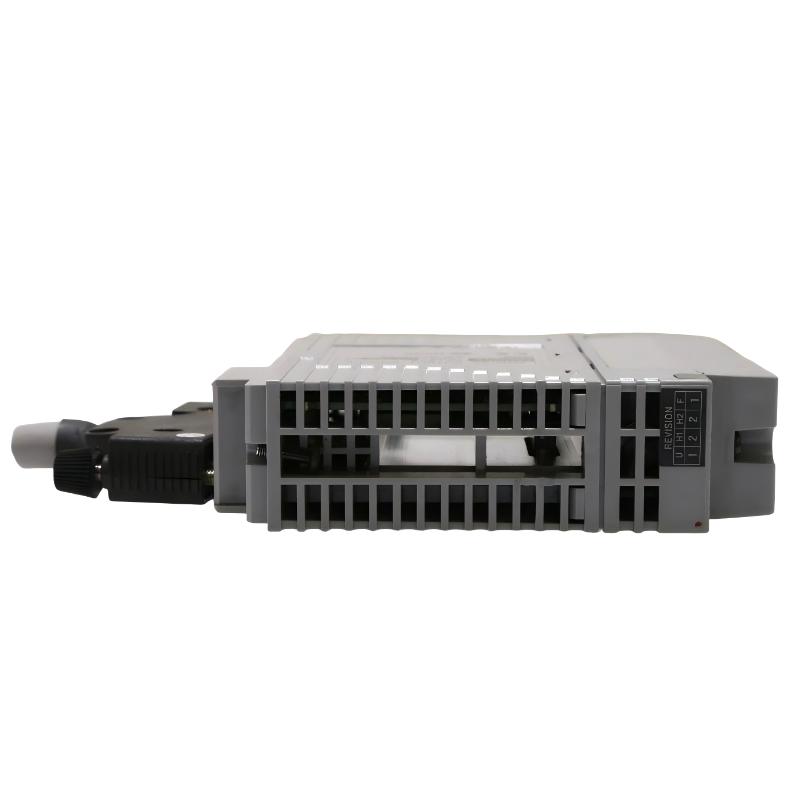

The Yokogawa AAI543-H61/K4A00 Analog Output Module converts digital control signals into precise analog outputs for industrial field devices. It ensures that control strategies executed at the system level are faithfully implemented at the field level, supporting continuous and reliable plant operations.
Designed for demanding industrial environments, this module emphasizes signal integrity, operational reliability, and seamless integration within Yokogawa automation systems. Its consistent output performance enables accurate process control and uninterrupted operation.
Technical Specifications
Parameter
Description
Product Type
Analog Output Module
Output Signal Type
Analog current output
Channel Structure
Multiple independent output channels
Output Configuration
Software configurable
Diagnostic Functions
Channel-level status and fault monitoring
Electrical Isolation
Channel and system isolation
System Compatibility
Yokogawa DCS I/O systems
Dimensions (W × H × D)
107.5 × 32.8 × 130 mm
Weight
0.4 kg
Recommended Related Models
Model
Module Type
Primary Application
Yokogawa AAI543-H60/K4A00
Analog Output Module
H60 series variant
Yokogawa AAI543-H60 S1
Analog Output Module
High-reliability H60 variant
Yokogawa AAI543-H53/A4D00
Analog Output Module
H53 configurable variant
Yokogawa AAI835
Analog Output Module
General-purpose output
Yokogawa AAI943
Analog Output Module
Advanced diagnostics
Popular Related Models
Model
Module Type
Common Use
Yokogawa AAI833
Analog Output Module
Standard process control outputs
Yokogawa AAI143
Analog Input Module
Process variable monitoring
Yokogawa AAV144
Analog Input Module
High-accuracy analog measurement
Yokogawa ADV151
Digital Input Module
Discrete signal handling
Yokogawa AAI141
Analog Input Module
General-purpose analog acquisition
Applications
The Yokogawa AAI543-H61/K4A00 Analog Output Module is designed for precise and dependable analog signal control in industrial automation systems. It is widely used in continuous-process industries such as petrochemical plants, oil and gas processing, power generation, and heavy manufacturing facilities.
This module delivers accurate output signals to critical field devices, including control valves, actuators, and variable-speed drives. It is suitable for multi-loop and coordinated control systems, ensuring reliable execution of commands even under dynamic process conditions or rapidly changing loads.
Advantages
The AAI543-H61/K4A00 ensures stable and repeatable analog output, enhancing control loop performance and minimizing mechanical wear on connected devices. Its robust design provides reliable operation in harsh industrial environments.
The module features real-time diagnostics for each channel, allowing operators to quickly identify anomalies and perform preventive maintenance. Electrical isolation and internal noise suppression maintain signal integrity, while seamless integration with Yokogawa’s I/O platform ensures consistent behavior across system expansions.
