Brand:Woodward Item No.:CSC3GM1 Product Origin:USA Product Dimensions:260 × 180 × 80 mm Product Weight:1.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

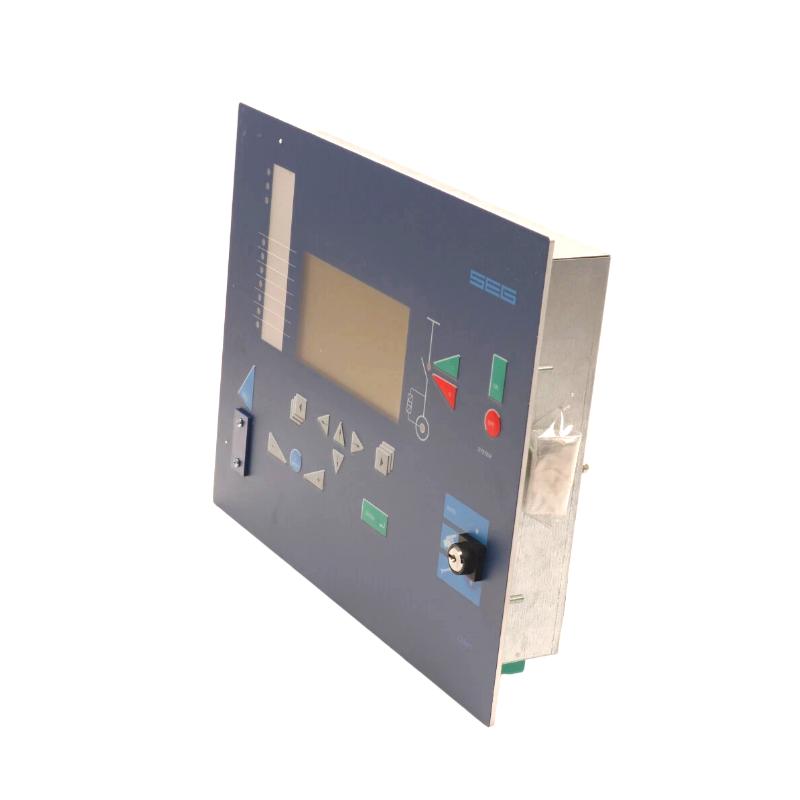

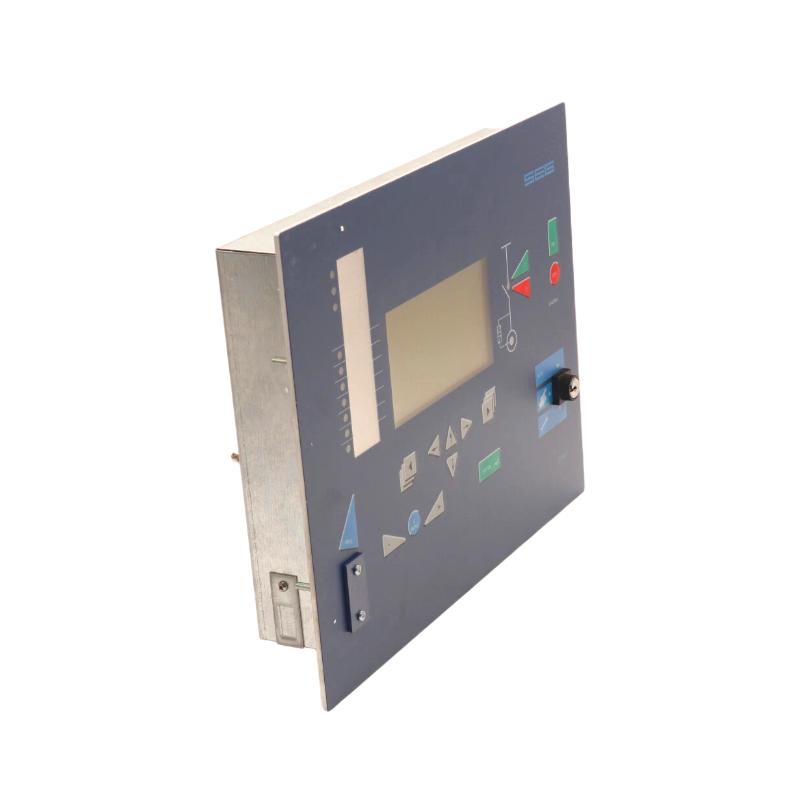

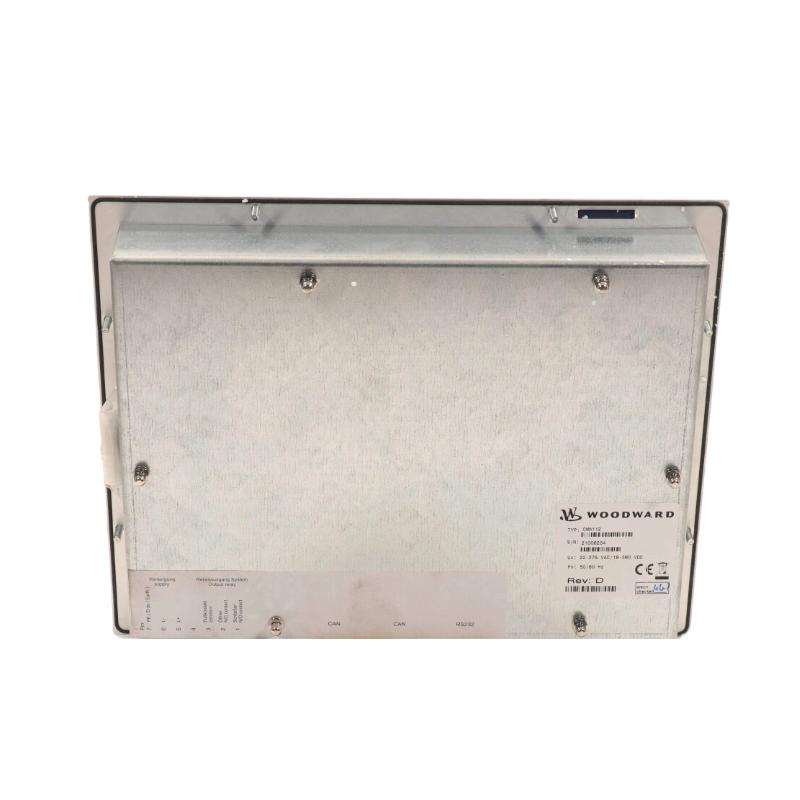

The Woodward CSC3GM1 Operation Panel delivers a reliable, intuitive interface for operators to monitor and control industrial engines and generator systems. Its rugged design, real-time feedback, and compatibility with Woodward modules make it essential for efficient and safe system operation in industrial, marine, and power generation environments.
Technical Specifications
Specification
Details
Module Type
Operation Panel
Functions
Monitoring, Parameter Adjustment, Fault Alerts
Communication
Ethernet, Digital Interfaces
Operating Voltage
12–24V DC
Operating Temperature
-20°C to 70°C
Protection Features
Overcurrent, Fault Detection
Mounting Options
Panel, Console
Dimensions (L x W x H)
260 mm x 180 mm x 80 mm
Weight
1.2 kg (2.65 lb)
Applications
The Woodward CSC3GM1 Operation Panel is designed to provide intuitive human-machine interaction for industrial engines, generators, and automated systems. It allows operators to monitor real-time system status, adjust parameters, and respond to alerts efficiently. Ideal for industrial plants, marine applications, and power generation networks requiring reliable, user-friendly control interfaces.
Advantages
Intuitive User Interface: Clear displays and accessible controls simplify system operation.
Real-Time Monitoring: Provides immediate feedback on system performance and alerts.
Rugged Design: Built to withstand industrial conditions including vibration and temperature variations.
Seamless Integration: Compatible with Woodward control modules, load sharing units, and digital speed controllers.
Flexible Installation: Supports panel or console mounting for operator convenience.
Technical FAQs
Q: What systems can the CSC3GM1 operate? A: Compatible with industrial engines, generators, and automated control systems.
Q: Does it provide real-time operational feedback? A: Yes, continuously monitors system parameters and alerts operators of changes.
Q: Can it integrate with other Woodward modules? A: Yes, fully compatible with ProAct, LinkNet, and other digital control modules.
Q: Is it suitable for harsh industrial environments? A: Yes, rated for -20°C to 70°C and designed to resist vibration and shock.
Q: What mounting options are available? A: Supports panel or console mounting for easy operator access.
Q: Can firmware be updated in the field? A: Yes, firmware can be updated securely without system downtime.
Q: What communication interfaces are supported? A: Ethernet and digital interfaces enable full integration with networked systems.
Q: Does it include protection features? A: Yes, provides overcurrent and fault detection to protect connected equipment.
Q: What is the operating voltage? A: Operates on 12–24V DC.
Q: Can it be used in multi-panel setups? A: Yes, it integrates seamlessly with other operation panels for expanded monitoring capabilities.
