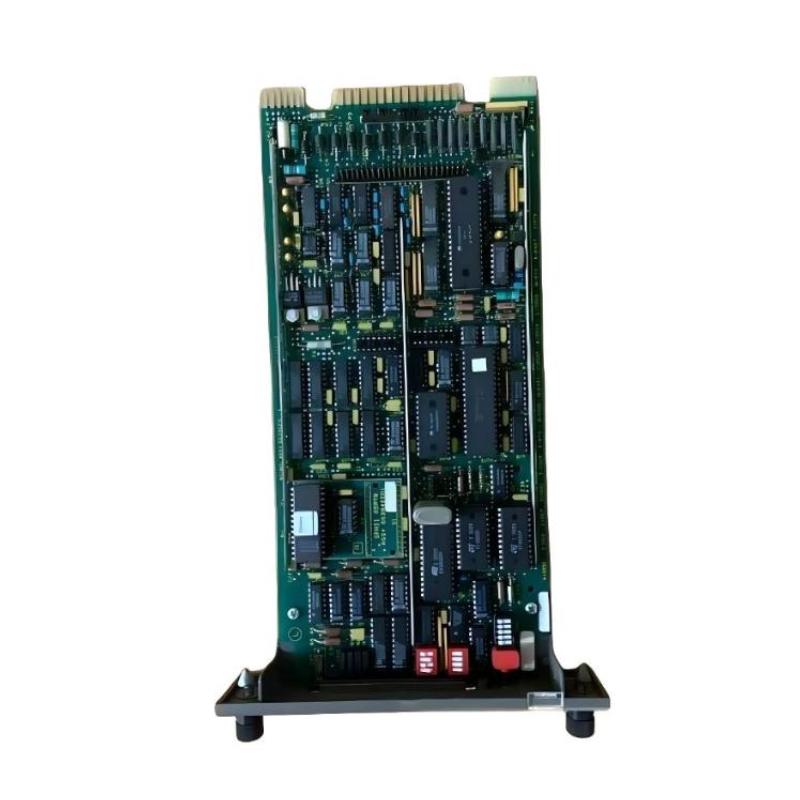

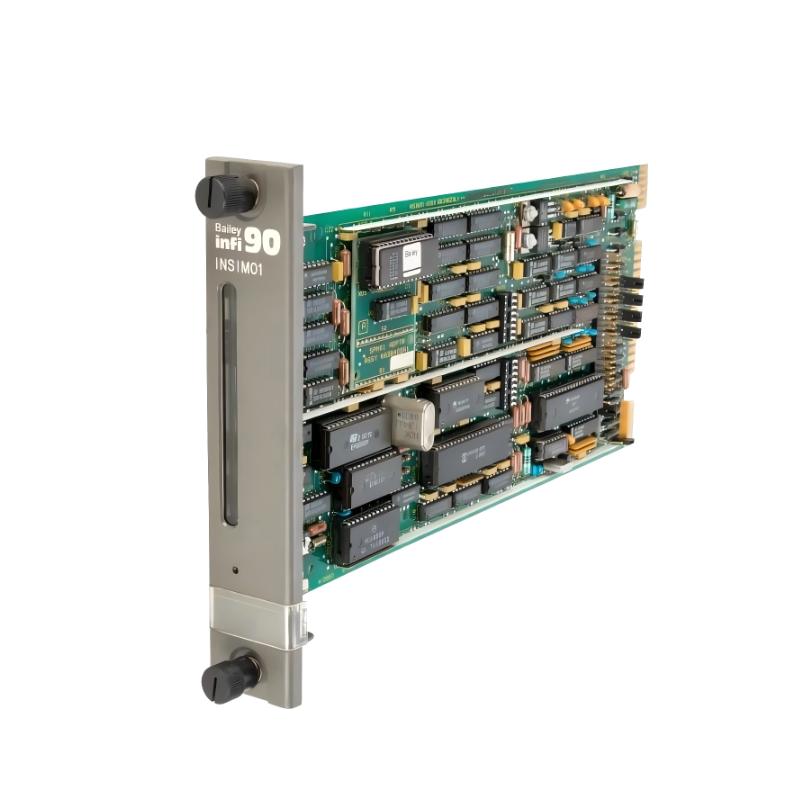

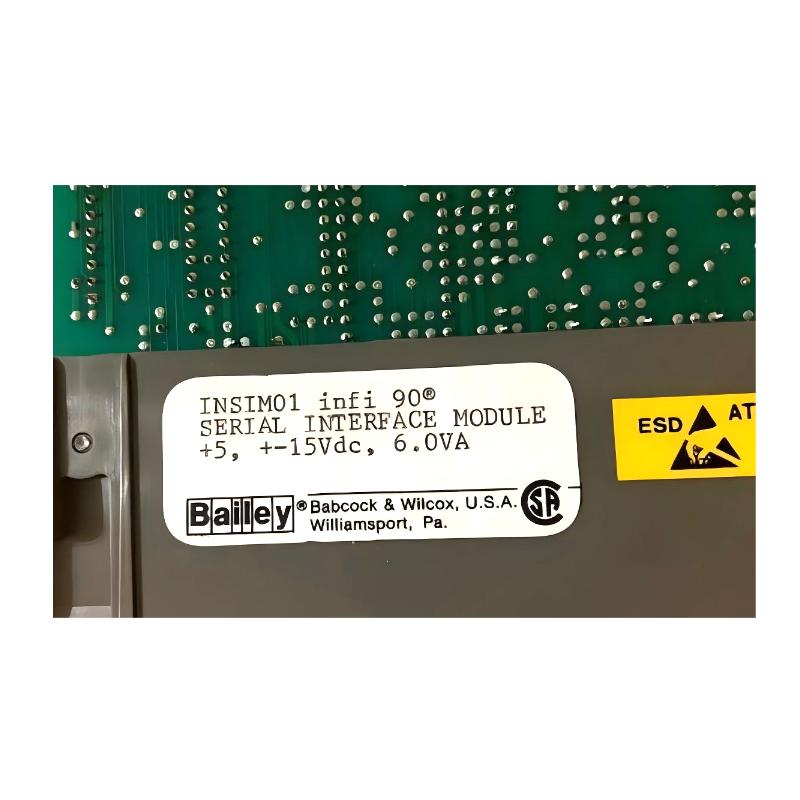

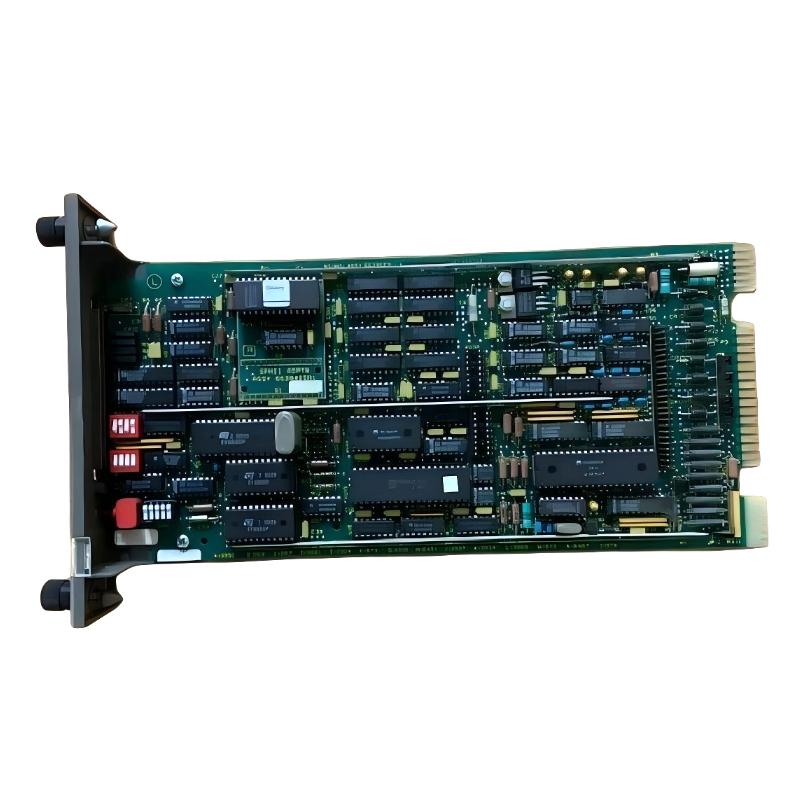

Name: ABB Bailey INSIM01 Serial Interface Module
Brand: ABB Bailey
SKU: 9832
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The ABB Bailey INSIM01 Serial Interface Module provides robust serial communication capabilities for ABB Bailey Modular RTU systems. Its compact and lightweight design allows easy installation in RTU racks or control panels, while its industrial-grade construction ensures reliable operation. The module supports RS-232 and RS-485 serial protocols, facilitating integration of legacy field devices, external controllers, and distributed equipment into centralized RTU networks, enabling efficient monitoring and control of industrial processes.

Technical Specifications

Parameter	Specification
Module Type	Serial Interface Module
Dimensions (L×W×H)	230 × 115 × 25 mm
Weight	0.35 kg / 0.77 lb
Communication Protocols	RS-232 / RS-485
Channels	Configurable via RTU system
Operating Temperature	0°C to 60 °C
Storage Temperature	-20°C to 70 °C
Mounting	Modular RTU Rack / Control Panel
Compatibility	ABB Bailey Modular RTU Systems

Applications

The ABB Bailey INSIM01 Serial Interface Module is designed to provide reliable serial communication for ABB Modular RTU systems. It enables seamless connectivity between RTUs and field devices, supporting industrial automation, utilities, and process control applications. The module is ideal for integrating legacy devices, external controllers, and distributed equipment into a centralized control network.

Advantages

Reliable Serial Communication: Supports RS-232 and RS-485 protocols for versatile device connectivity.
Compact & Lightweight: 230 × 115 × 25 mm and 0.35 kg / 0.77 lb, easily installed in RTU racks or control panels.
Industrial-Grade Durability: Designed for long-term operation in harsh industrial environments.
Seamless RTU Integration: Fully compatible with ABB Bailey Modular RTU systems.
Legacy Device Support: Enables communication with older field devices while maintaining centralized control.

Technical FAQs

What serial protocols does INSIM01 support?
Supports RS-232 and RS-485 for flexible device integration.
Can it communicate with multiple devices simultaneously?
Yes, supports multi-drop configurations for networked serial devices.
Is it compatible with all ABB RTU modules?
Yes, designed for full integration with ABB Bailey Modular RTU systems.
Does it provide diagnostic feedback?
Yes, port status and communication errors are reported to the RTU controller.
Is it suitable for continuous industrial operation?
Yes, built to perform reliably in industrial environments.
Can it be installed remotely from the CPU?
Yes, suitable for flexible mounting in RTU racks or control cabinets.
Does it require additional configuration software?
Minimal configuration is required and managed via the RTU system.
Can it handle high-speed serial communication?
Yes, designed for accurate and reliable data transfer.
What is the expected operational lifespan?
Over 10 years of dependable industrial-grade performance.
Is it suitable for critical automation networks?
Yes, ensures reliable serial communication for monitoring and control applications.
